Mercedes Benz Truck
>>
2008
>>
ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - HVAC
>>
Ambient Temperature Sensor / Switch HVAC
>>
Service and Repair
Ambient Temperature Sensor / Switch HVAC: Service and Repair
AR83.70-P-5975GZ Remove/Install Temperature Sensor

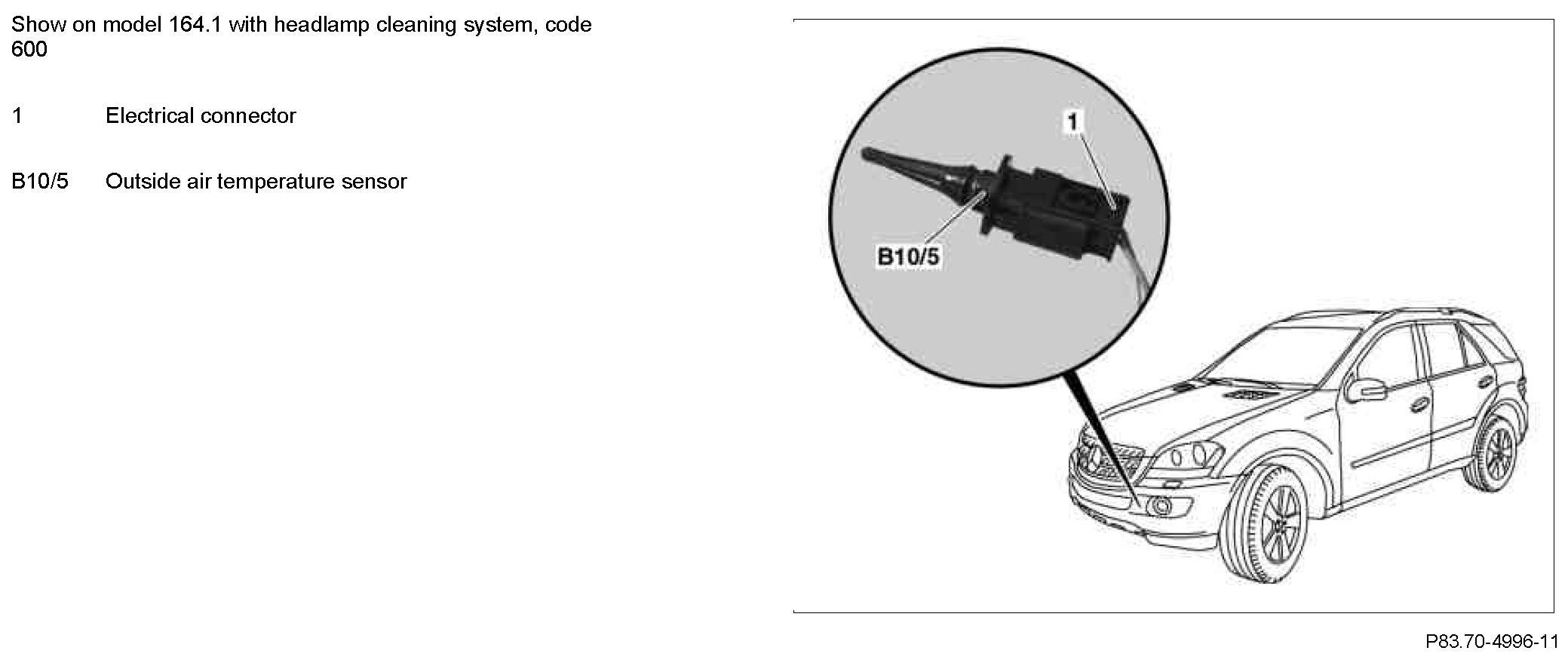

Component Identification:

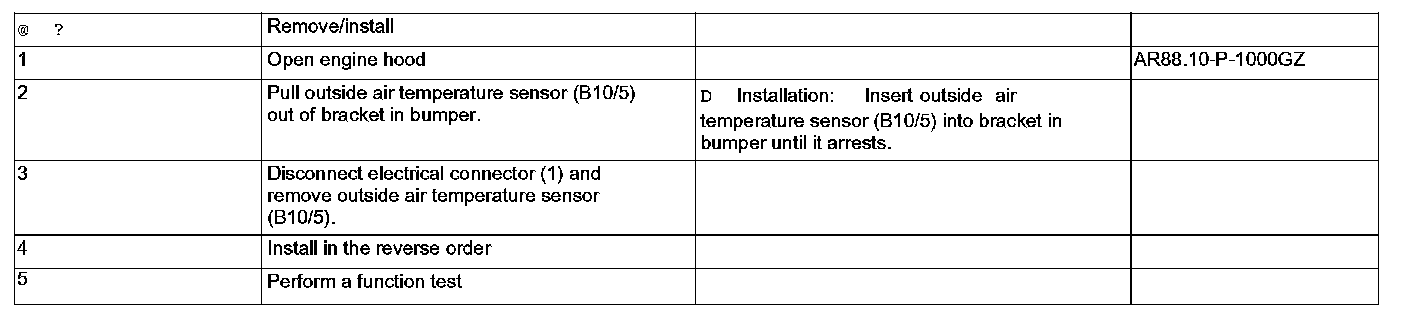

Steps 1 - 5:
