Ambient Temperature Sensor / Switch HVAC: Description and Operation

GF83.57-P-4002GZ Outside Temperature Display Temperature Sensor, Component Description

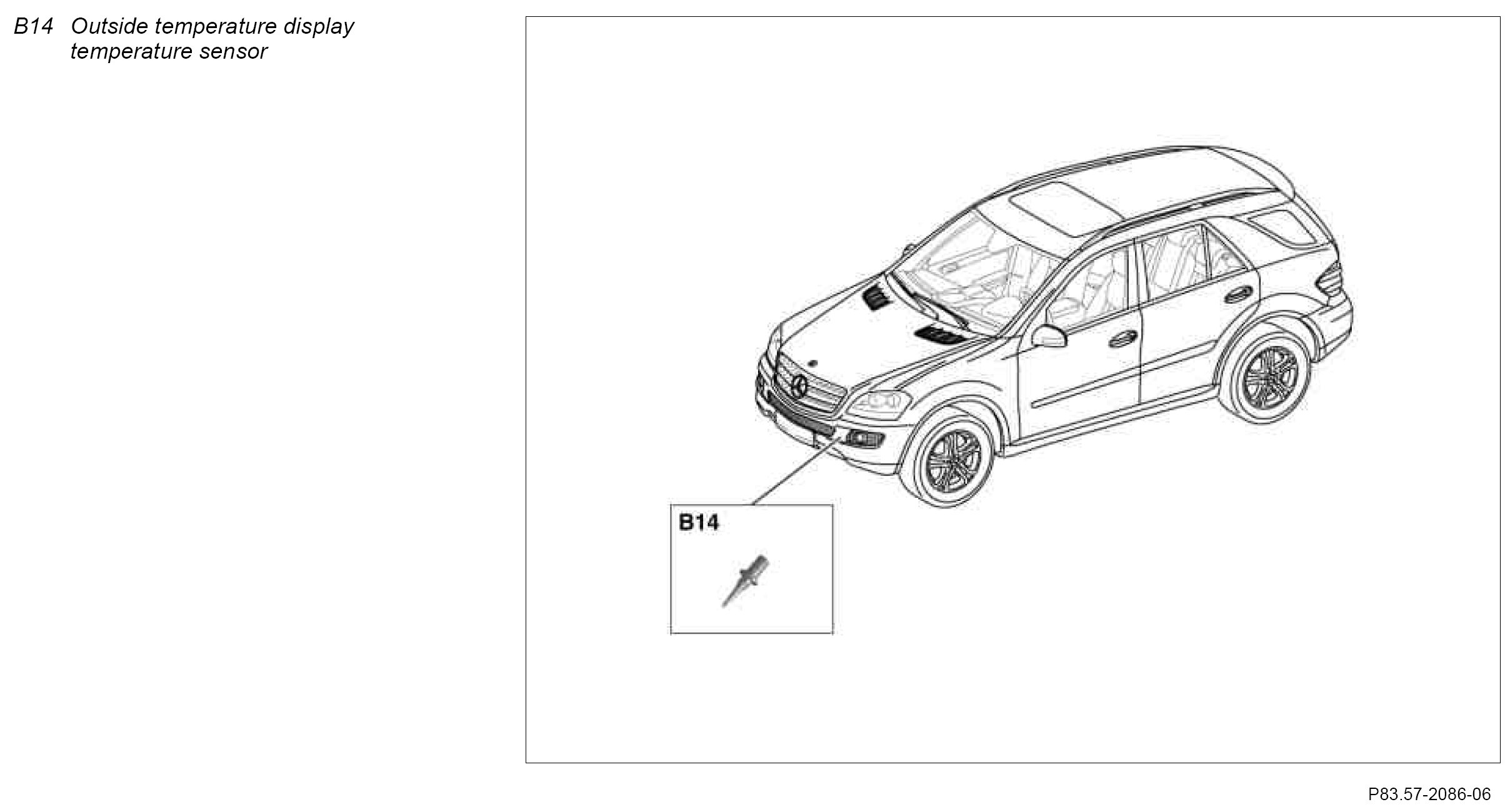

Component Identification:

Location
The temperature sensor is located on the left front bumper.

Task
To record the outside temperature.

Function
The temperature sensor changes its resistance depending on the outdoor temperature. It is read in by the instrument cluster (A1) and the reading is indicated on the multifunction display (A1p13).
