GF30.20-P-2100GT Component Description For the CC [TPM] Switch

GF30.20-P-2100GT Component Description For The CC [TPM] Switch
- with CODE (219) Distronic (DTR)
- except CODE (491) USA version
- up to model year 08

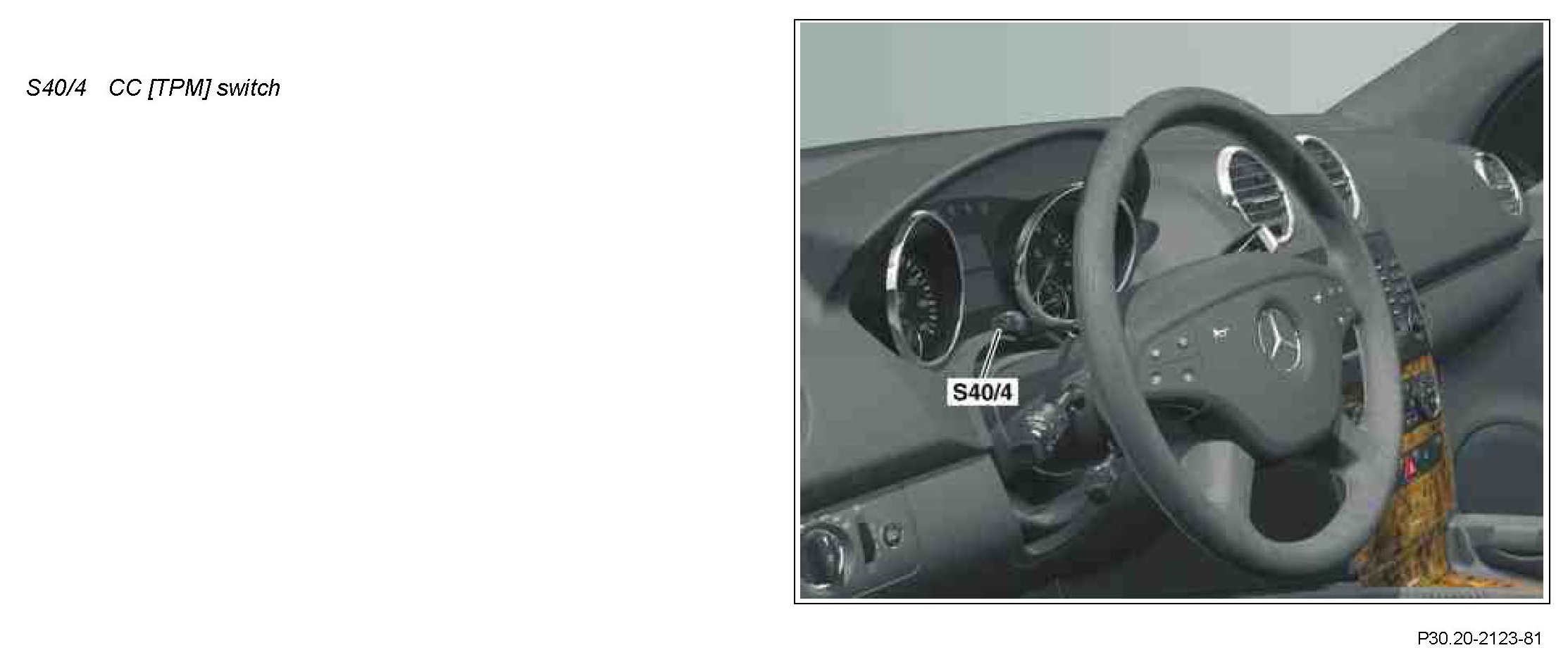

Location

Component Identification:

The CC [TPM] switch is located at the top left of the steering column.

Task
The CC [TPM] switch has the following tasks:
^ Activation/deactivation of the DISTRONIC functions and the Variable Speed Limiter
^ Increase or decrease setting/nominal speed in 1 km/h or in 10 km/h steps (two-stage) for DISTRONIC and Downhill Speed Regulation
^ Set target proximity for DISTRONIC

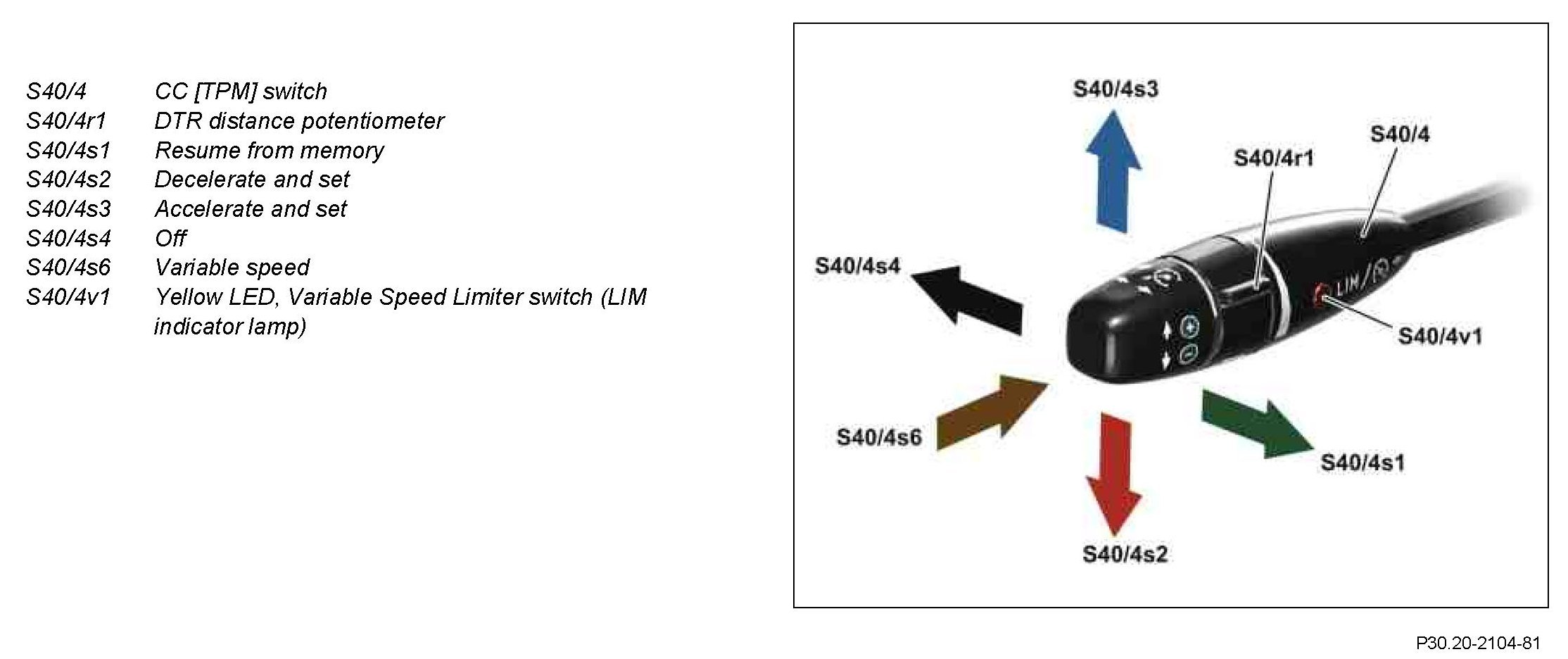

Design

Component Identification:

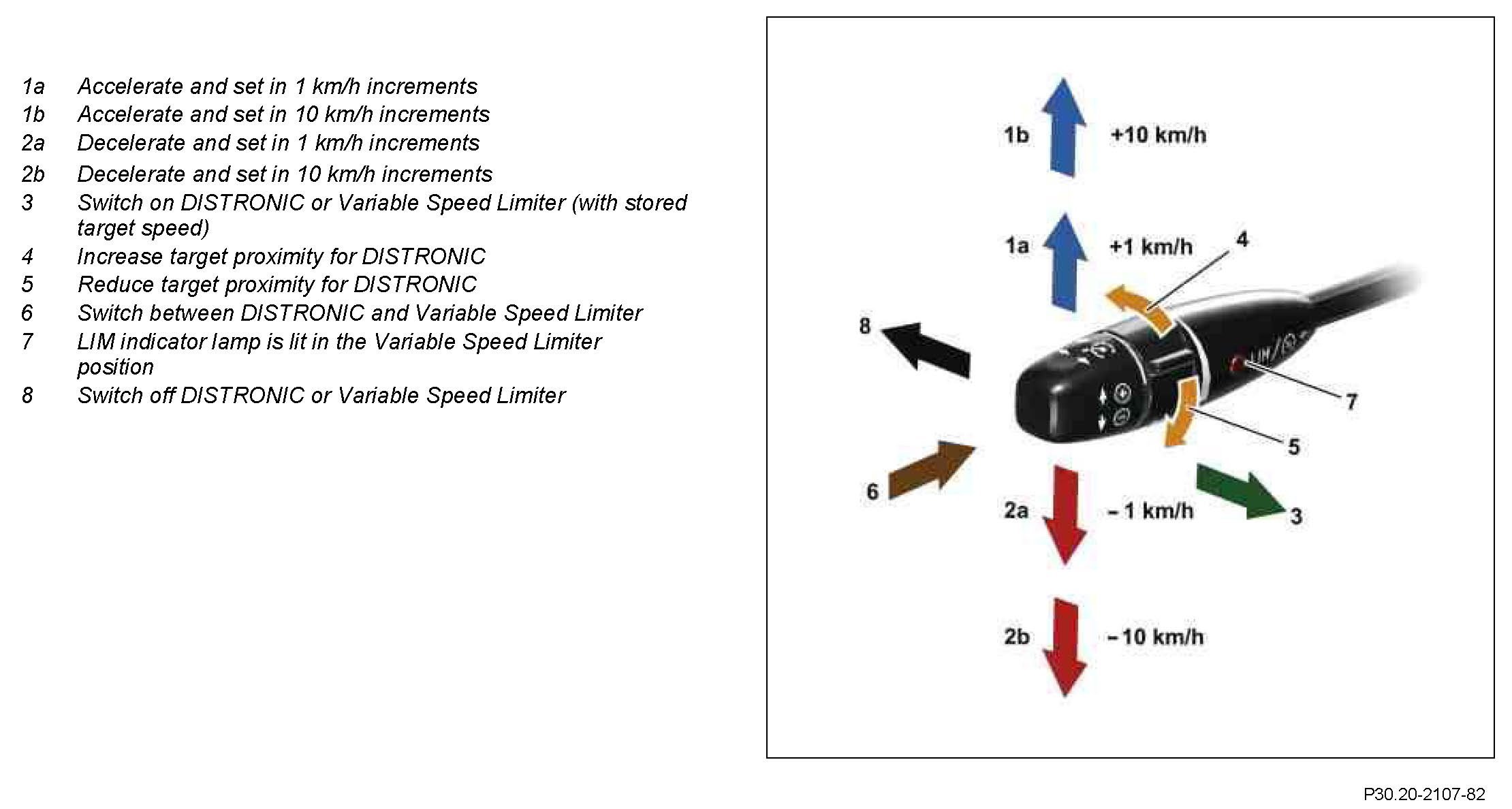

Function

Component Identification:

When the CC [TPM] switch is operated, two switching contacts are always activated simultaneously. The actual input takes place by closing the switching contacts (storing the target speed). The safety contact (S40/4s5) must close simultaneously so that the entry is accepted.

The DISTRONIC distance potentiometer allows the driver to adjust the target distance to the preceding vehicle to suit his/her own personal taste.
The setting range of the target distance is divided into six increments and is approx. 1.0 s to 2.0 s depending on vehicle speed.
Within this setting range the legally prescribed minimum distance is always guaranteed.

The CC [TPM] switch signals are read in by the steering column module (N80) and transmitted via the drive CAN to the ESP control unit (N47-5) for evaluation.
