Body - Updated DISTRONIC(R) Base Plate Installation Info
Date: September 3, 2009Order No: T-B-30.30/66
Group: 30
Subject
Models 164.1 up to 448514 with Code 219 Distronic (DTR) Except Code 809 except MY2009
Adapting the Radiator Grille to the Distronic Base Plate
The DISTRONIC base plate no longer fits in the cutout of the radiator grille as it has been redesigned. Therefore, the radiator grille must be adapted to the DISTRONIC base plate. Note the trimming required to the parts listed in the illustrations below.
Parts Information

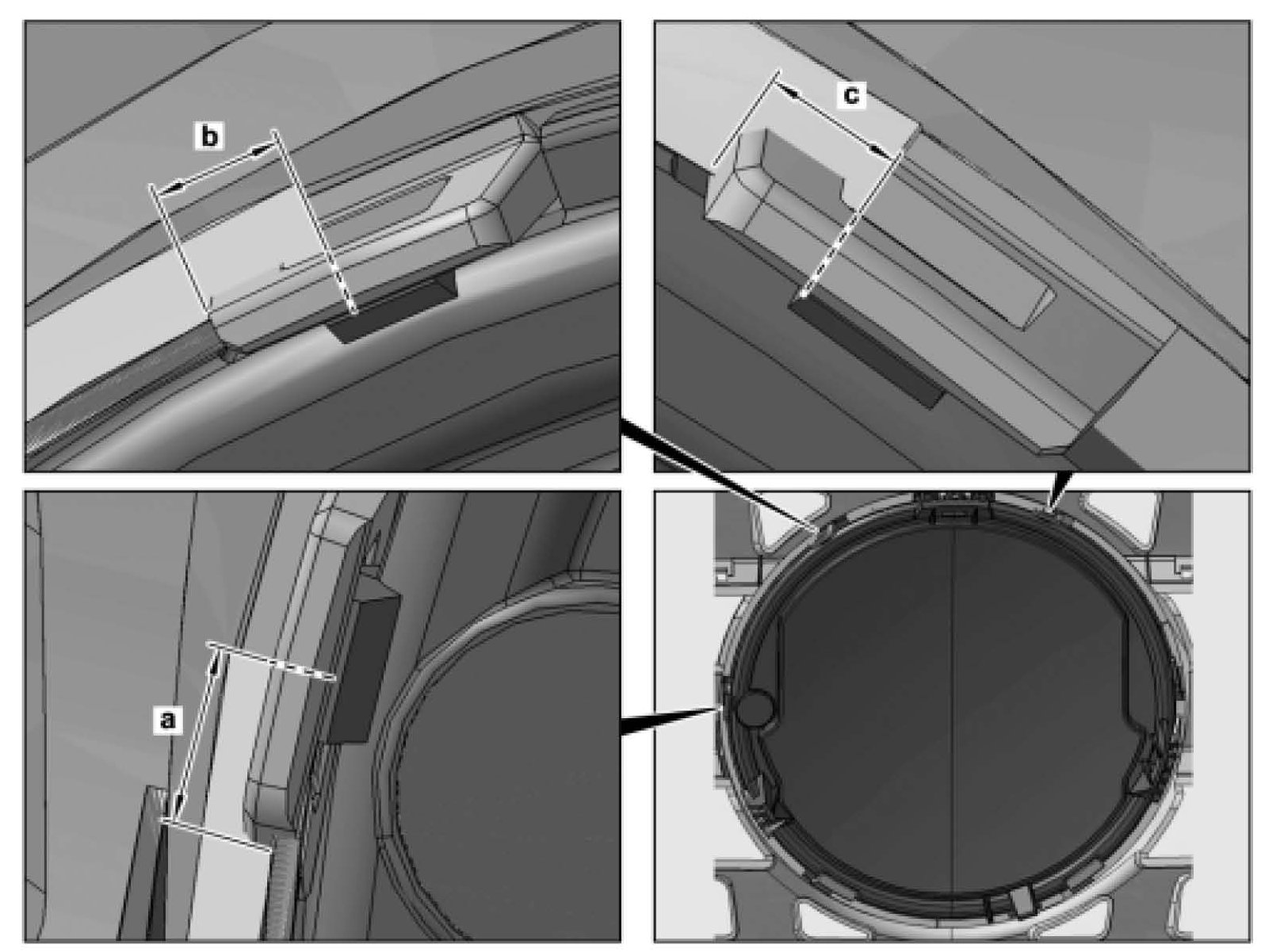

Trimmed section of radiator grille
a 10 mm
b 6 mm
c 6 mm
Trimmed section of radiator grille
d 10 mm
e 10 mm
f 10 mm
