AR32.32-P-0500GZ Remove/Install Suspension (ADS) Control Unit



AR32.32-P-0500GZ Remove/install suspension (ADS) control unit
- with CODE (489) Airmatic (air suspension with level adjustment and adaptive damping system ADS)

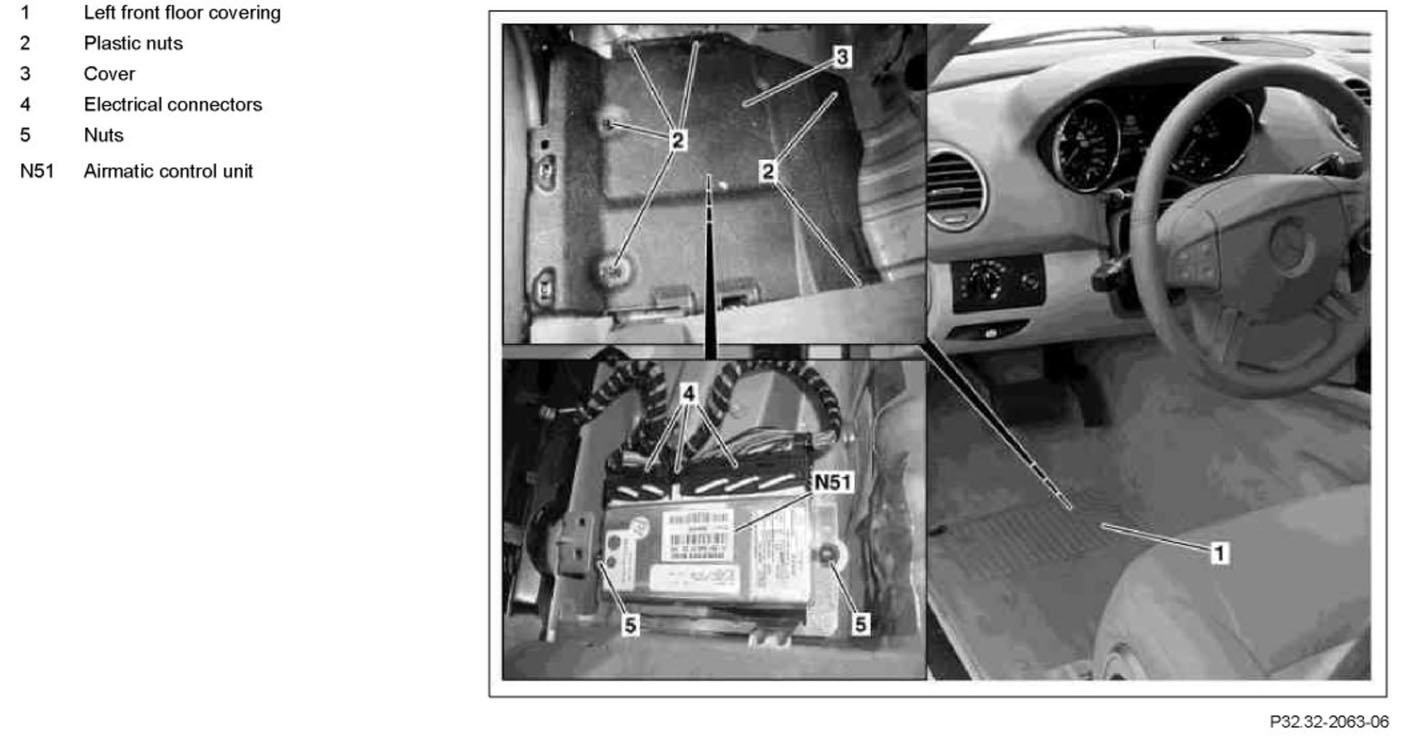

Component Identification:

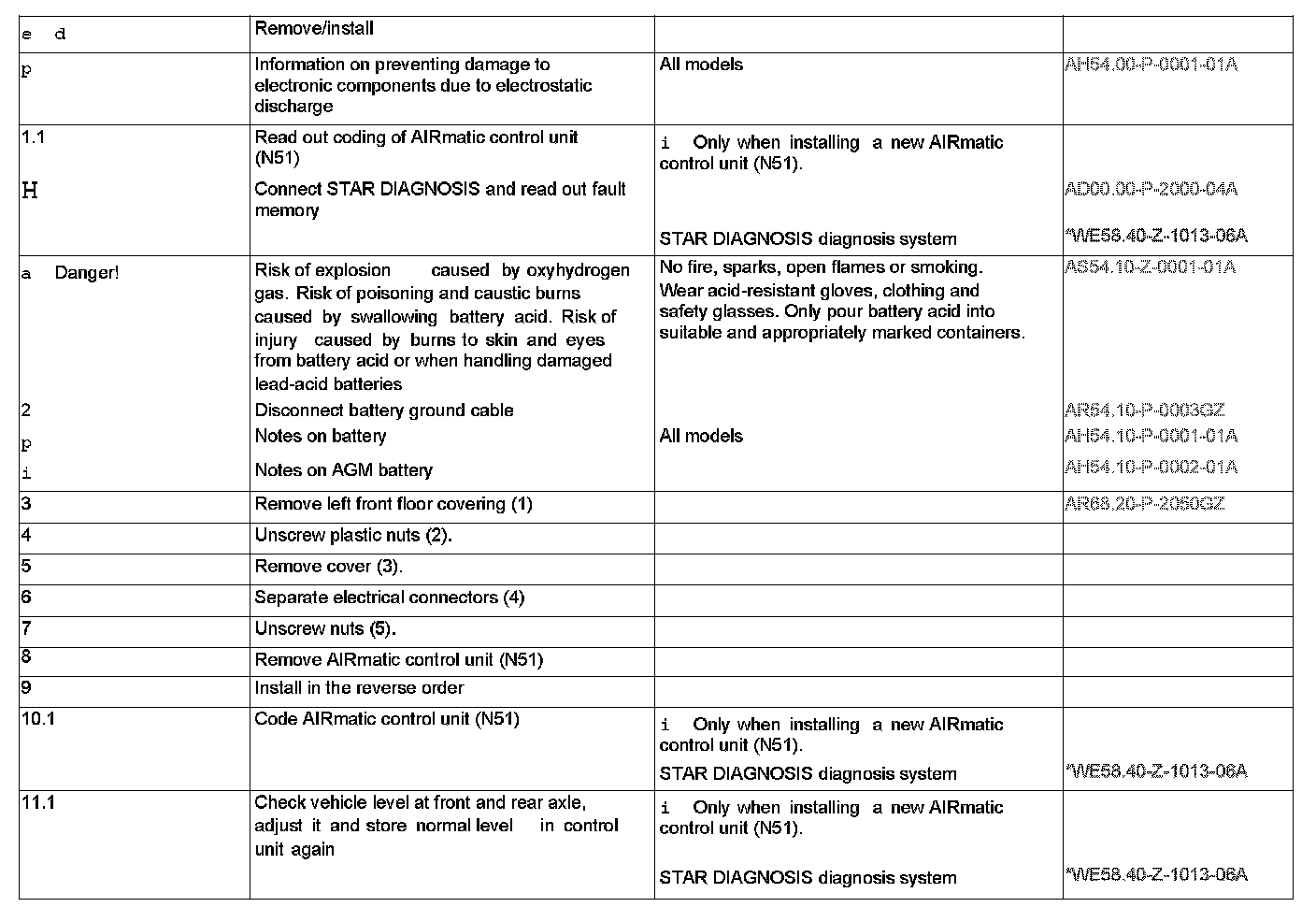

Steps 1.1-11.1:




Workshop equipment/MB testers:
