Mercedes Benz Truck
>>
2008
>>
ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Fuel Delivery and Air Induction
>>
Fuel Pump Relay
>>
Locations
Fuel Pump Relay: Locations
Fuel Pump Relay Module

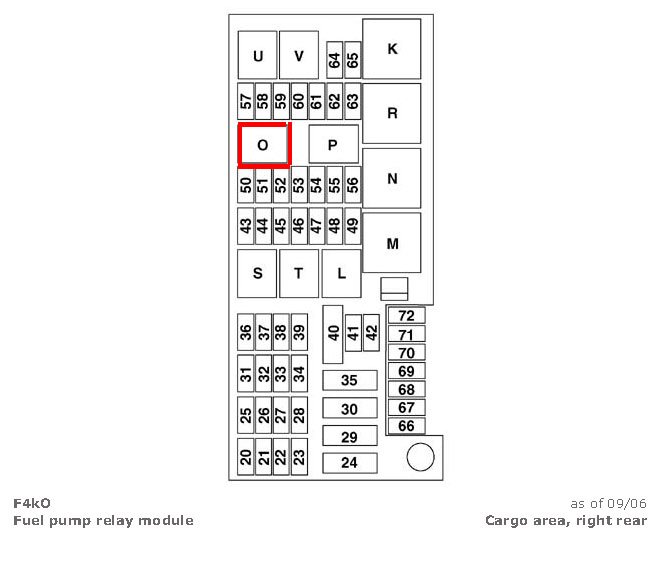

Fuel Pump Relay Module (View 1):

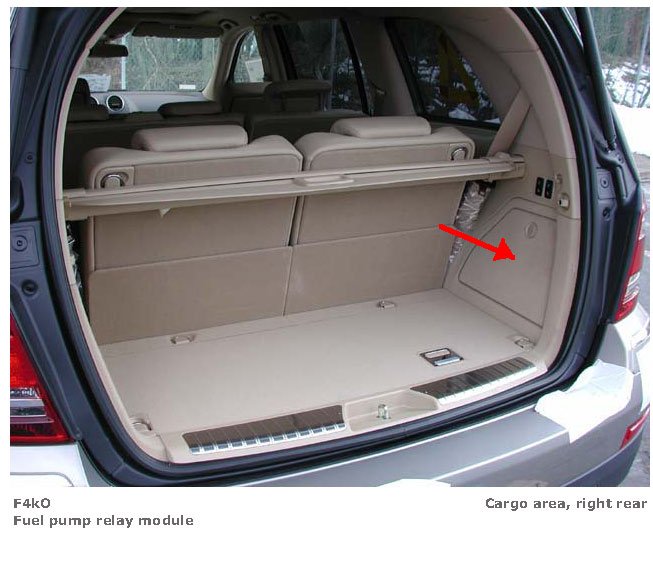

Fuel Pump Relay Module (View 2):

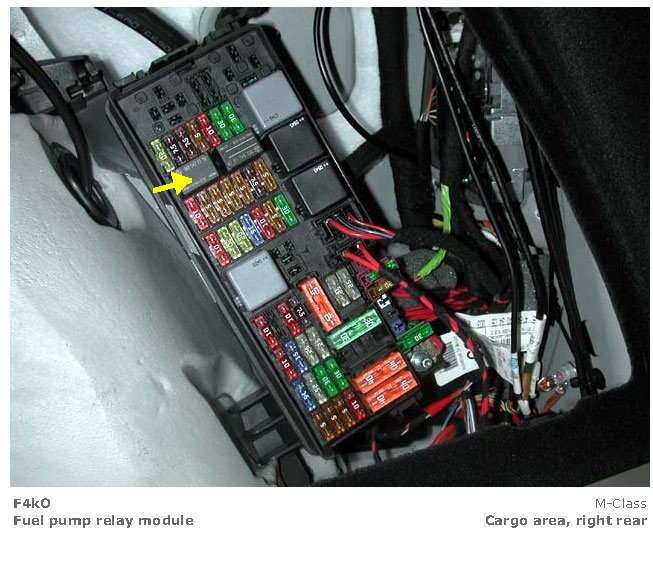

Fuel Pump Relay Module (View 3):

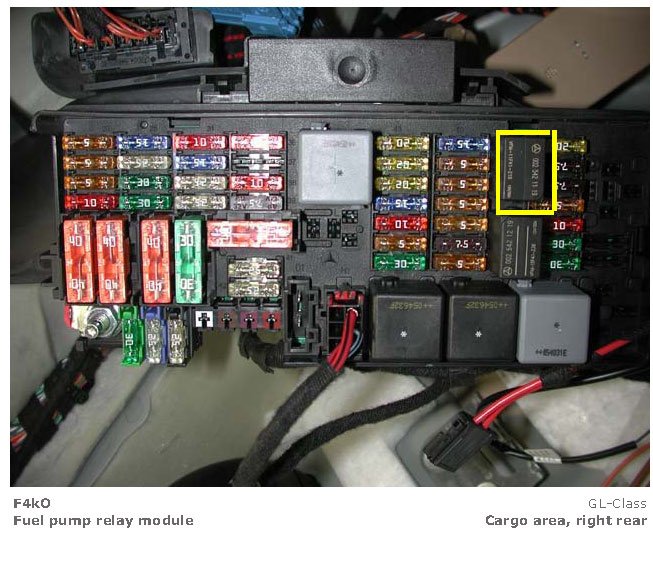

Fuel Pump Relay Module (View 4):

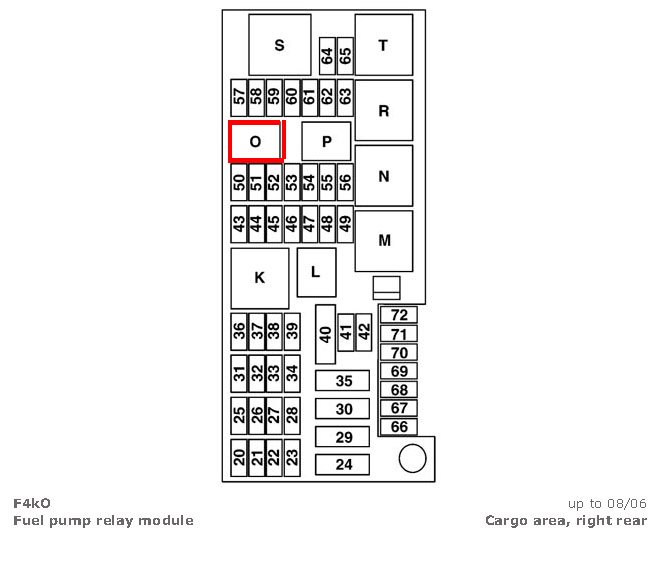

Fuel Pump Relay Module (View 5):
