Horn Relay: Locations



Fanfare Horn Relay

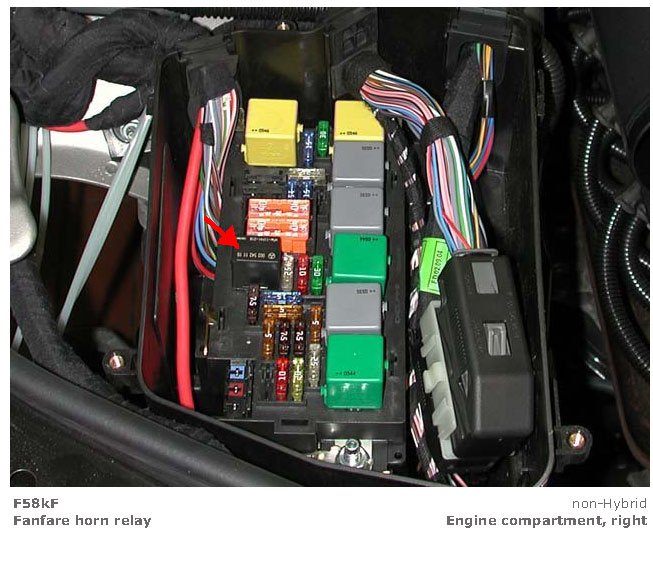

Fanfare Horn Relay (View 1):

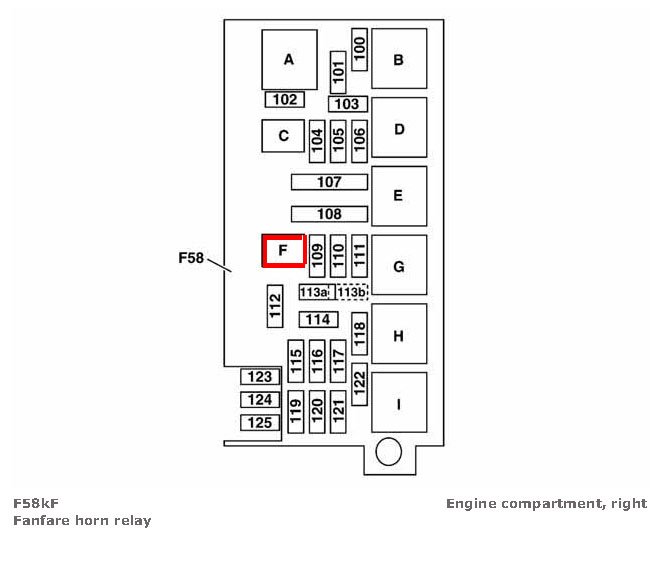

Fanfare Horn Relay (View 2):

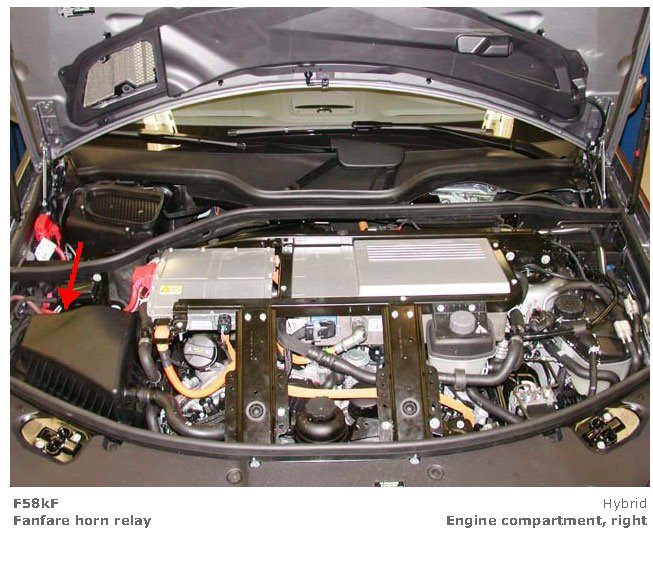

Fanfare Horn Relay (View 3):

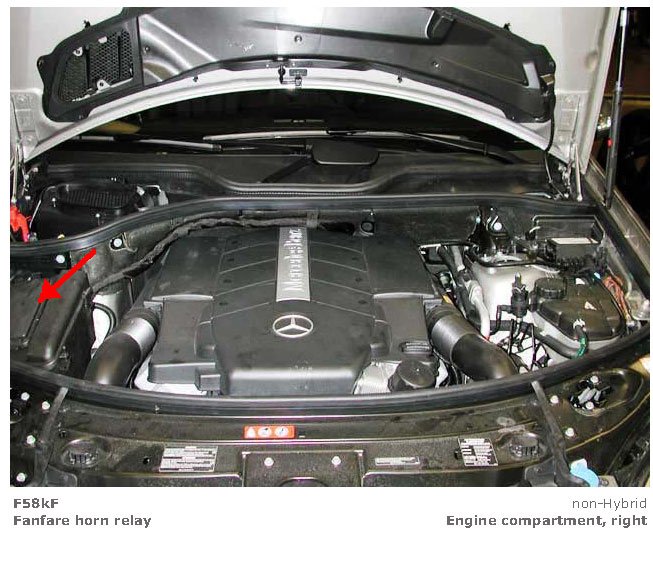

Fanfare Horn Relay (View 4):

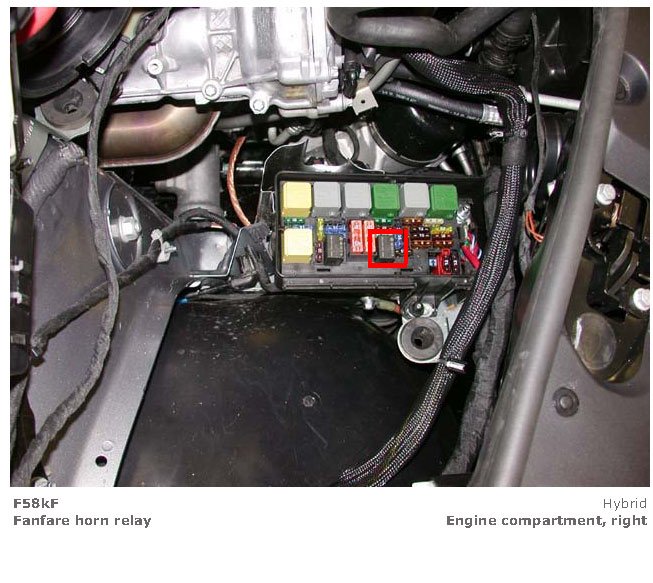

Fanfare Horn Relay (View 5):

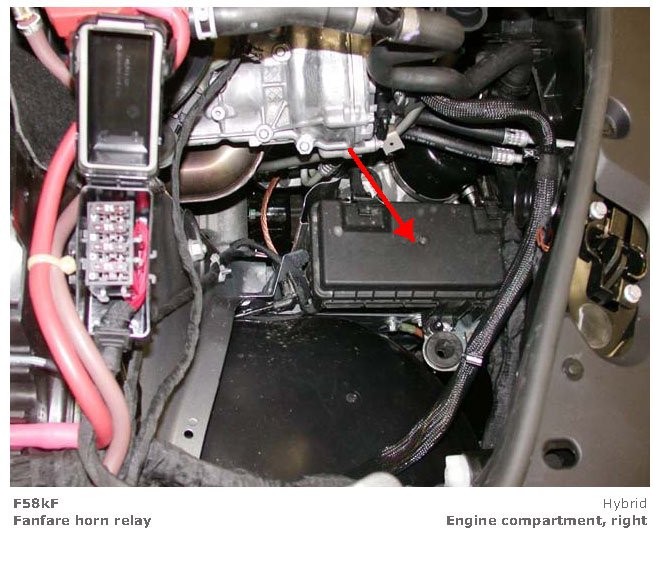

Fanfare Horn Relay (View 6):
