AR82.10-P-4081GZ Remove/Install Headlight Beam Adjustment Control Unit



AR82.10-P-4081GZ Remove/Install Headlight Beam Adjustment Control Unit

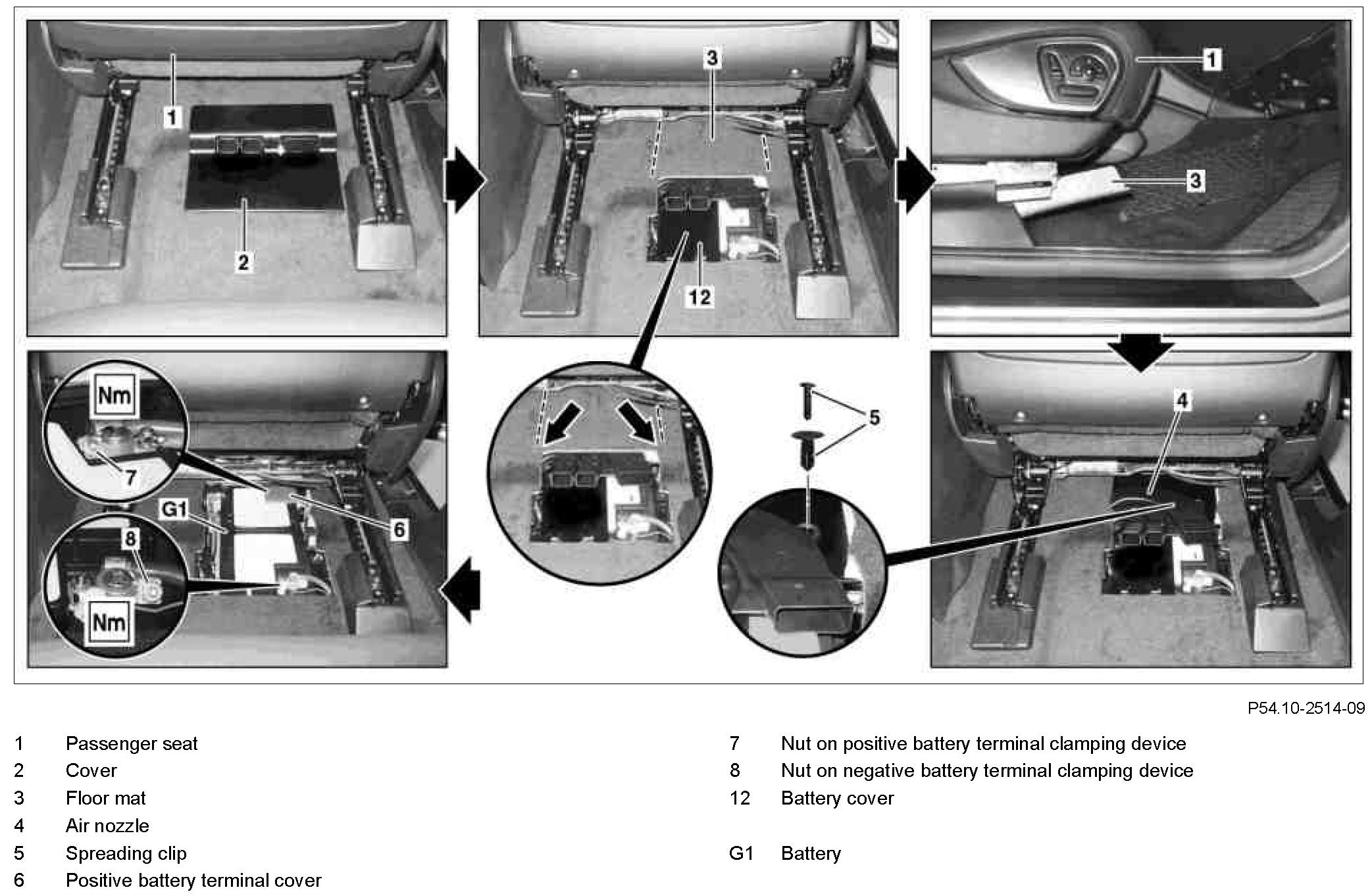

Component Identification:

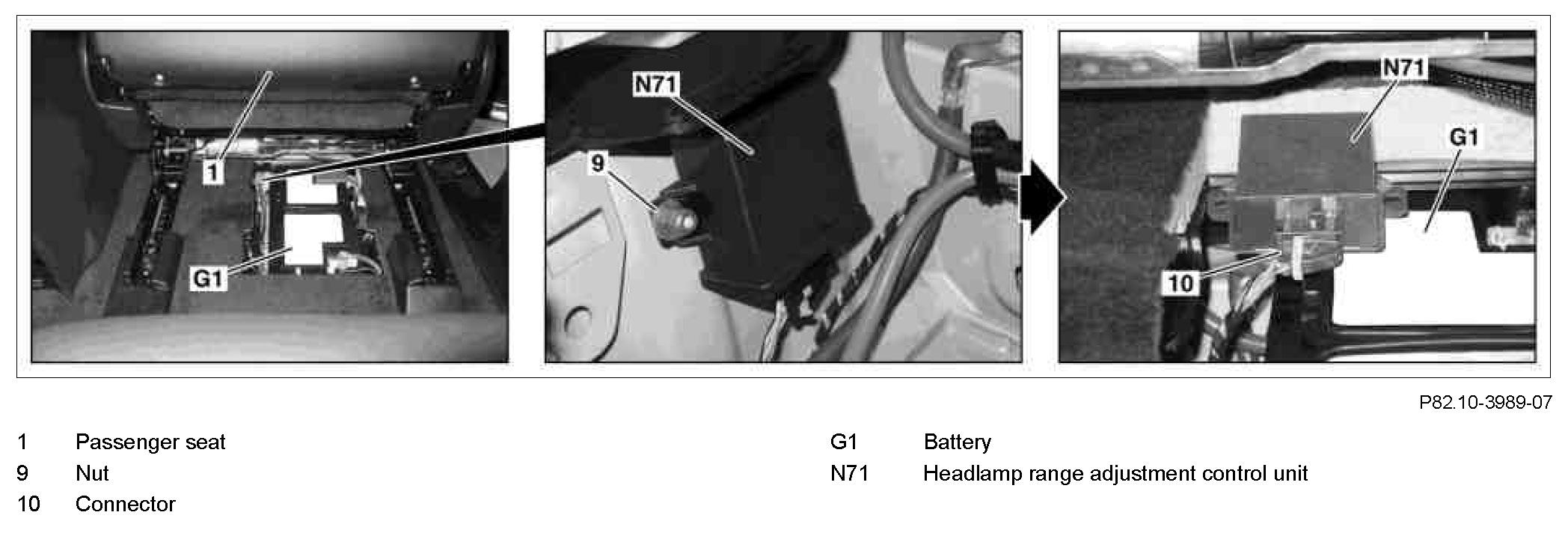

Component Identification:

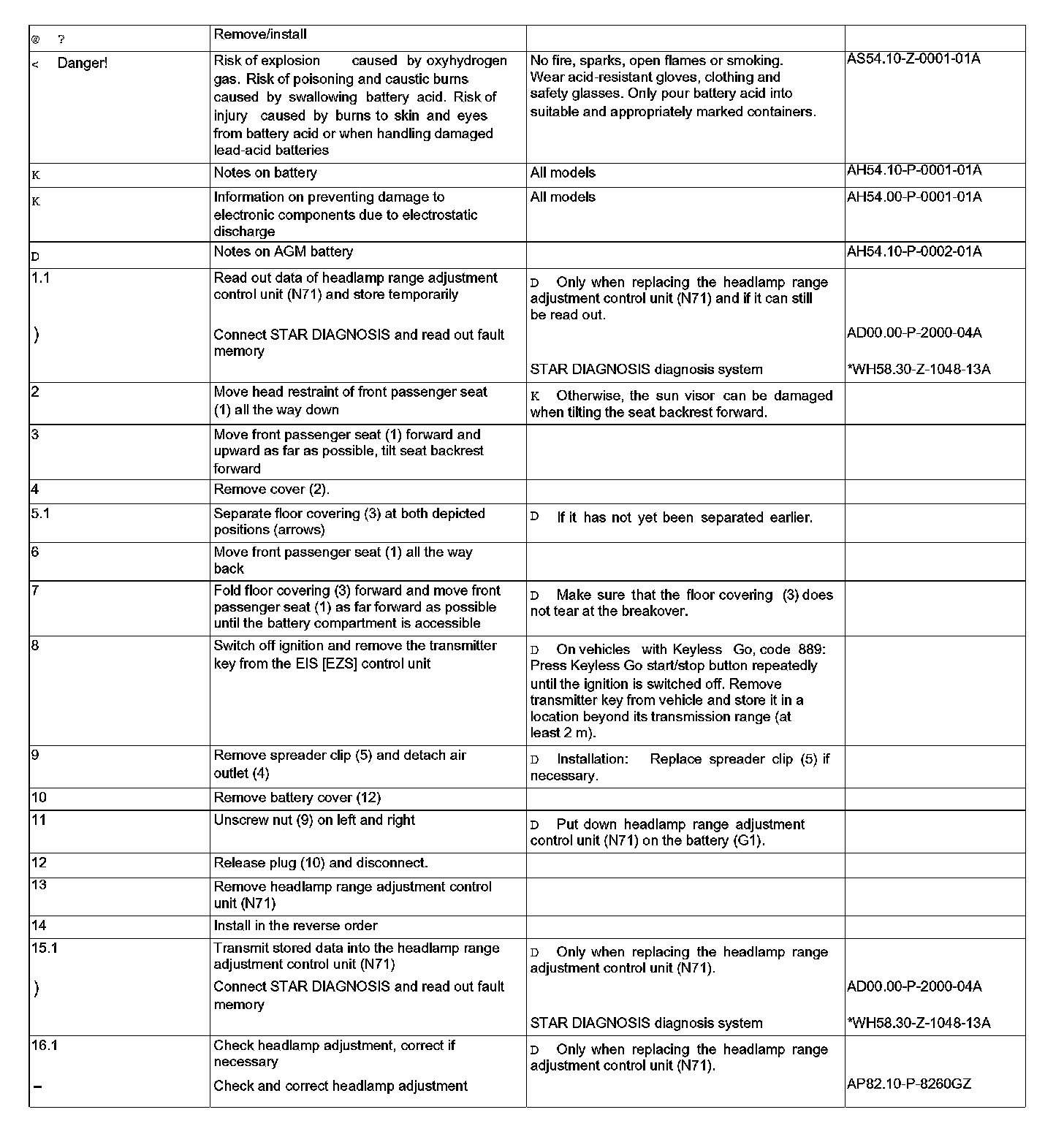

Steps 1 - 16.1:

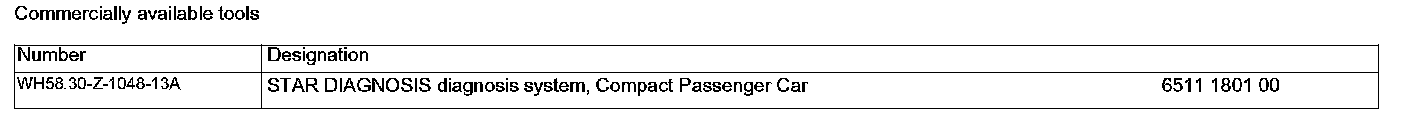

Commercially Available Tools:
