AR54.65-P-0025GZ Remove/Install Backup Camera Control Unit



AR54.65-P-0025GZ Remove/Install Backup Camera Control Unit
- with CODE (218) Backup camera

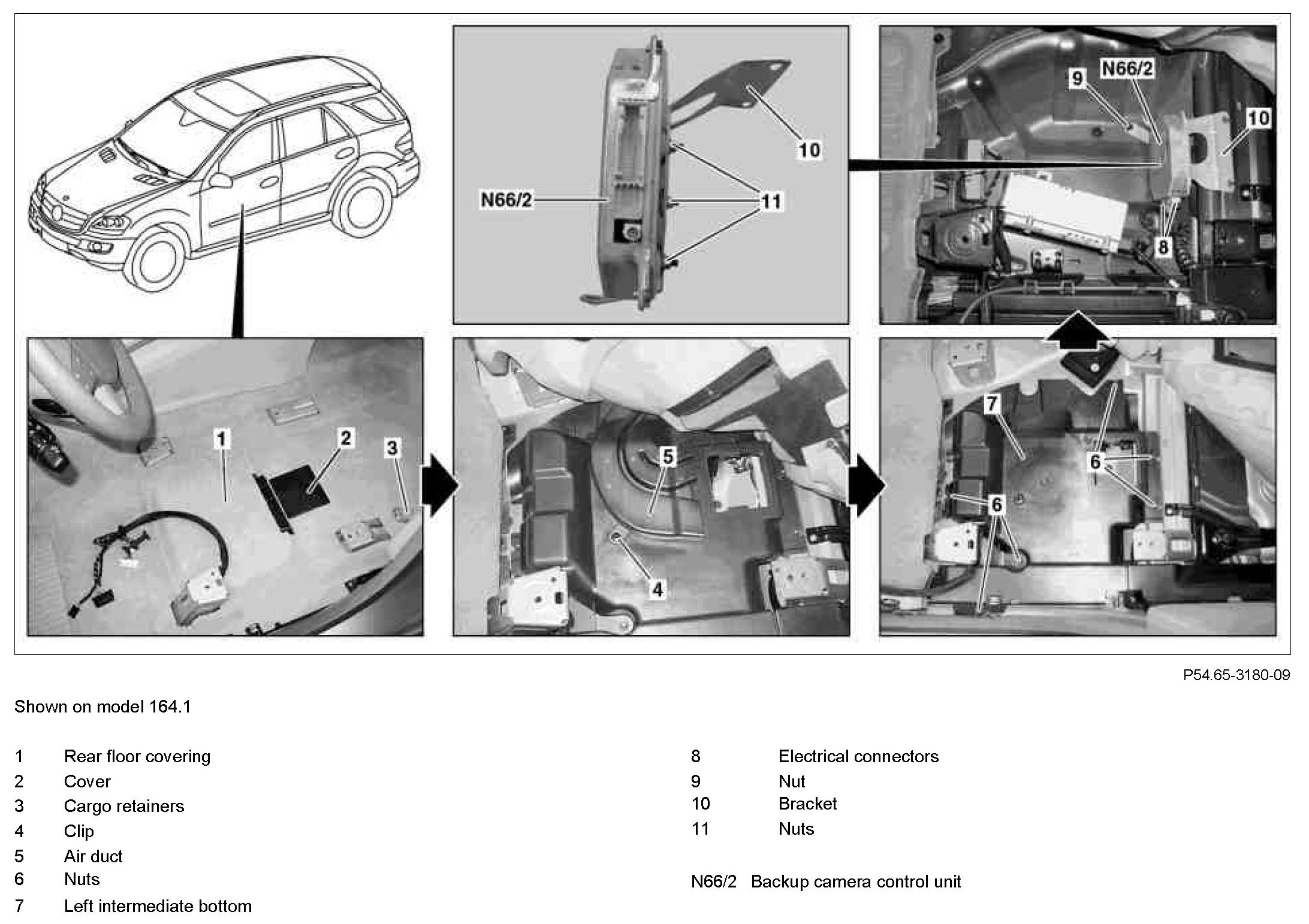

Component Identification:

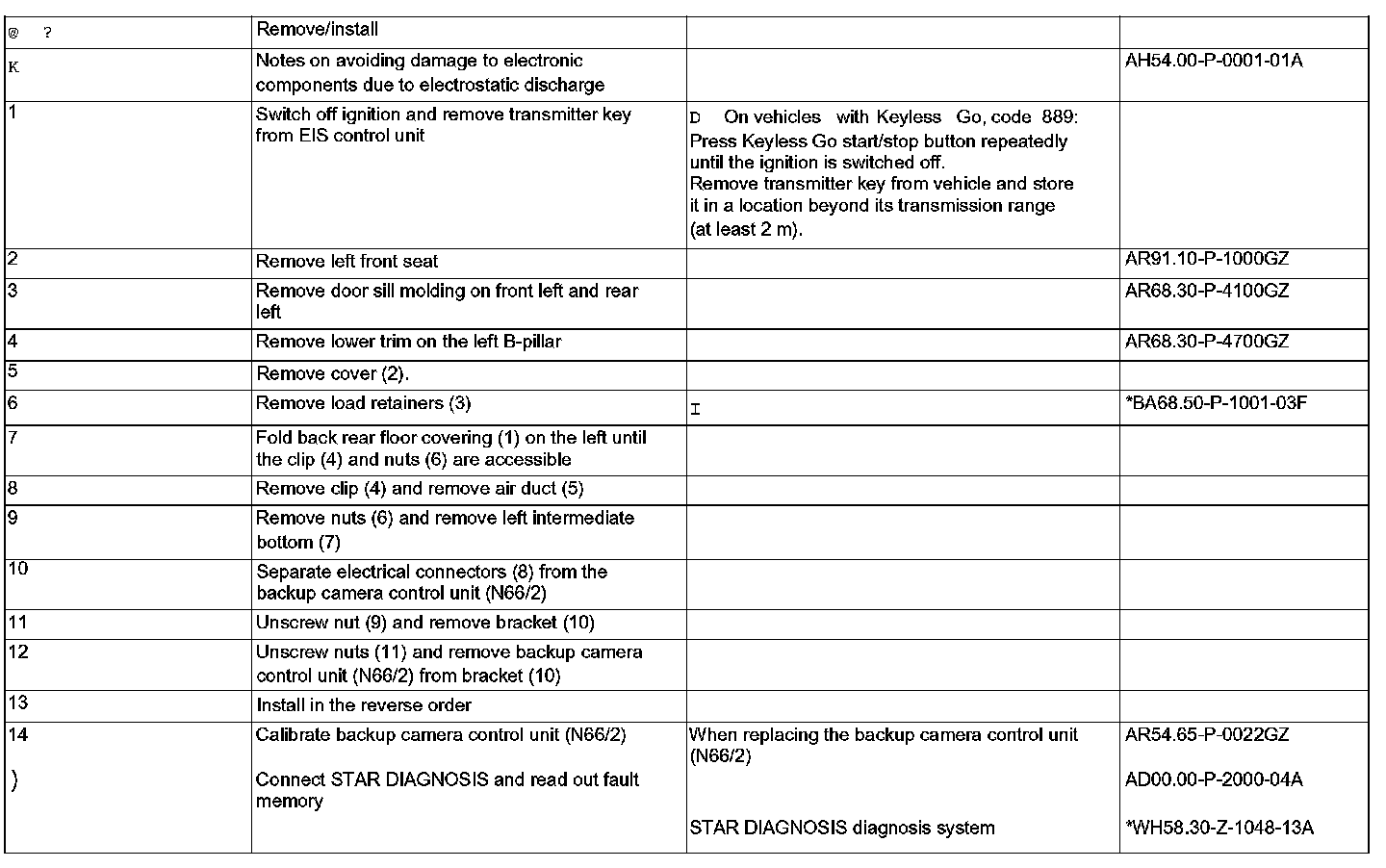

Steps 1 - 14:

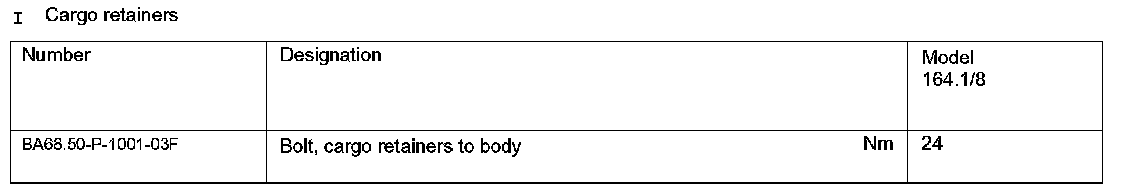

Cargo Retainers:

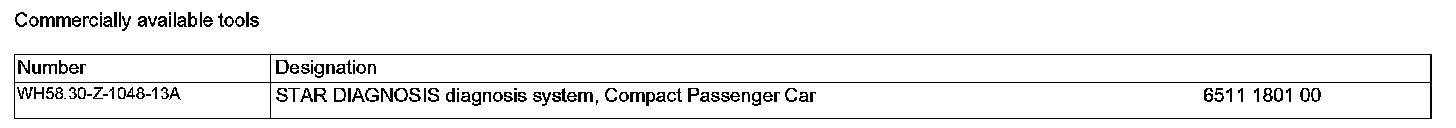

Commercially Available Tools:
