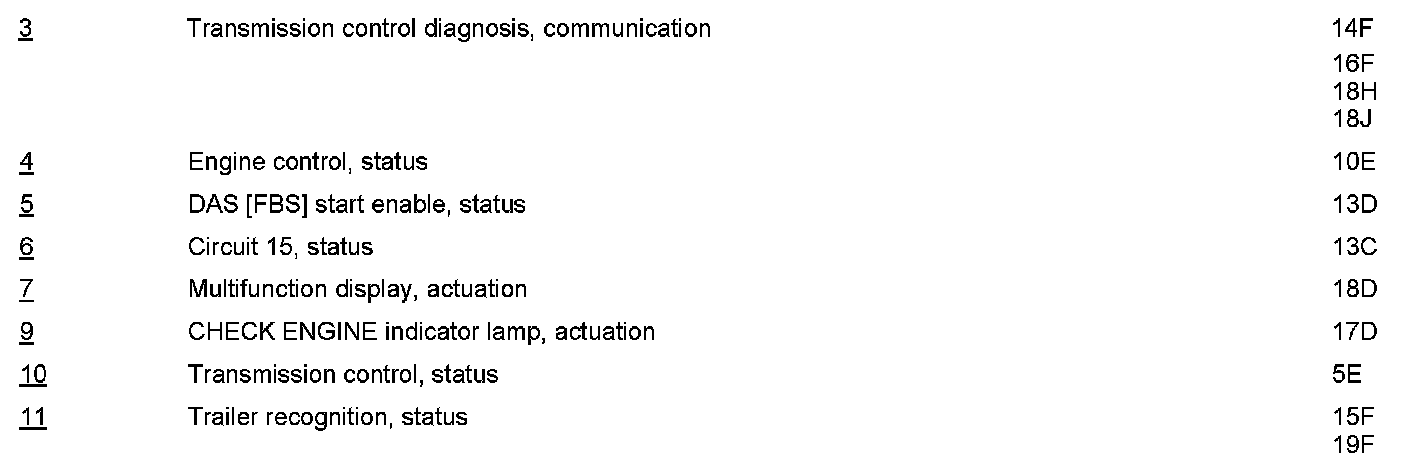

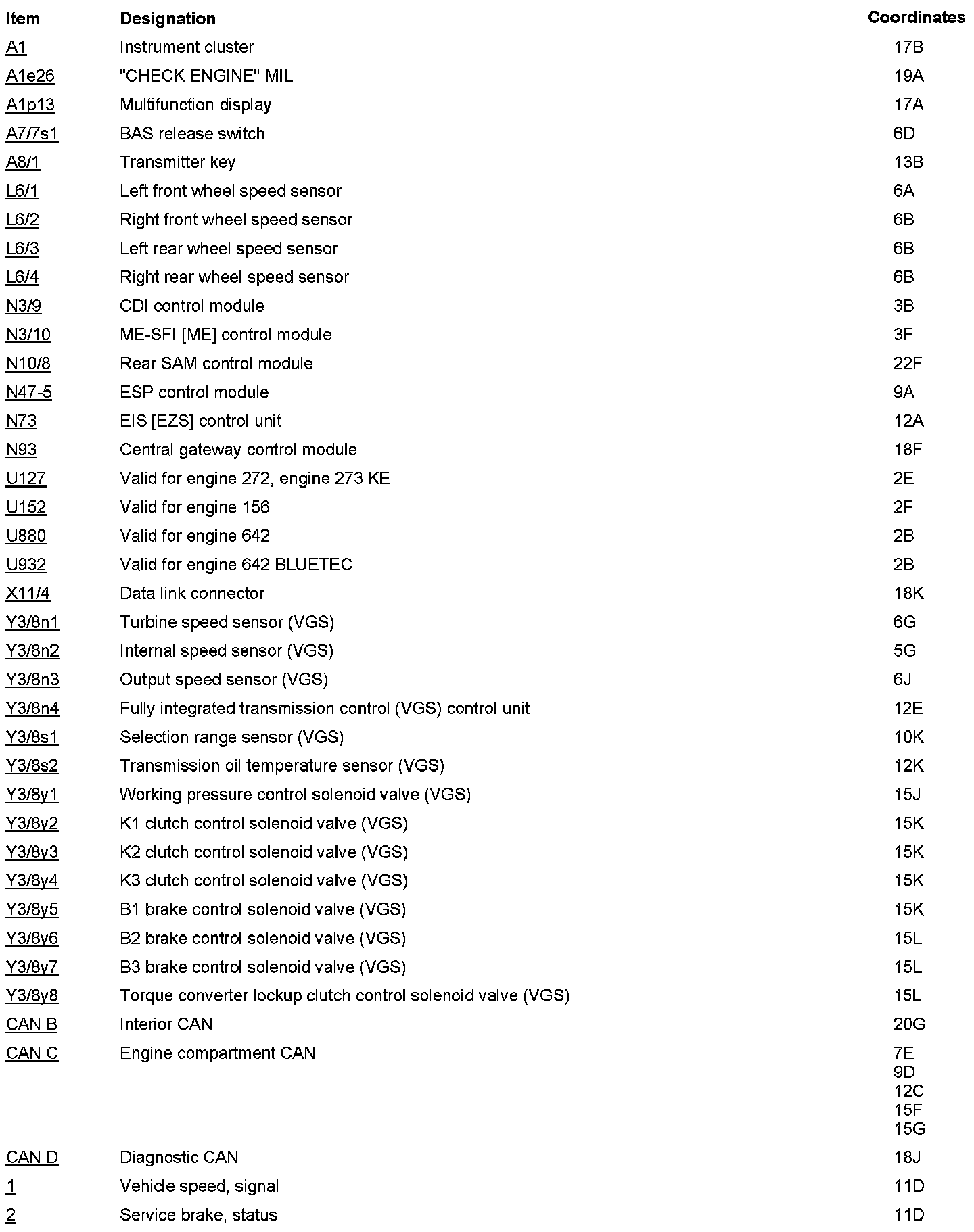

PE27.19-U-2050MAA Function Diagram of Electrical System For Electronic Transmission Control (ETC)



PE27.19-U-2050MAA Function Diagram of Electrical System For Electronic Transmission Control (ETC)
- TRANSMISSION 722.9


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
