Mercedes Benz Truck
>>
2008
>>
ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Glow Plug System
>>
Glow Plug Control Module
>>
Service and Repair
Glow Plug Control Module: Service and Repair
AR15.20-P-4500GZB Remove/install glow output stage

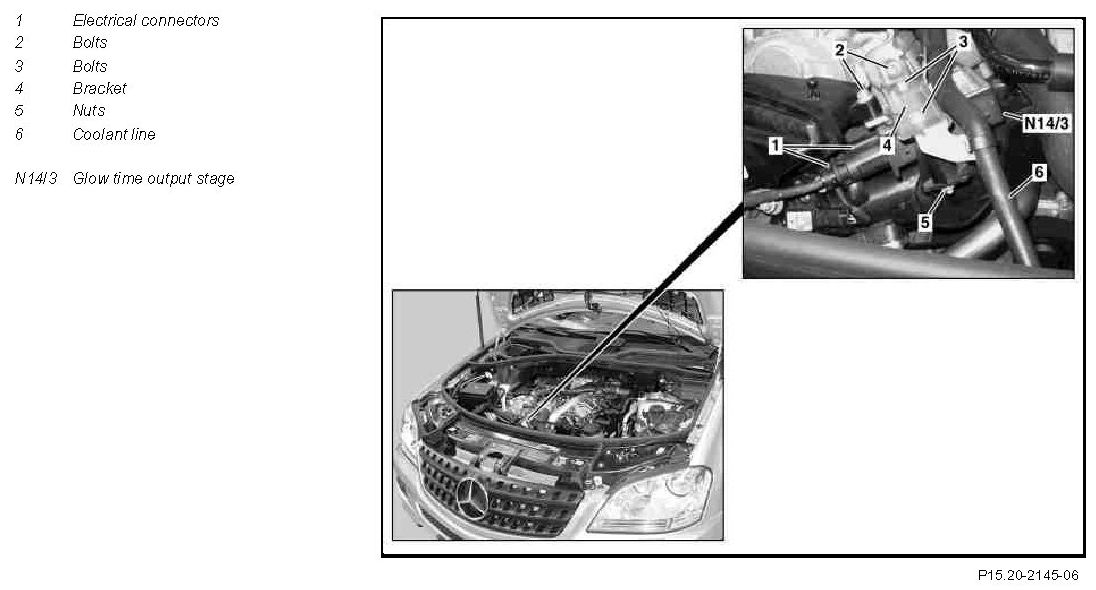

Component Identification:

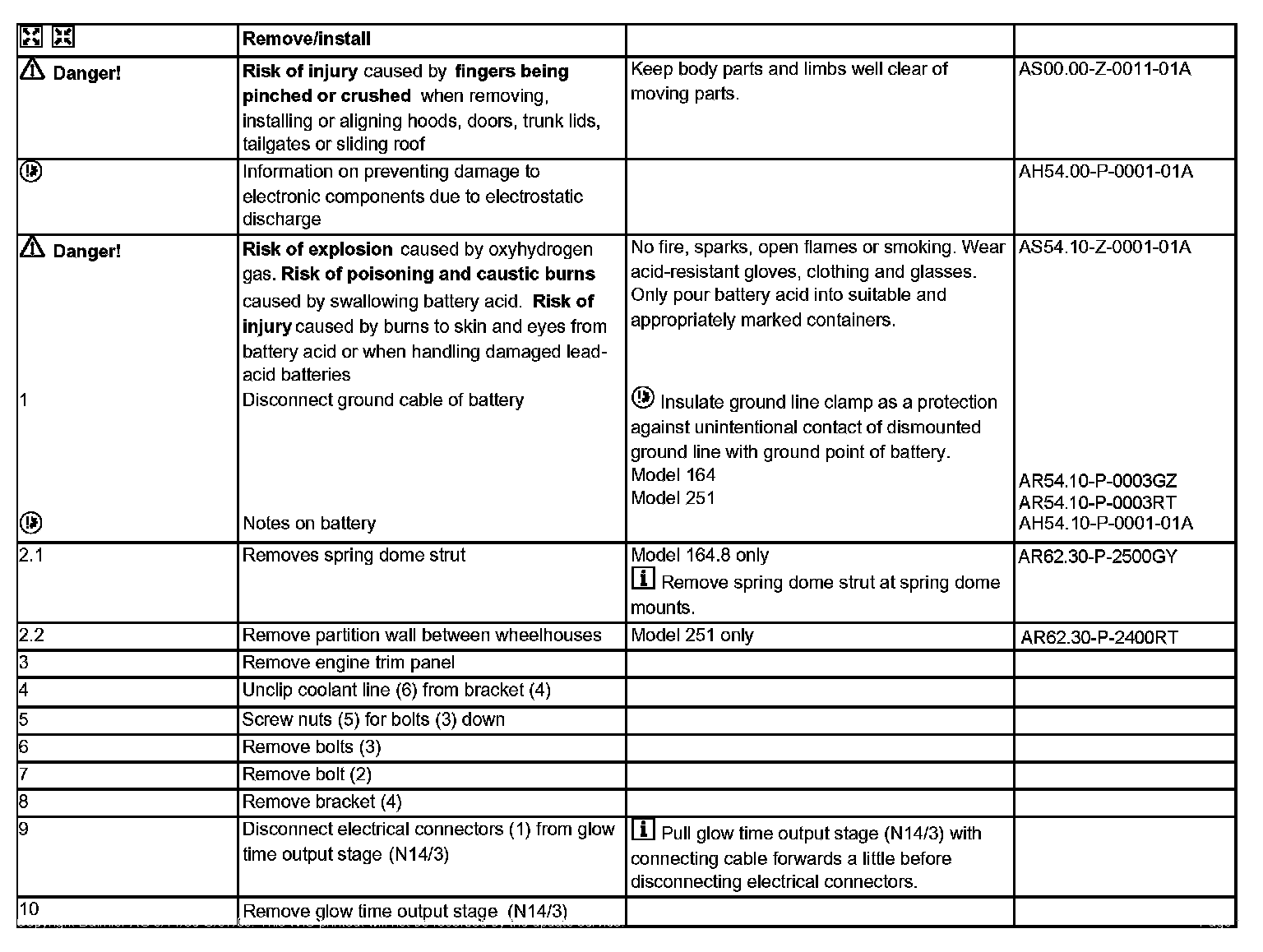

Remove/install Steps 1-10:

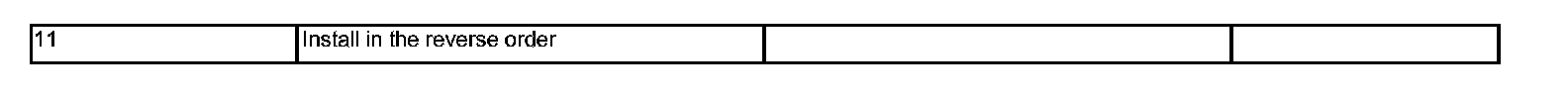

Remove/install Step 11:
