AR09.20-P-1315GZC Remove/Install Intake Port Shutoff Sensor



AR09.20-P-1315GZC Remove/Install Intake Port Shutoff Sensor
- with CODE (U42) BLUETEC diesel exhaust gas cleaning


Component Identification:

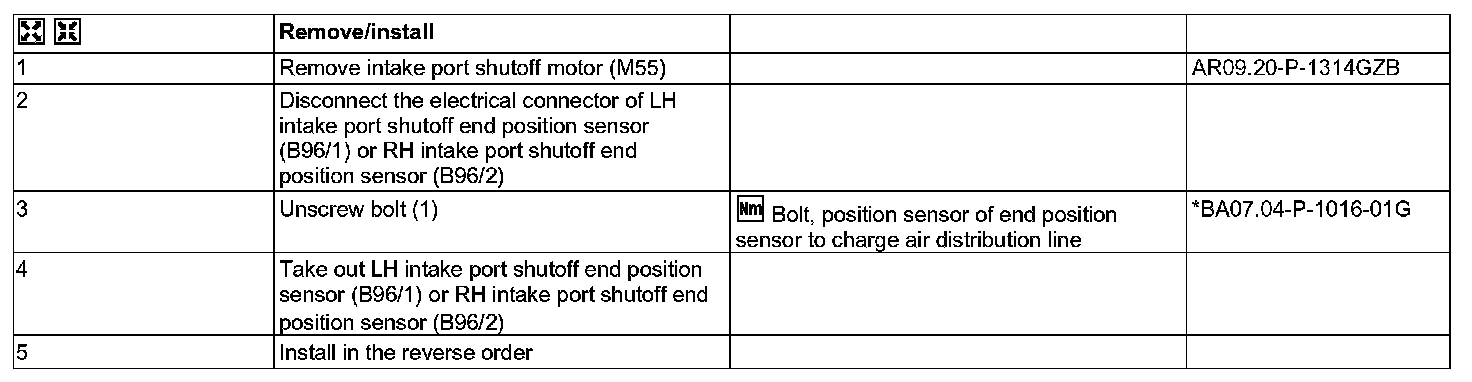

Step 1 - 5:

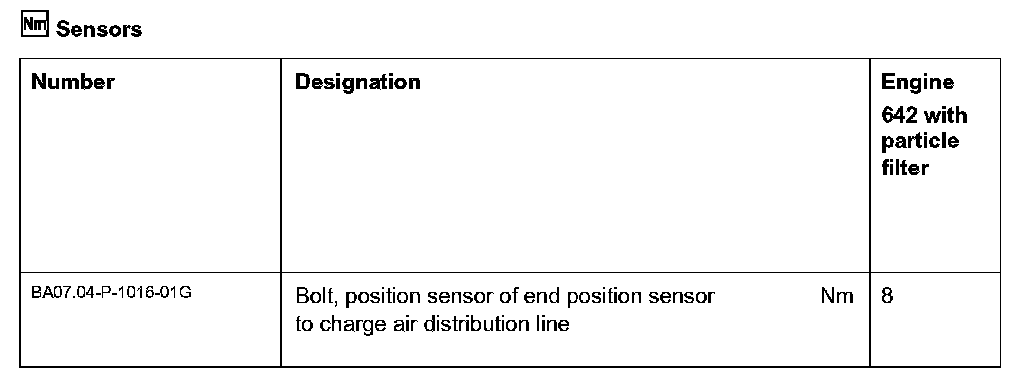

Sensors:
