FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz Truck
>>
2008
>>
ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Variable Induction System
>>
Variable Induction Control Actuator
>>
Service and Repair
>>
AR09.20-P-1314GZB Remove/Install Inlet Port Shutoff
AR09.20-P-1314GZB Remove/Install Inlet Port Shutoff
AR09.20-P-1314GZB Remove/Install Inlet Port Shutoff

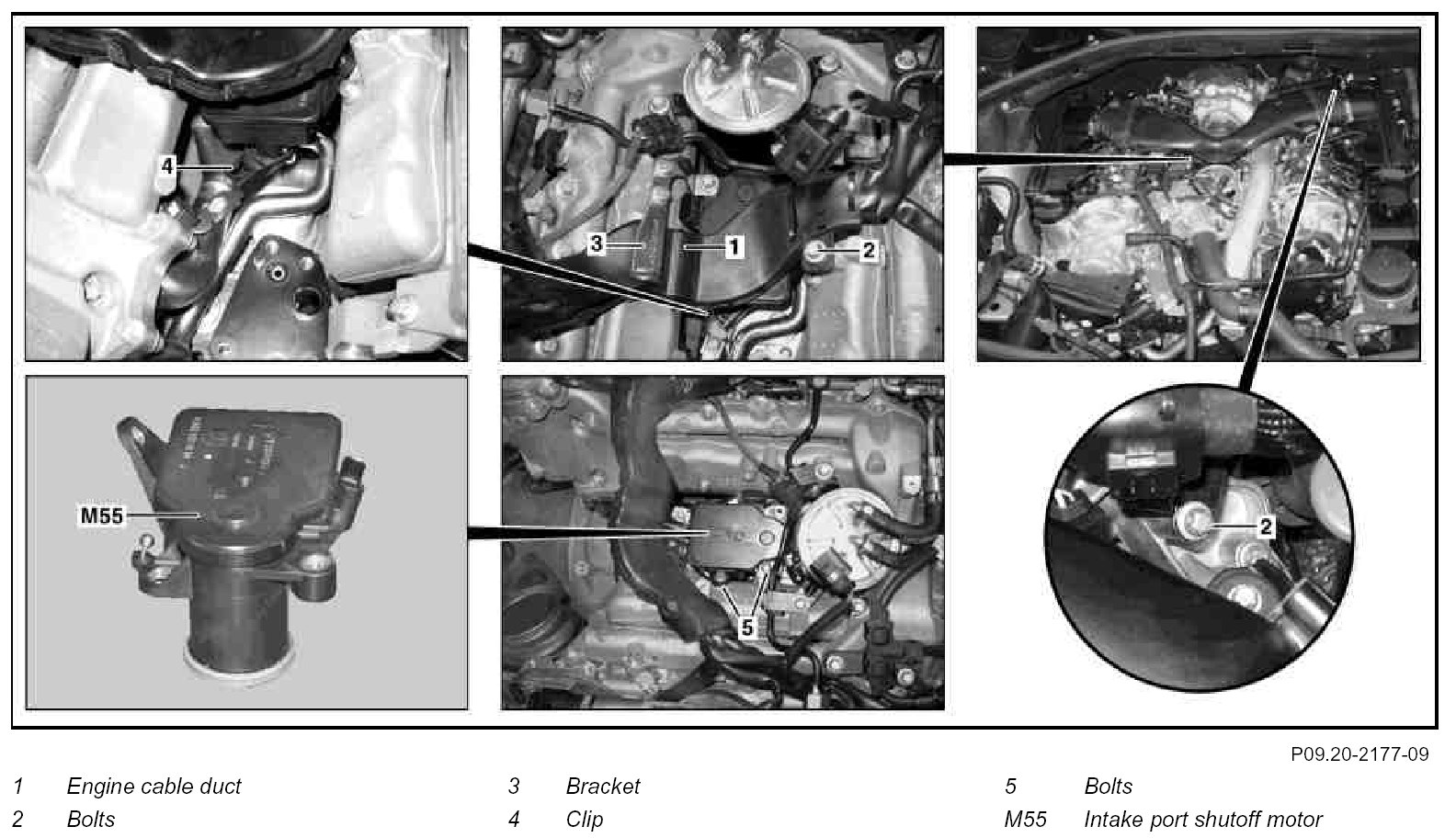

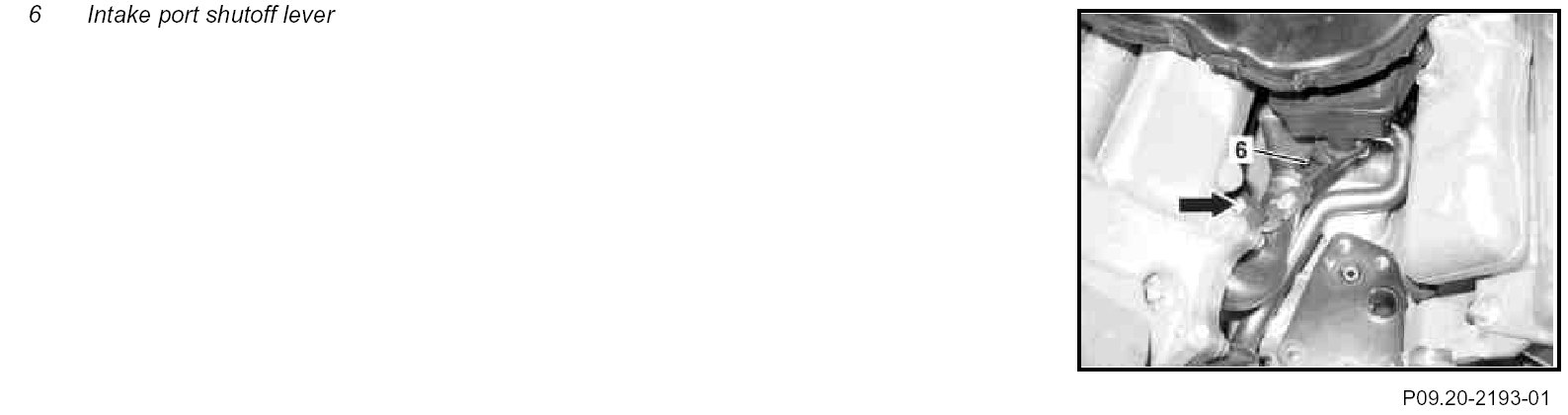

Component Identification:
Component Identification:

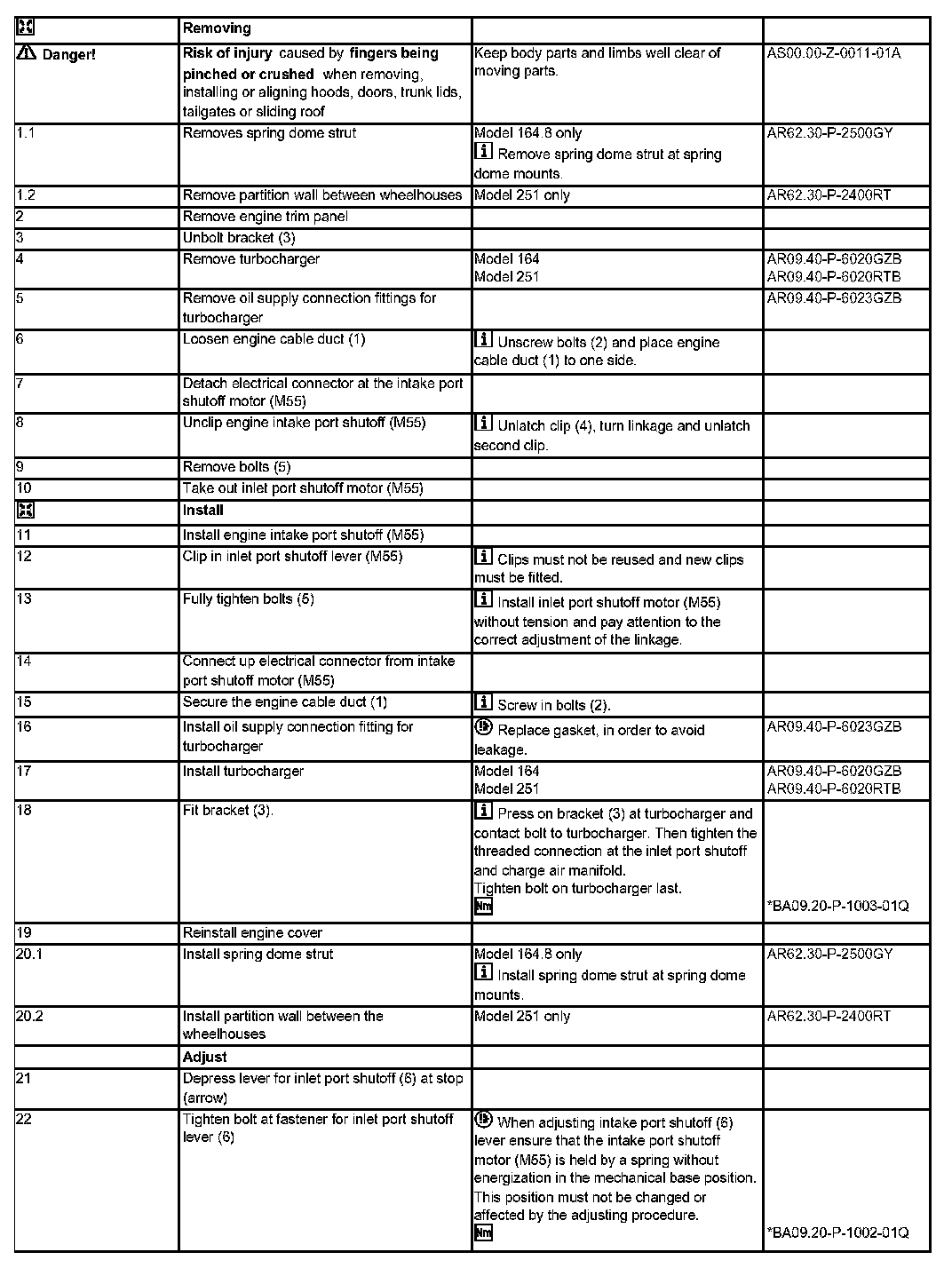

Steps 1.1 - 22:

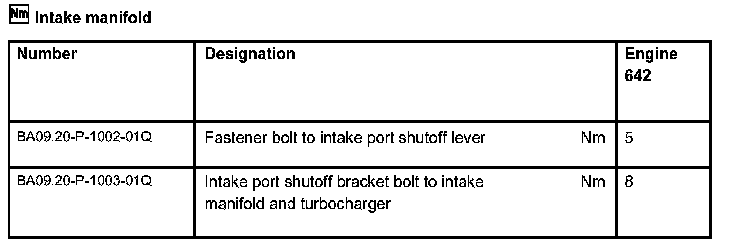

Intake Manifold:
