AR49.10-P-5500GZQ Remove/Install Catalytic Converter



AR49.10-P-5500GZQ Remove/install catalytic converter

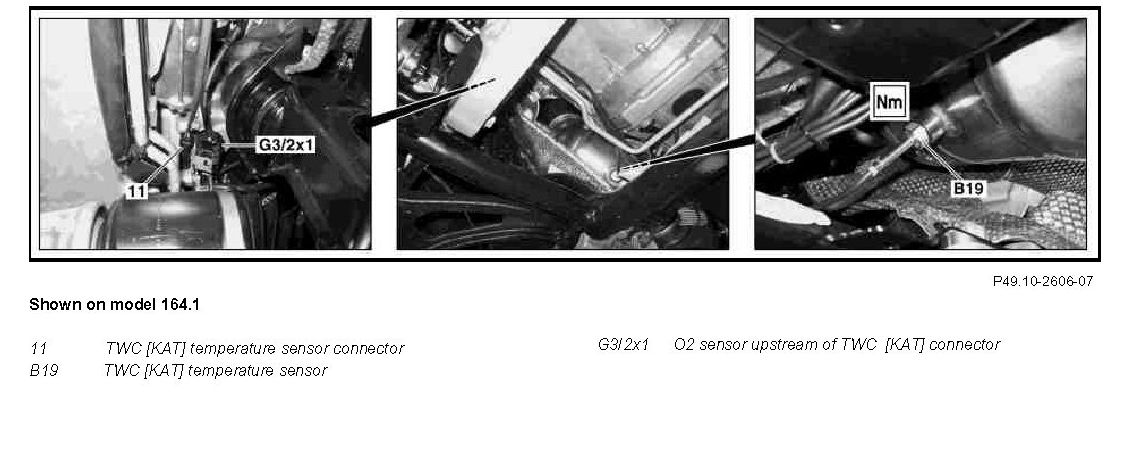

Component Identification:

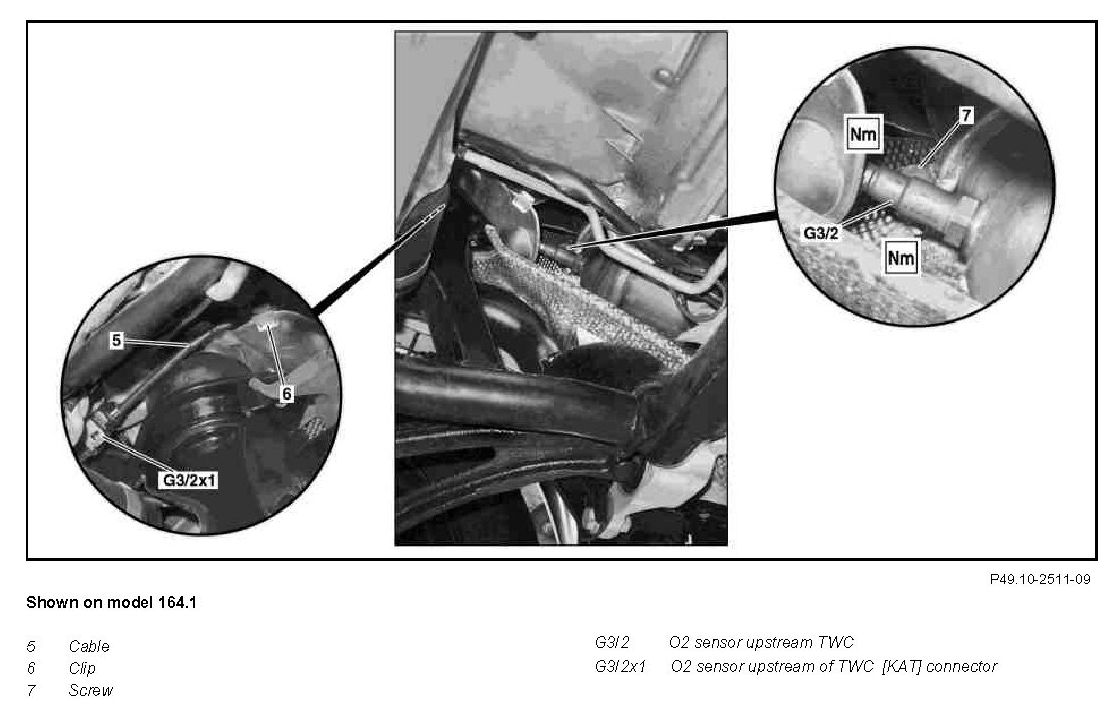

Component Identification:

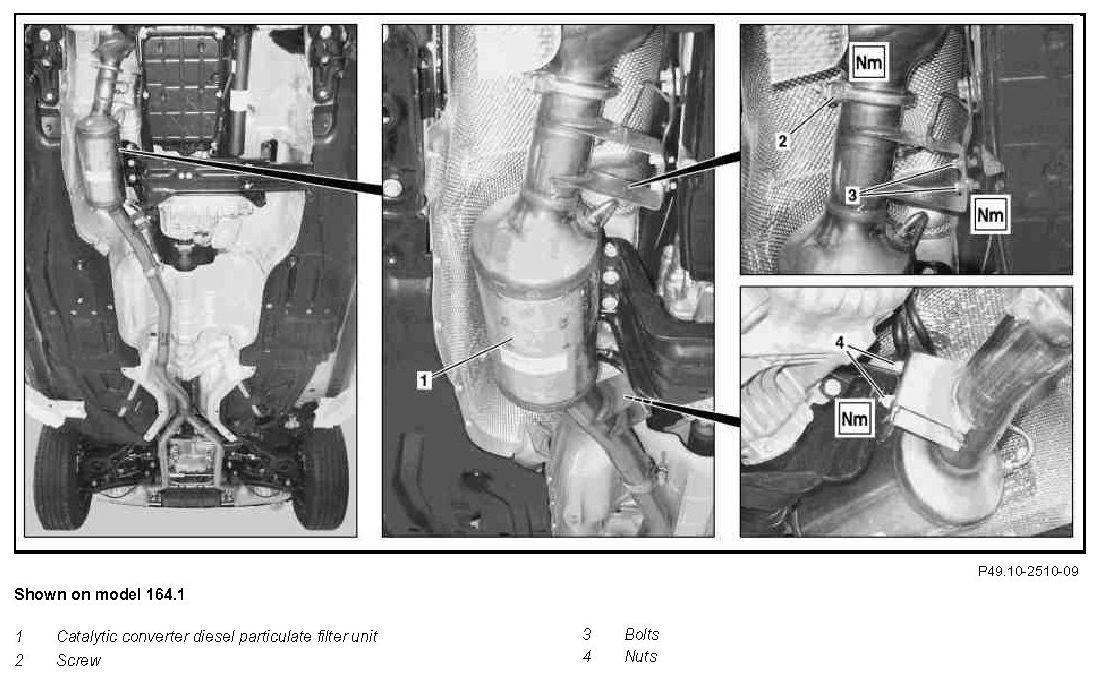

Component Identification:

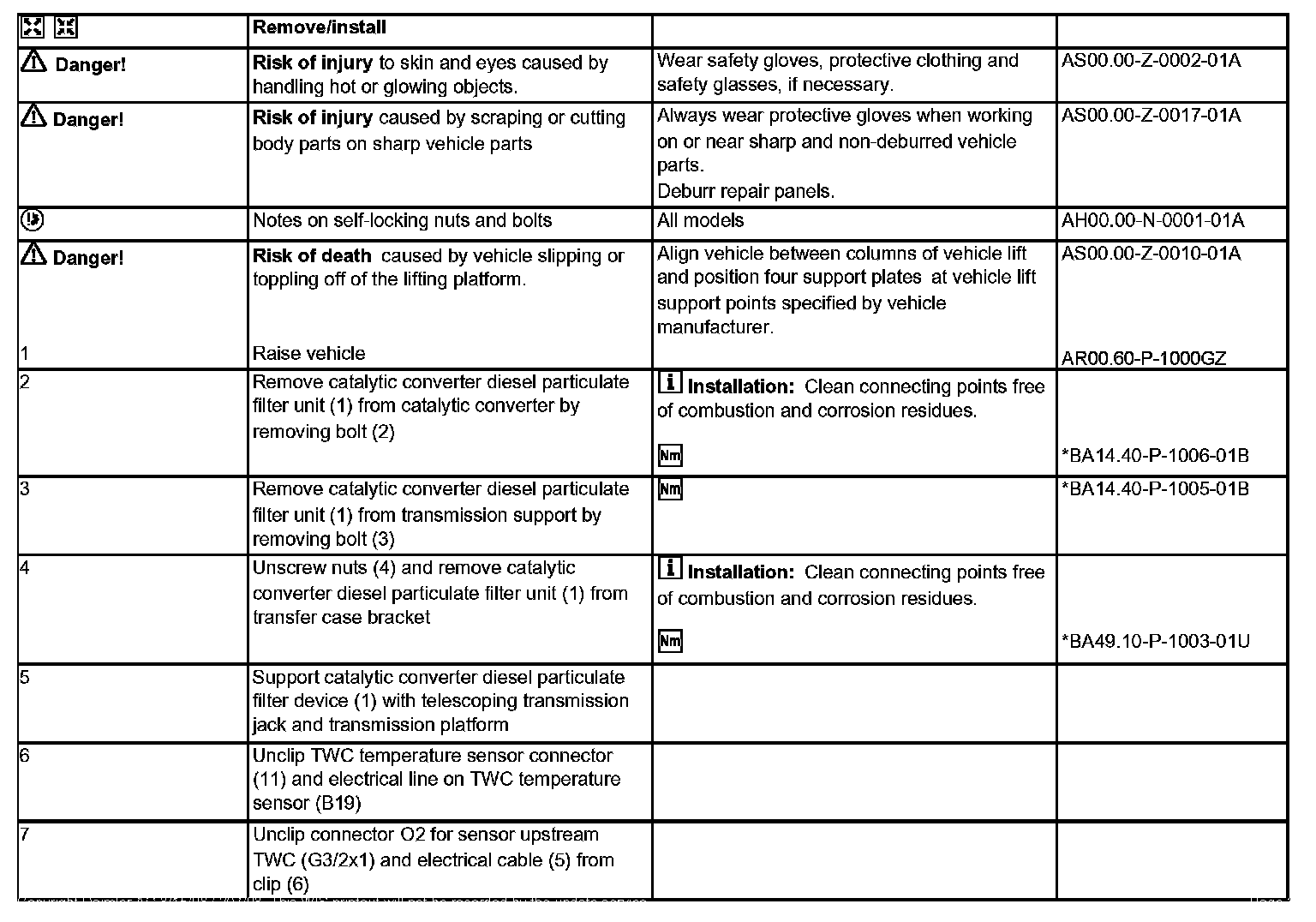

Remove/install Steps 1-7:

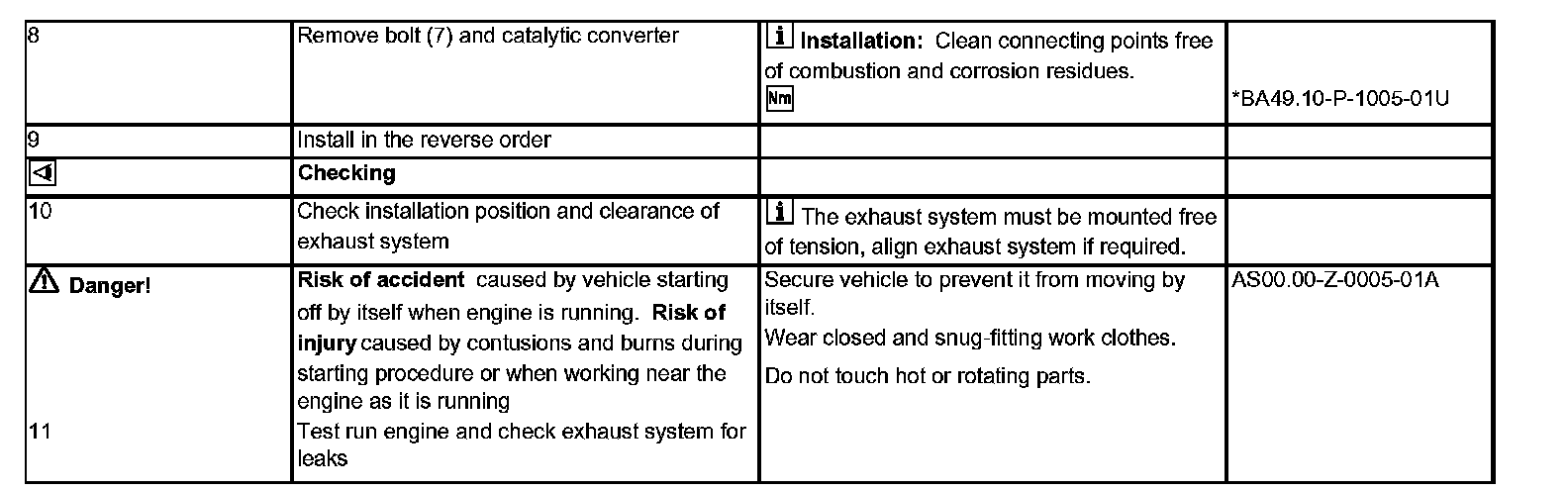

Remove/install Steps 8-11:

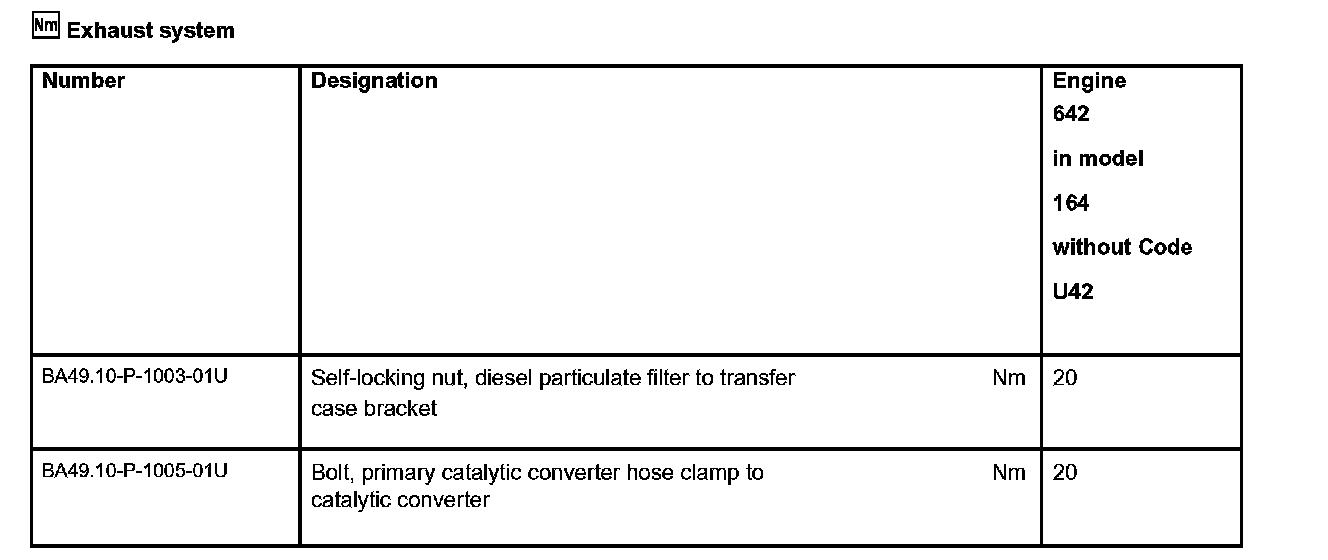

Exhaust system:

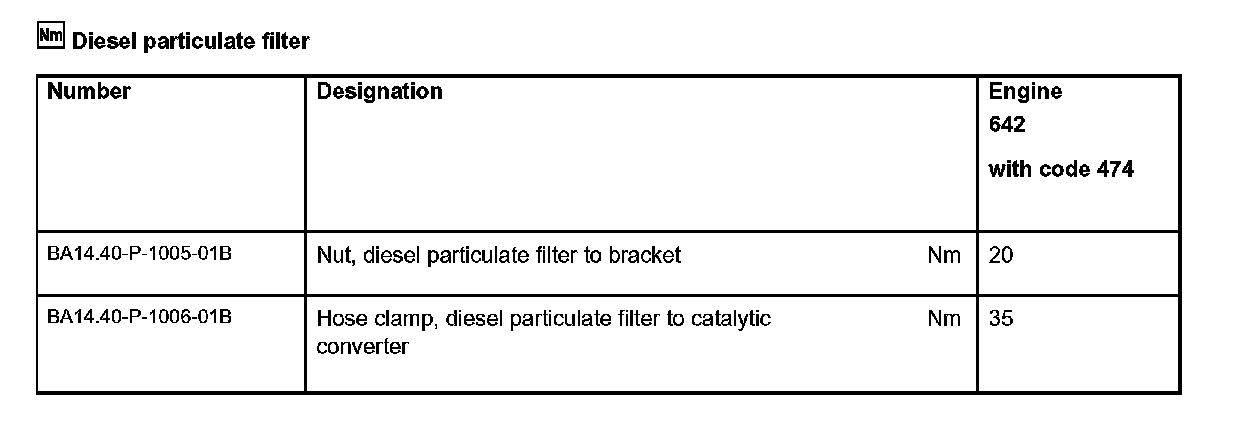

Diesel particulate filter:
