PE07.16-U-2101MAB Common Rail Diesel Injection (CDI) Control Module

PE07.16-U-2101MAB Common Rail Diesel Injection (CDI) Control Module

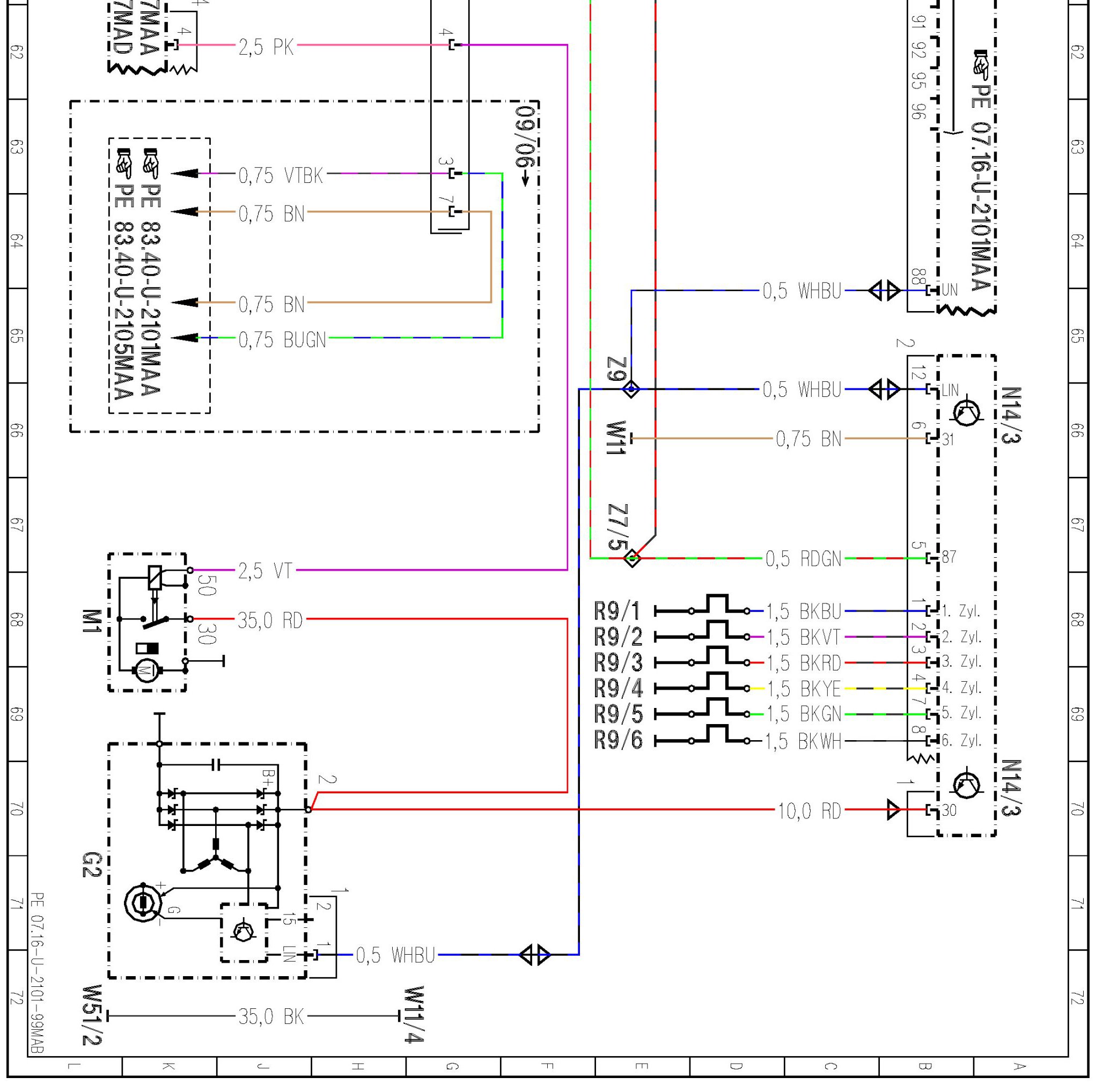

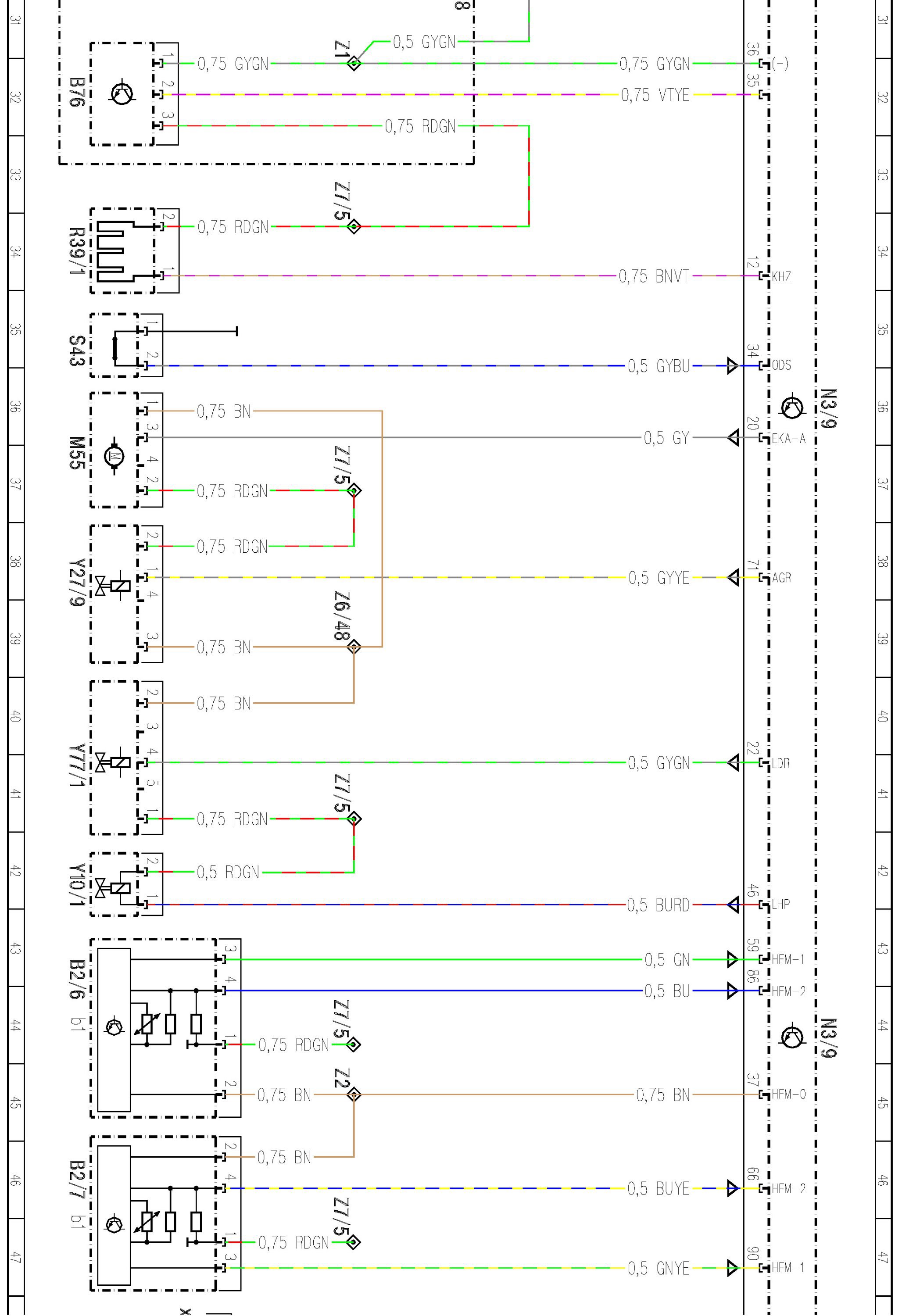

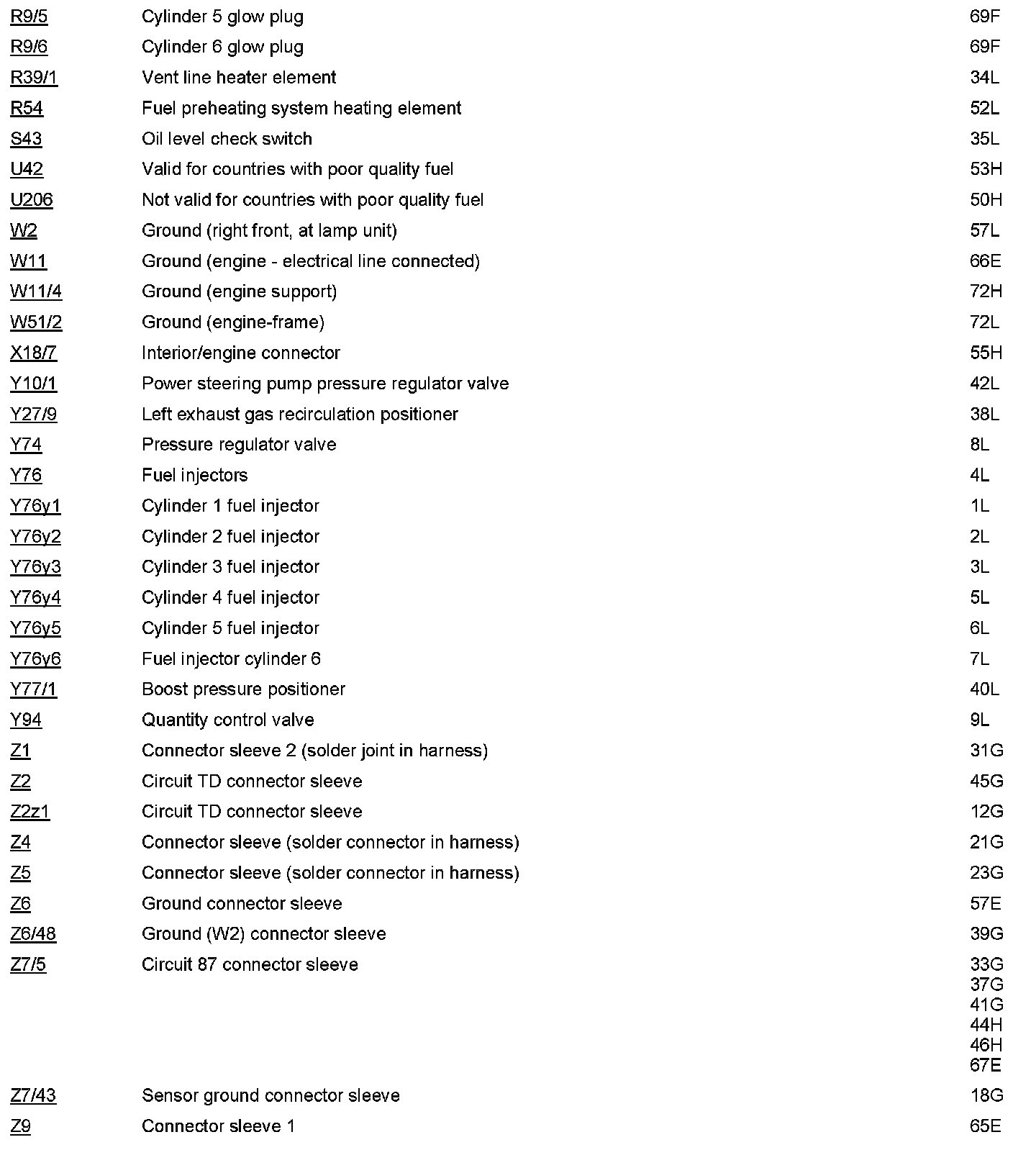

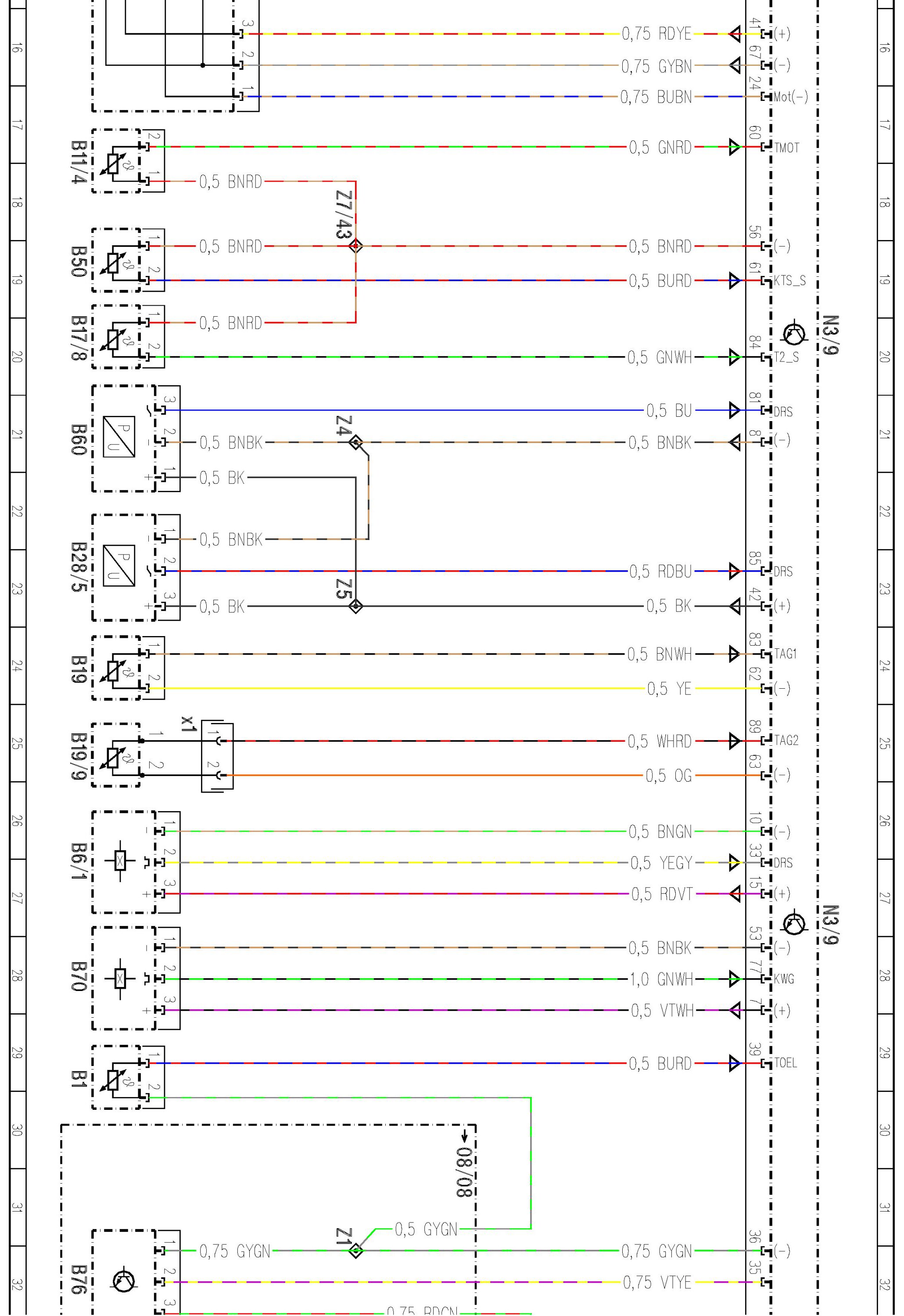

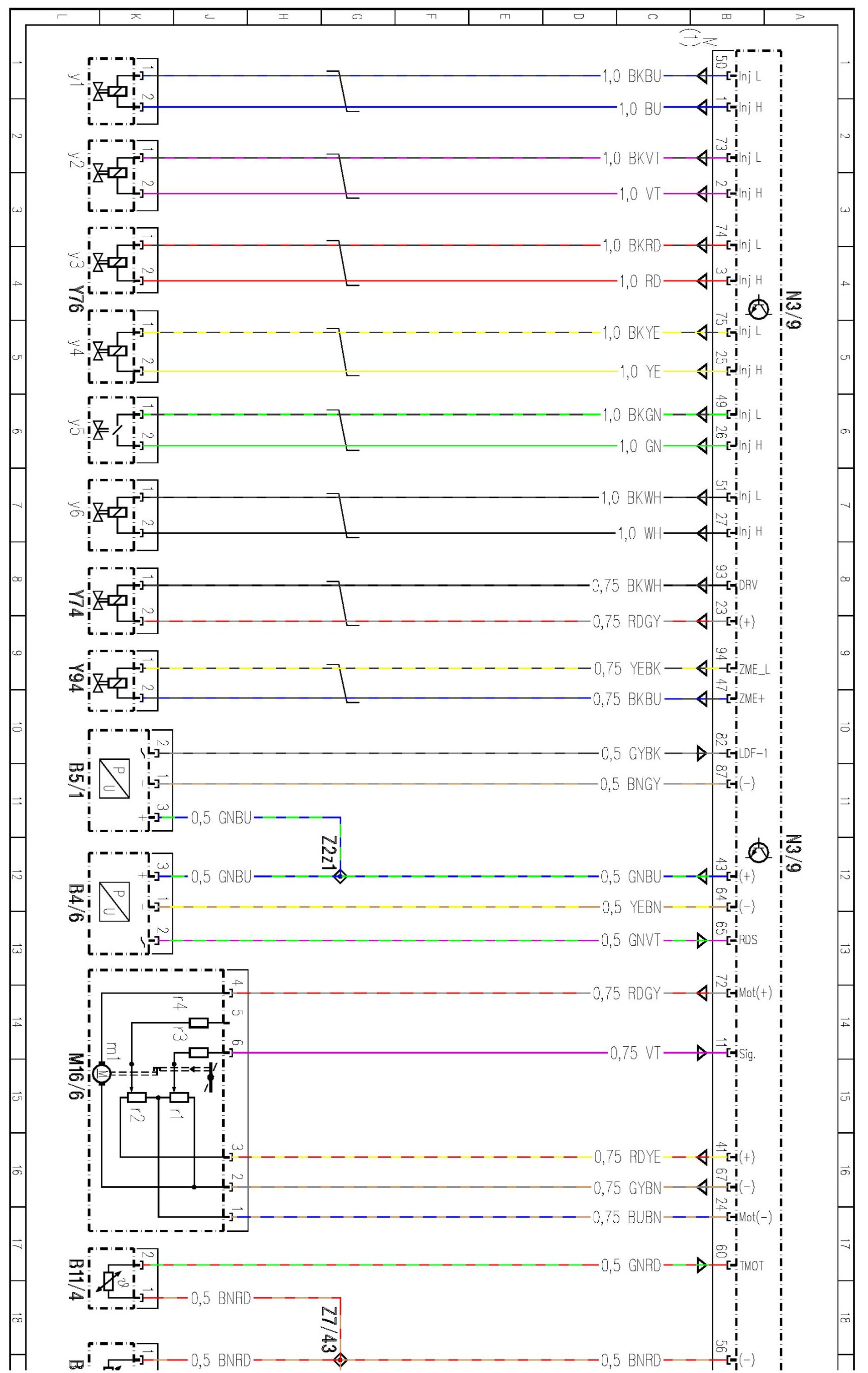

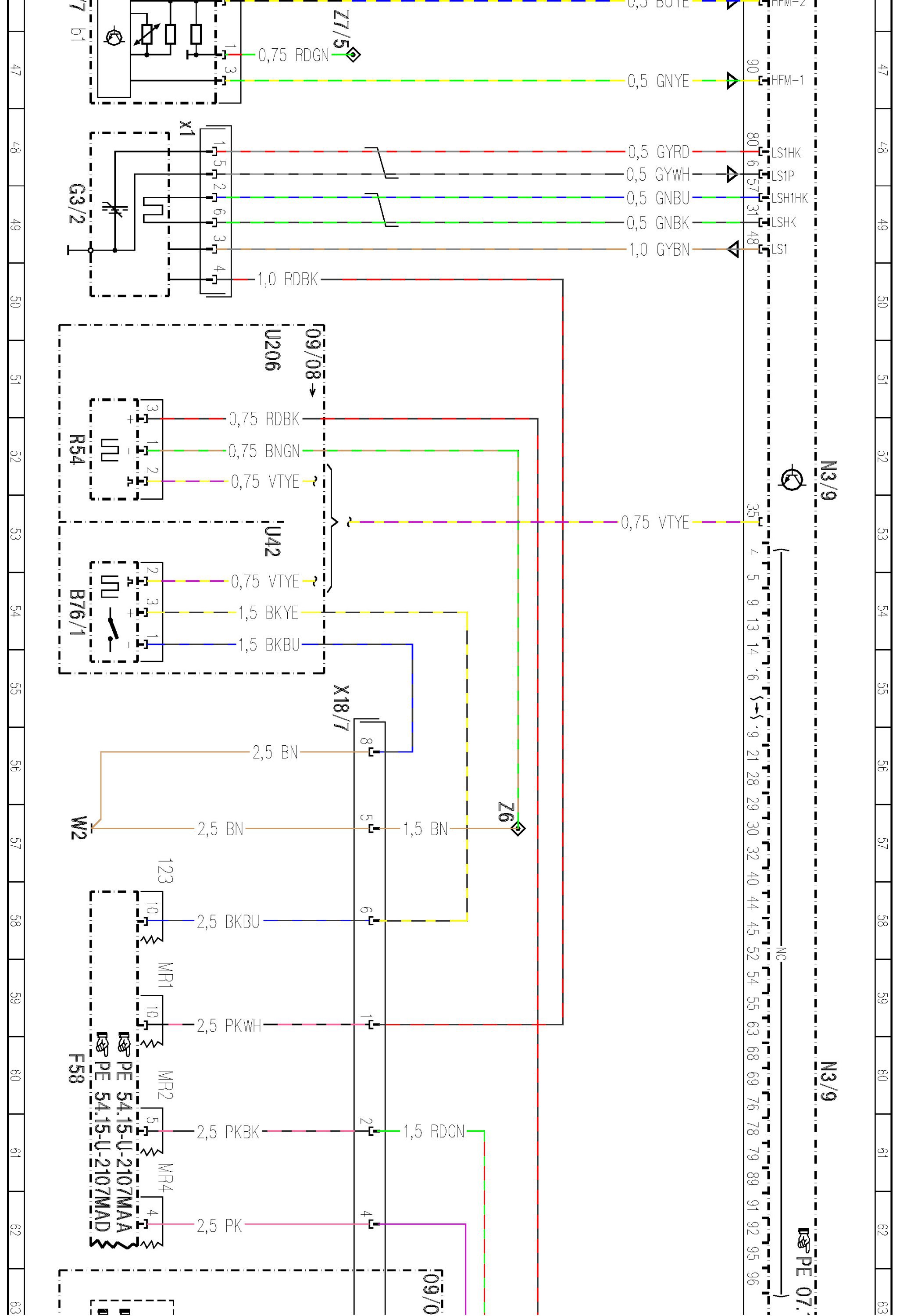

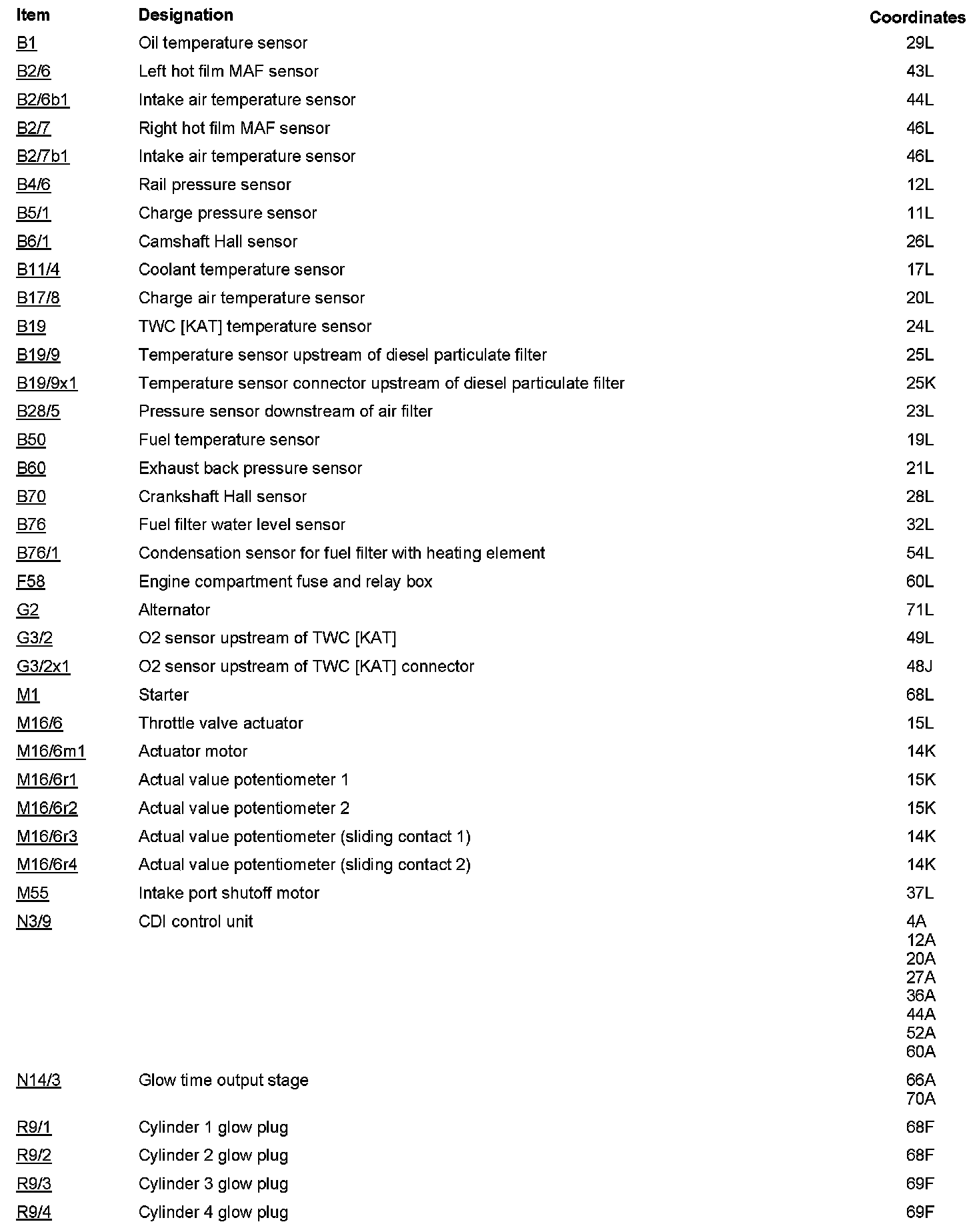

- CDI 4.11, control unit N3/9, sheet 2






























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
