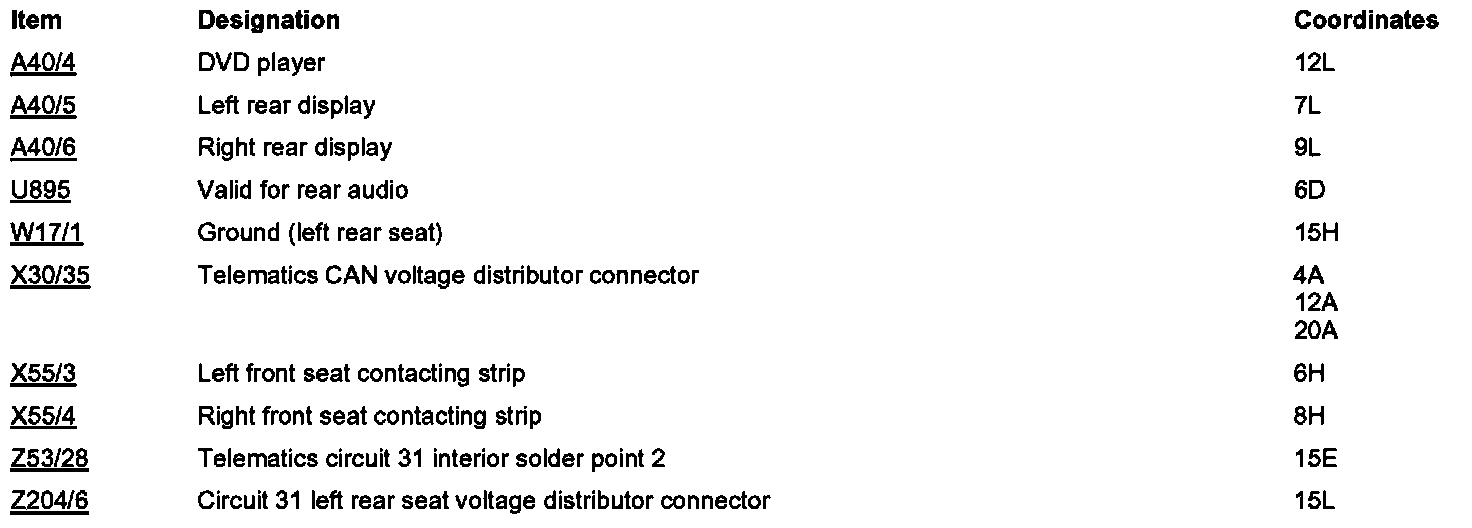

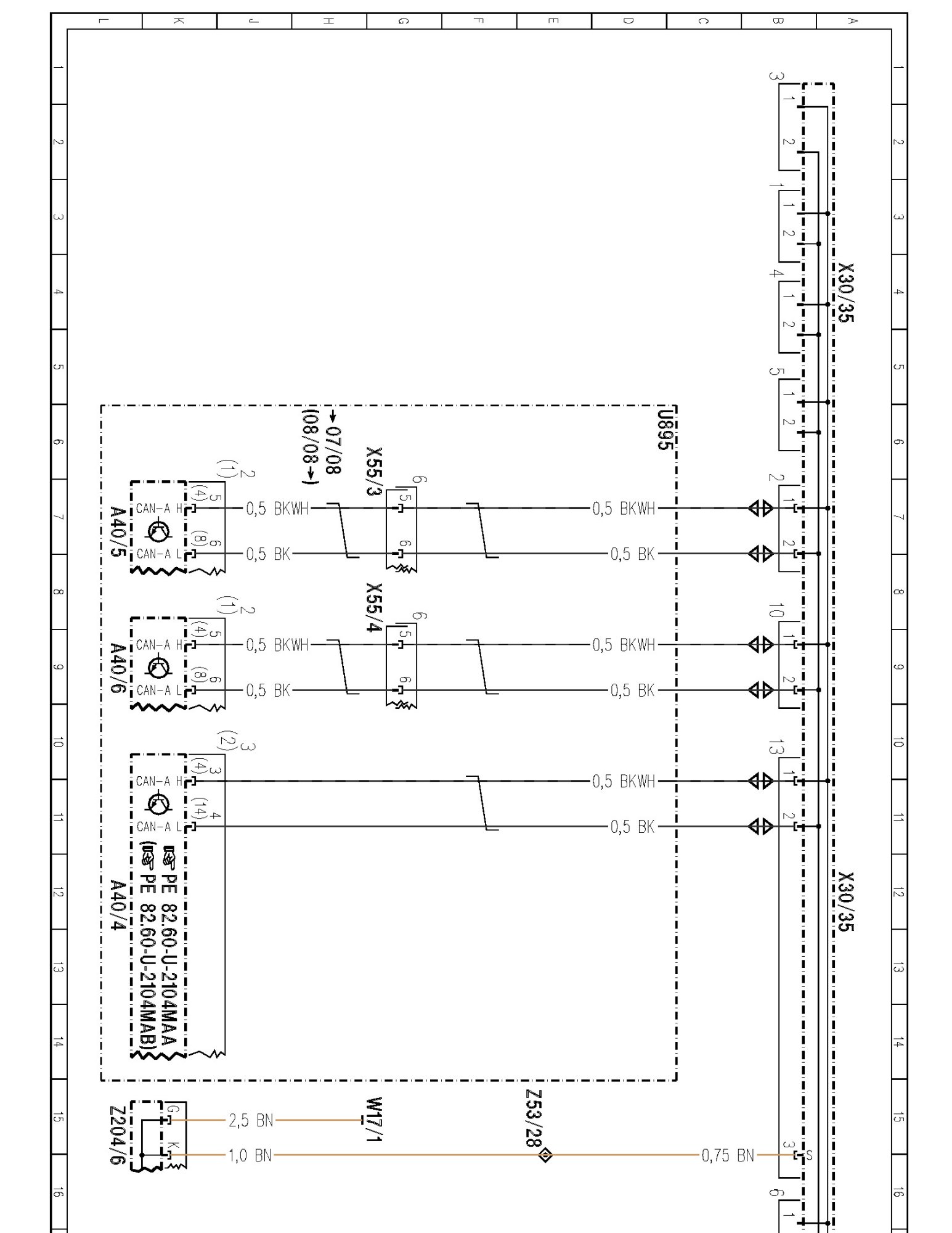

PE82.00-U-2720MAA Telematics CAN Bus



PE82.00-U-2720MAA Telematics CAN Bus
- Voltage distributor X30/35















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
