GF30.20-P-2010GZ Accelerator Pedal Sensor, Component Description

GF30.20-P-2010GZ Accelerator Pedal Sensor, Component Description
ENGINE 642.886 in MODEL 463.306 /336 /346 up to 31.5.12
- as of Model Year 2011
/YoM 10
ENGINE 642 in MODEL 164.1 /8 up to Model Year 2008
/YoM 07
ENGINE 642.970 in MODEL 463.303 /340 /341 up to 31.5.12

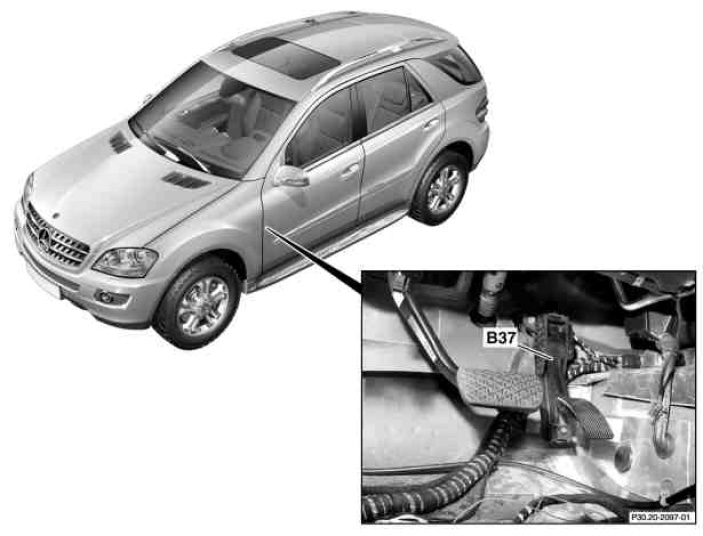

Shown on model 164.1

B37 Accelerator pedal sensor

Location
The accelerator pedal sensor is located in the driver footwell at the right front.

Task
The accelerator pedal sensor detects the accelerator pedal position and supplies a matching voltage signal to the CDI control unit (N3/9).

Design
The accelerator pedal sensor consists of a Hall sensor with an integrated Hall IC.

Function
The Hall sensor integrated in the accelerator pedal sensor detects the current position of the accelerator pedal by means of the permanent magnets fitted on the pedal axis.
