Reset Service Indicator [Serv. A - H] (Illustrated)
Preliminary Tasks:
- Close trunk lid or liftgate as well as engine hood and doors.

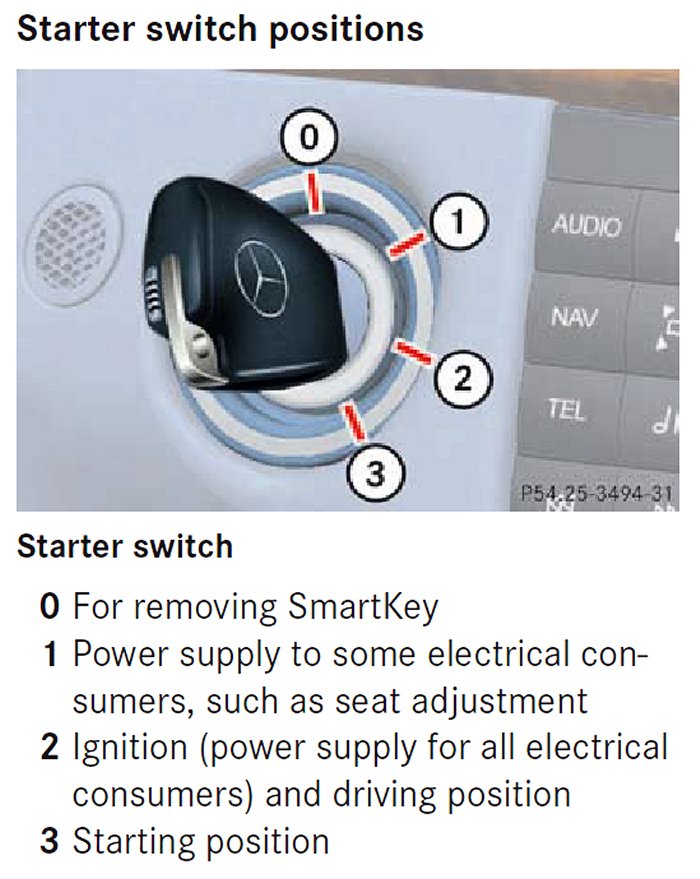

1. Switch on ignition key to Position 1
Steering Wheel - Early:

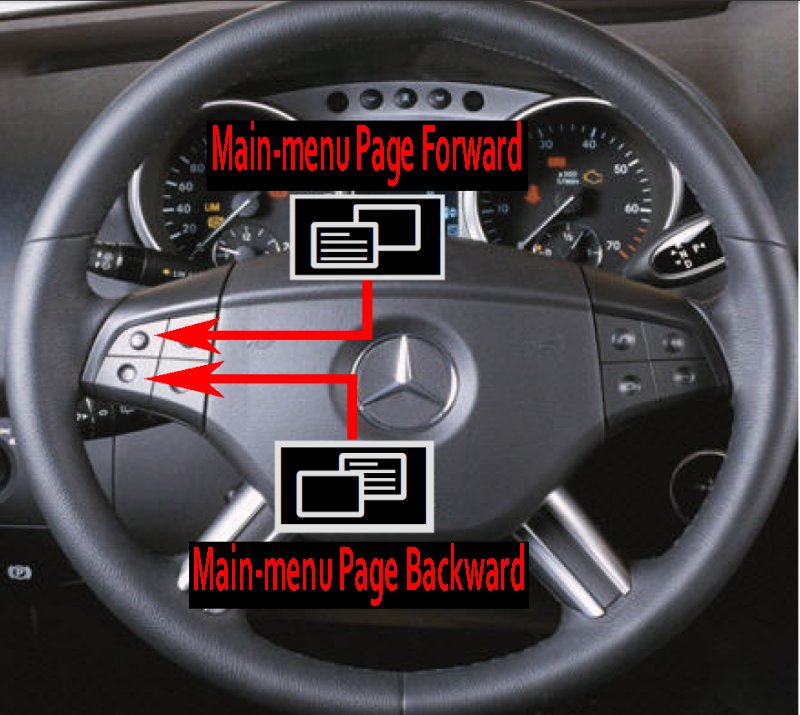

Steering Wheel - Late:
2. Press the Main Menu System selection buttons (-red arrows- located on the left-hand side of steering wheel) repeatedly to cycle through the various menus until the Trip Odometer/Main Odometer Menu, temperature, and time is displayed on the Multifunction Display.

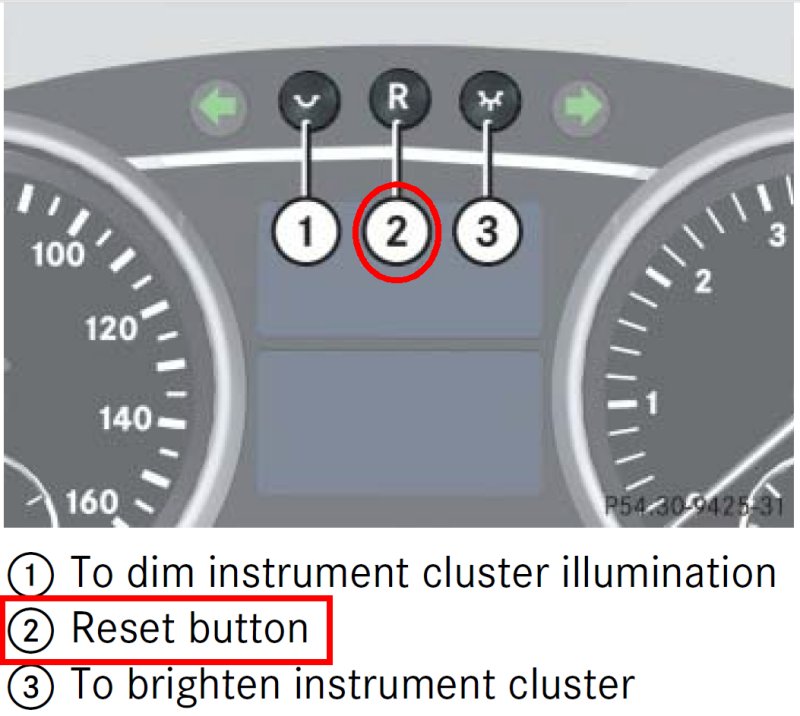

3. With the Trip Odometer/ Main Odometer Menu display showing on the Multifunction display, press the trip odometer/ instrument cluster illumination dimmer button three times quickly (-red circle/square- located on the top section of the instrument cluster).
Steering Wheel - Early:
Steering Wheel - Late:

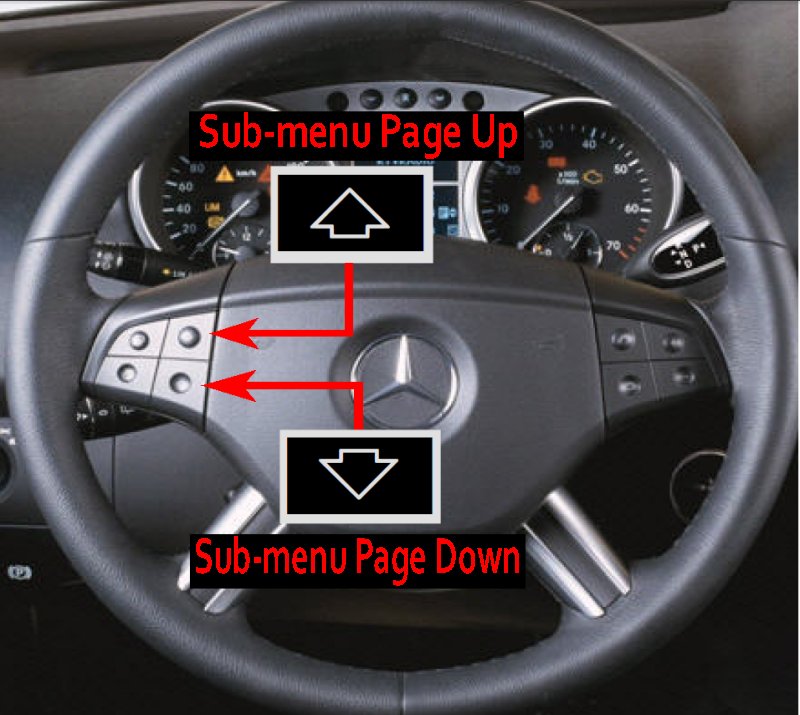

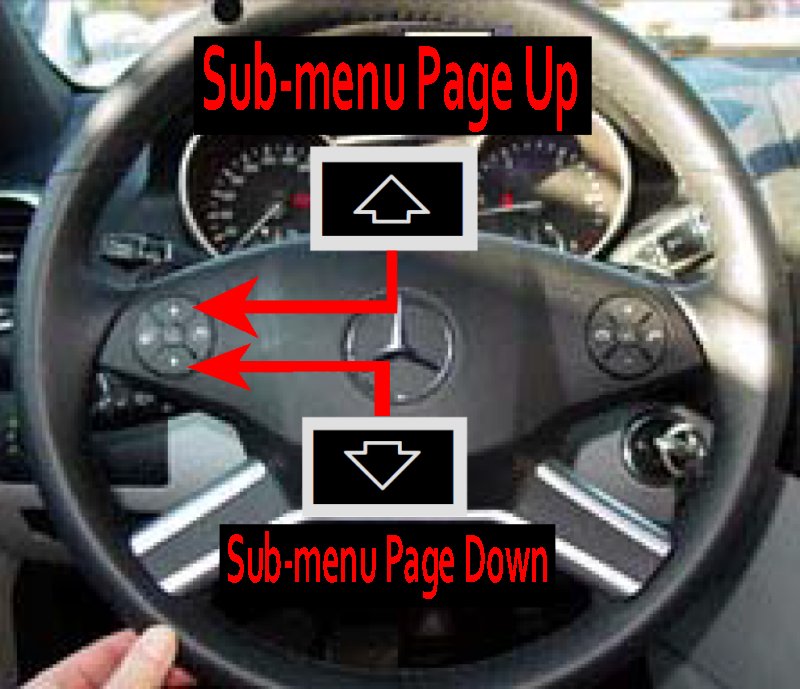

4. Use the Sub-menu System selection page down arrow button (-red arrow- located on the left-side of the Multi-function steering wheel) to bring up the Service Menu. Service menu now displays on the Multifunction Display.
Steering Wheel - Early:
Steering Wheel - Late:

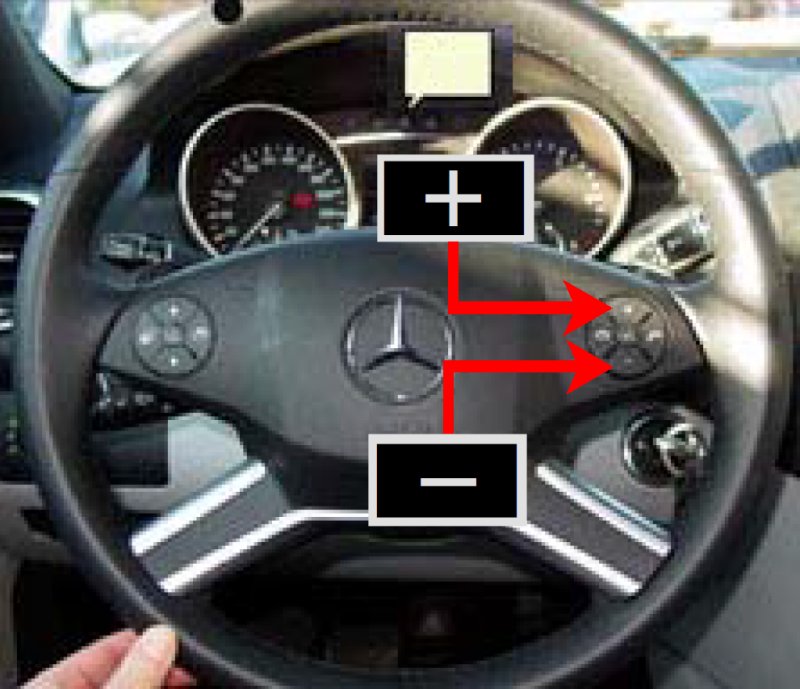

5. Press the "-" minus button (-red arrow- located on the right-side of the Multi-function steering wheel) repeatedly to scroll down and highlight the item "Confirmation".
Steering Wheel - Early:
Steering Wheel - Late:

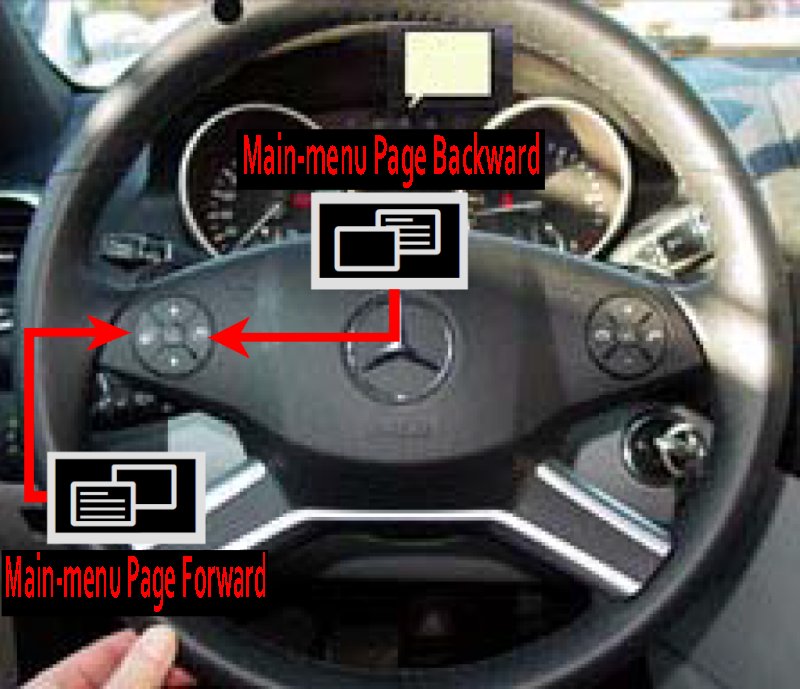

6. Press and release the Main Menu Page Back button (located on the left-side of the Multi-function steering wheel) to enter into the "Confirmation" menu. "Confirmation" menu now appears in the Multifunction Display.
Steering Wheel - Early:
Steering Wheel - Late:
7. Using the "-" button (located on the right-side of the Multi-function steering wheel) scroll down and highlight the item "Full Service".
Steering Wheel - Early:
Steering Wheel - Late:
8. To confirm reset press and release the Main Menu Page Back button (located on the left-side of the Multi-function steering wheel). The message "Service Confirmed" is now displayed on the Multifunction Display.
STOP!
If an Oil Service has not been completed, please proceed to Step 16.
If an Oil Service has been completed, please continue to Step 9.
Steering Wheel - Early:
Steering Wheel - Late:
9. Press and release the Main Menu Page Forward Button (located on the left-side of the Multi-funtcion steering wheel) repeatedly to return back to the "Service Menu".
Steering Wheel - Early:
Steering Wheel - Late:
10. Using the "+" or "-" (located on the right-side of the steering wheel) scroll and highlight the Service Menu item "Special Work".
Steering Wheel - Early:
Steering Wheel - Late:
11. Press and release the Main Menu Page Back button (located on the left-side of the steering wheel) to confirm.
Steering Wheel - Early:
Steering Wheel - Late:
12. Using the "+" or "-" buttons (located on the right-side of the steering wheel) scroll and highlight the menu item "Service 3".
Steering Wheel - Early:
Steering Wheel - Late:
13. Press and release the Main Menu Page Back button (located on the left-side of the steering wheel) to confirm.
Steering Wheel - Early:
Steering Wheel - Late:
14. Using the "+" or "-" buttons select the engine oil grade used, "Standard Oil" or "Oil quality 229.5".
Steering Wheel - Early:
Steering Wheel - Late:
15. Press and release the Main Menu Page Back button (located on the left-side of the steering wheel) to confirm.
Steering Wheel - Early:
Steering Wheel - Late:
16. Press and release the Main Menu Page Forward button (located on the left-side of the steering wheel) repeatedly until the Trip Odometer/Main Odometer Menu, temperature, and time is displayed on the Multifunction Display.
17. Turn ignition key to position "0" and release ignition key.
18. Re-insert ignition key and recheck FSS PLUS Indicator Service Menu for renewed mileage interval.
