Home >> Mercedes Benz Truck >> 2008 >> ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940) >> Repair and Diagnosis >> Heating and Air Conditioning >> Service and Repair >> Procedures >> AR83.55-P-5250GZ Correct Oil Level In Air Conditioning System When Replacing AC Compressor

AR83.55-P-5250GZ Correct Oil Level In Air Conditioning System When Replacing AC Compressor



AR83.55-P-5250GZ Correct Oil Level In Air Conditioning System When Replacing AC Compressor
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- with CODE (582) Rear air conditioner

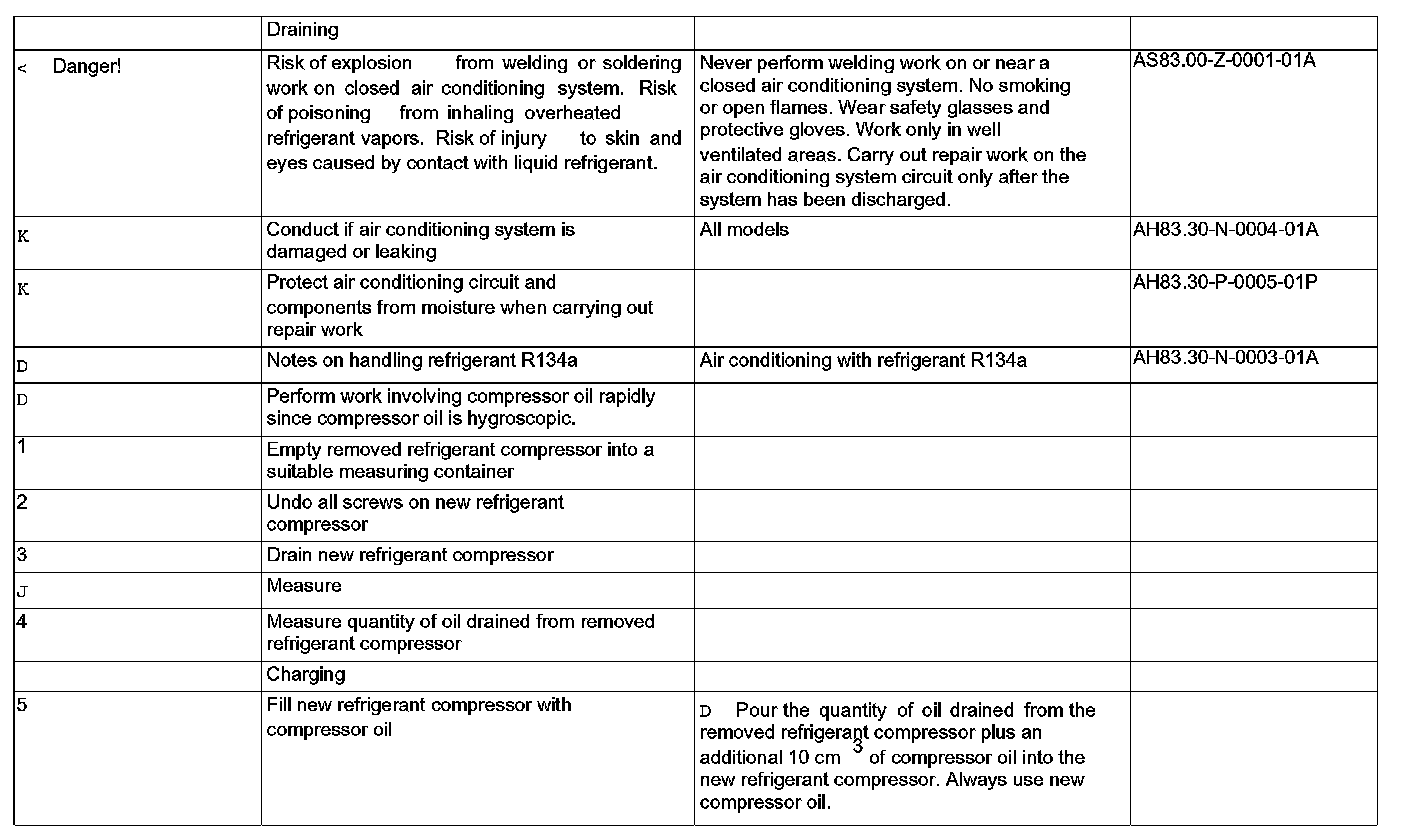

Steps 1 - 5:
