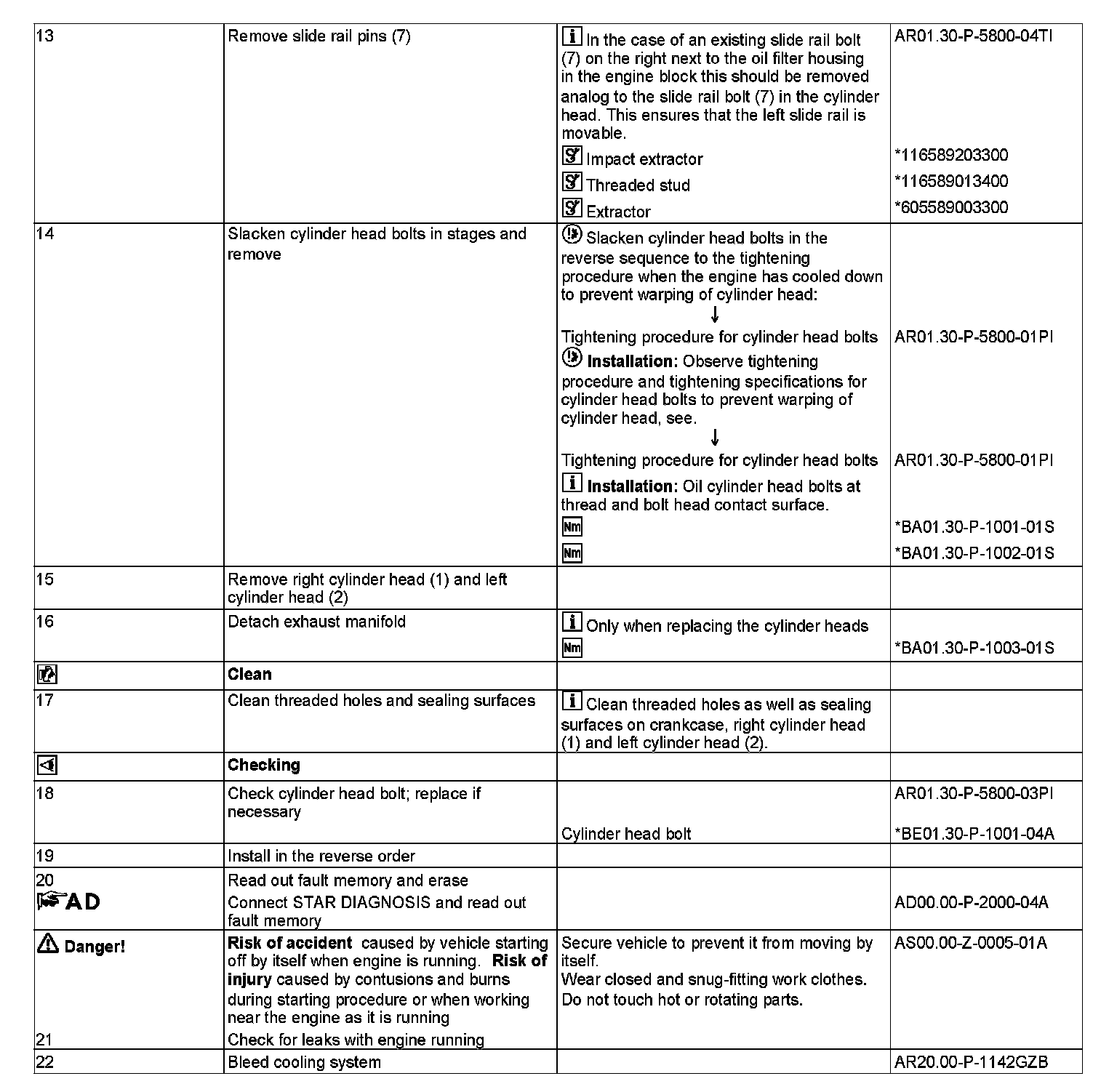

AR01.30-P-5800GZC Remove/Install Cylinder Head

AR01.30-P-5800GZC Remove/Install Cylinder Head
ENGINE 642 in MODEL 164, 251





1 Right cylinder head
2 Left cylinder head
3 Heat shield
7 Slide rail pins




















116 589 01 34 00
Threaded stud





116 589 20 33 00
Impact extractor





605 589 00 33 00
Puller
