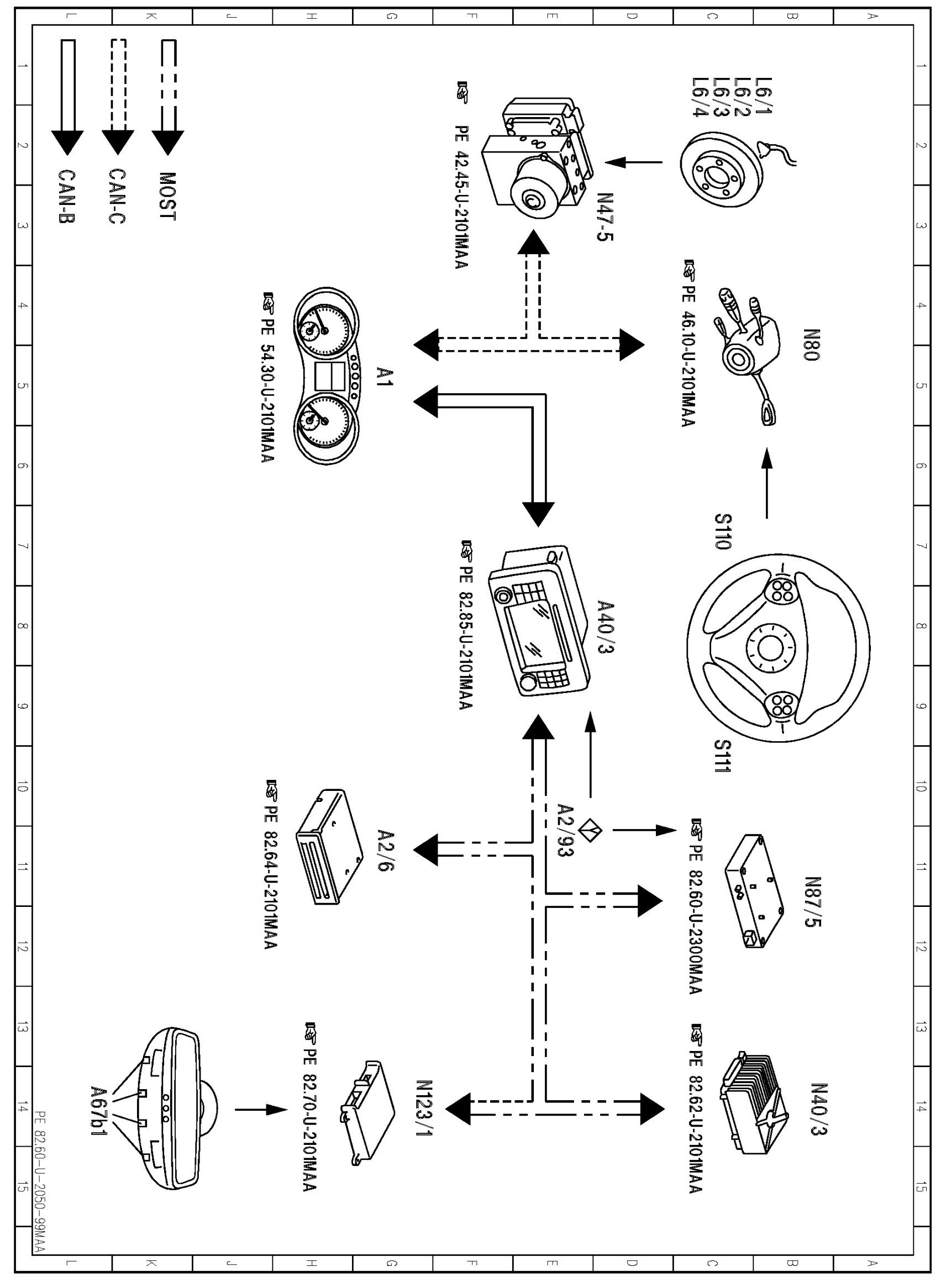

PE82.60-U-2050MAA Function Diagram of Electrical System of Radio



PE82.60-U-2050MAA Function Diagram of Electrical System of Radio
- with CODE (352) COMAND operating and display system

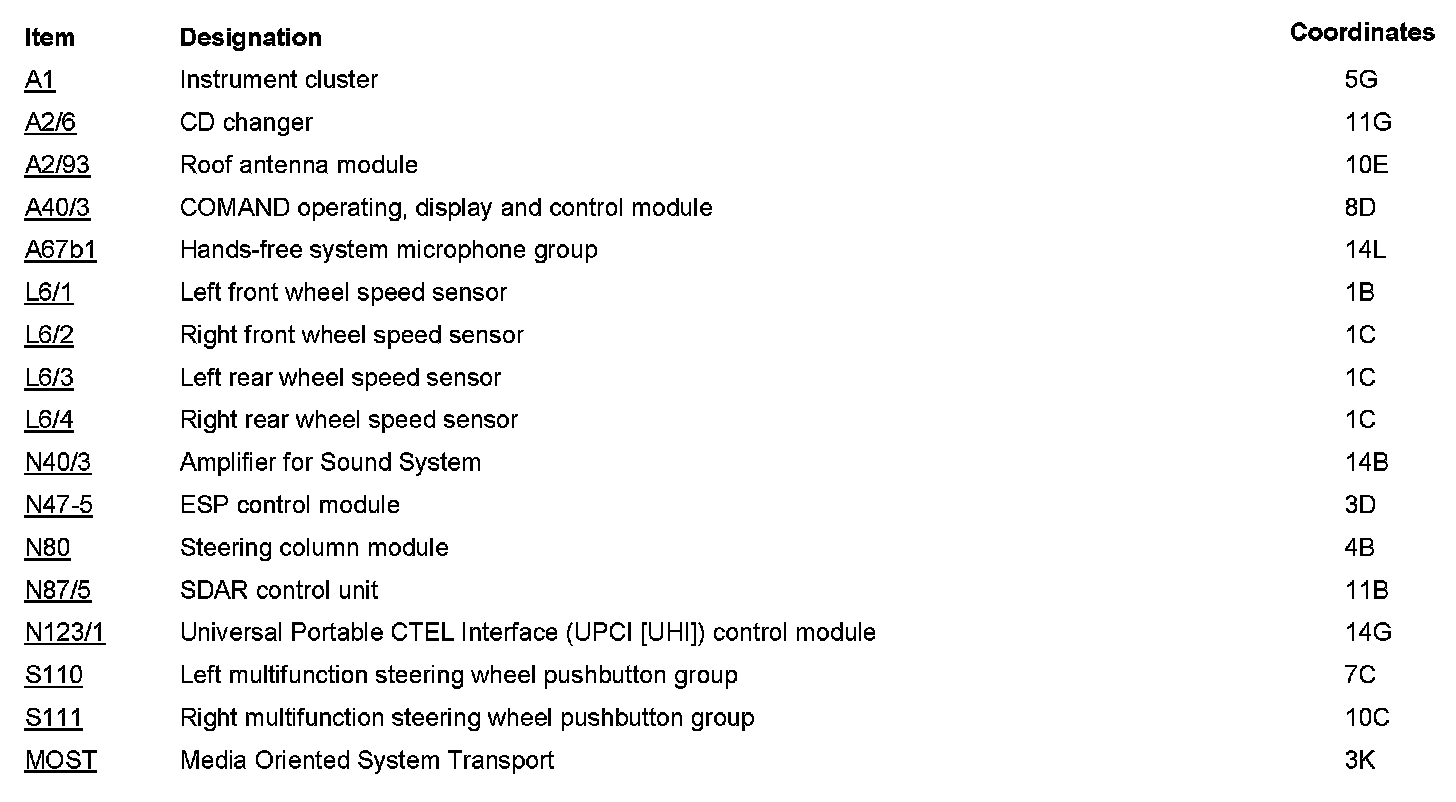

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
