PE82.60-P-2050MAC Electrical Function Schematic for Radio

Electrical Function Schematic for Radio PE82.60-P-2050MAC
- with CODE (352) COMAND operating and display system
- with CODE (498) Japan version
- up to model year 2008

Function Diagram:

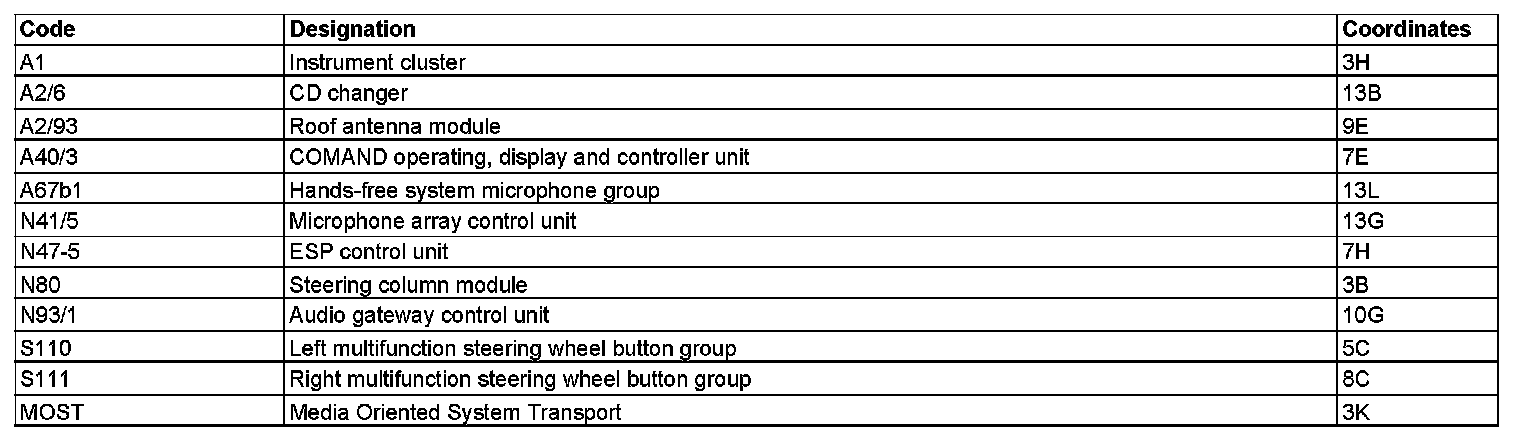

Component Description/Coordinates, A1 To MOST:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
