PE09.00-P-2050MAB Electrical Function Schematic for Charging

Electrical Function Schematic for Charging PE09.00-P-2050MAB

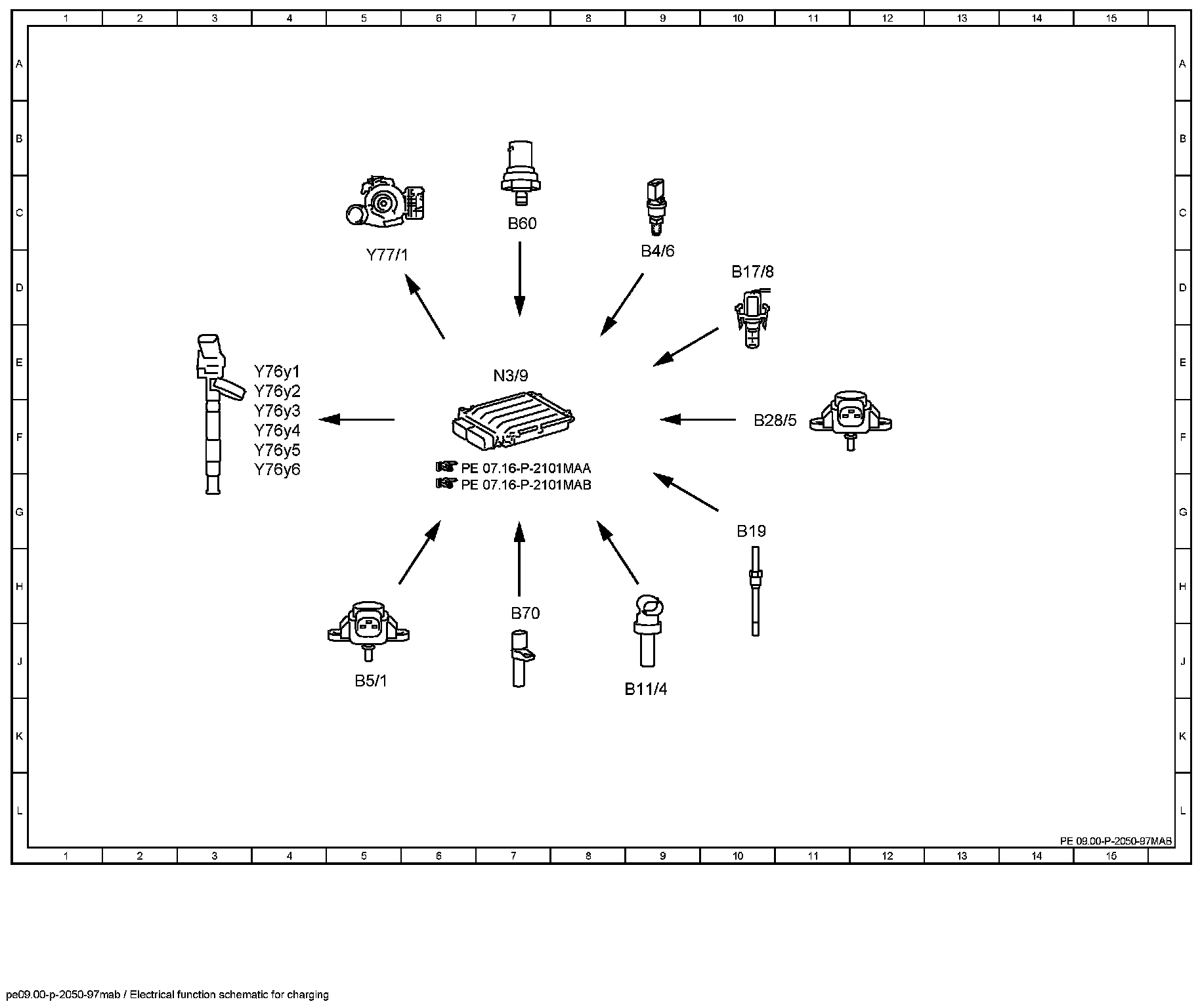

Function Diagram:

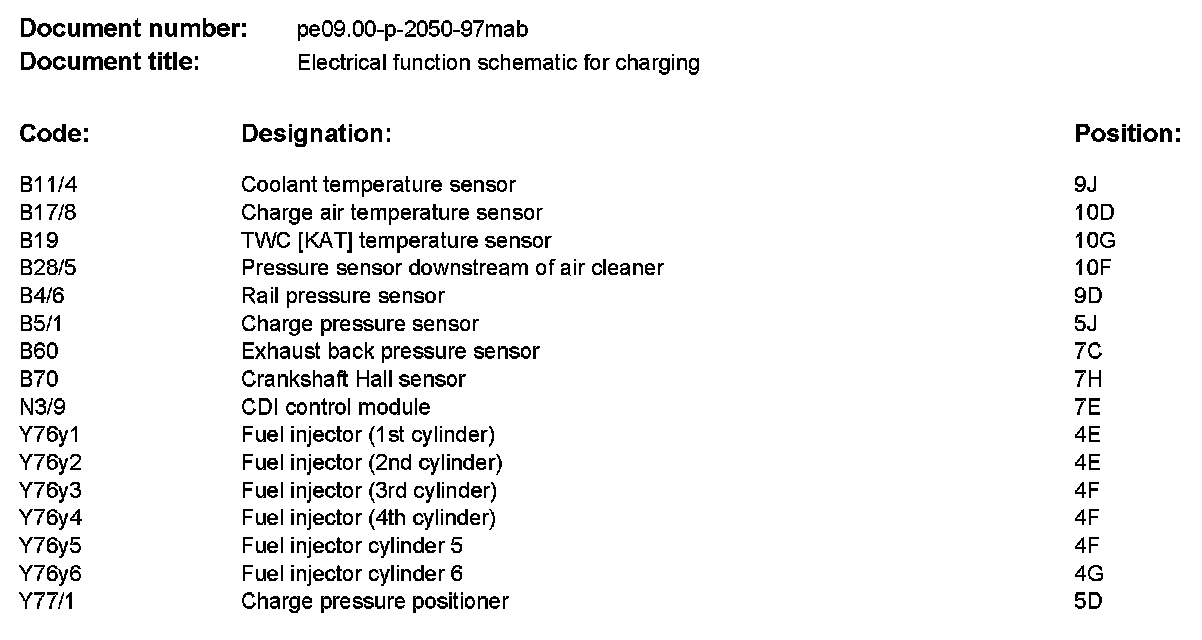

Component Description/Coordinates, B11/4 To Y77/1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
