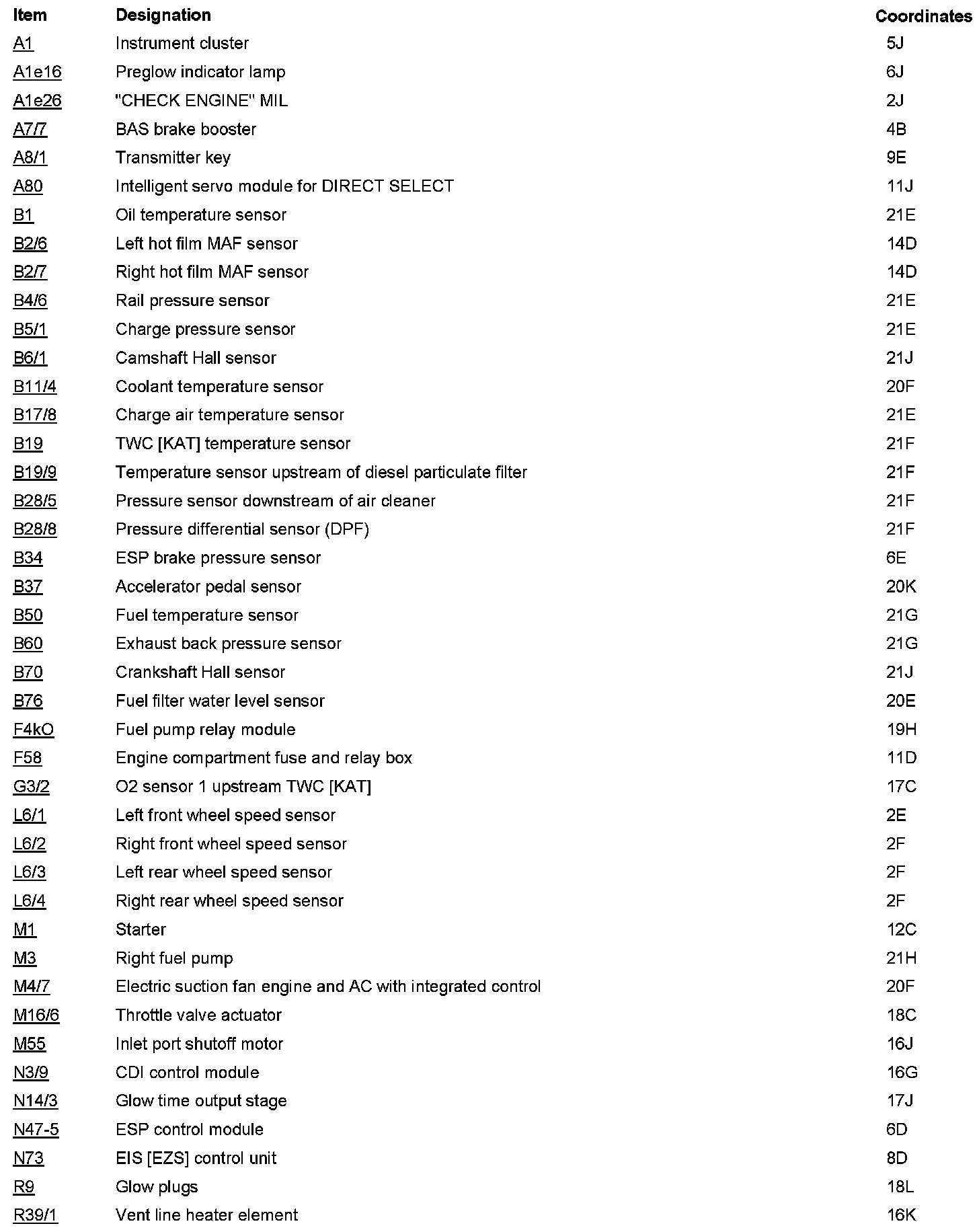

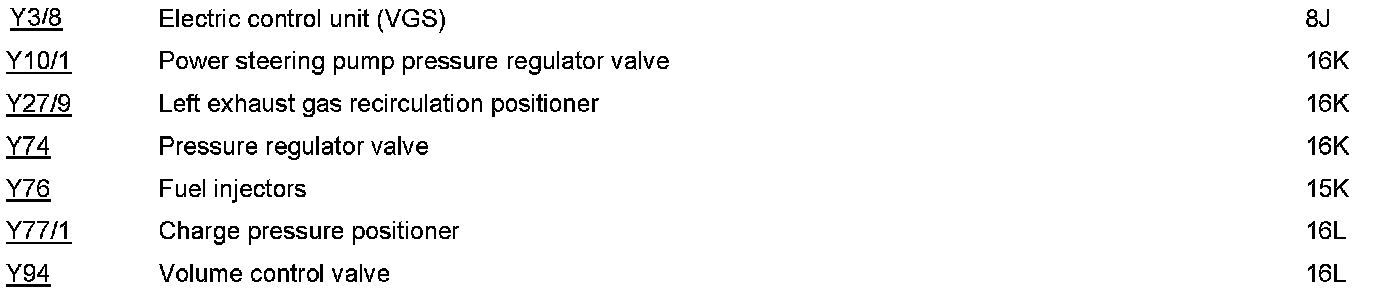

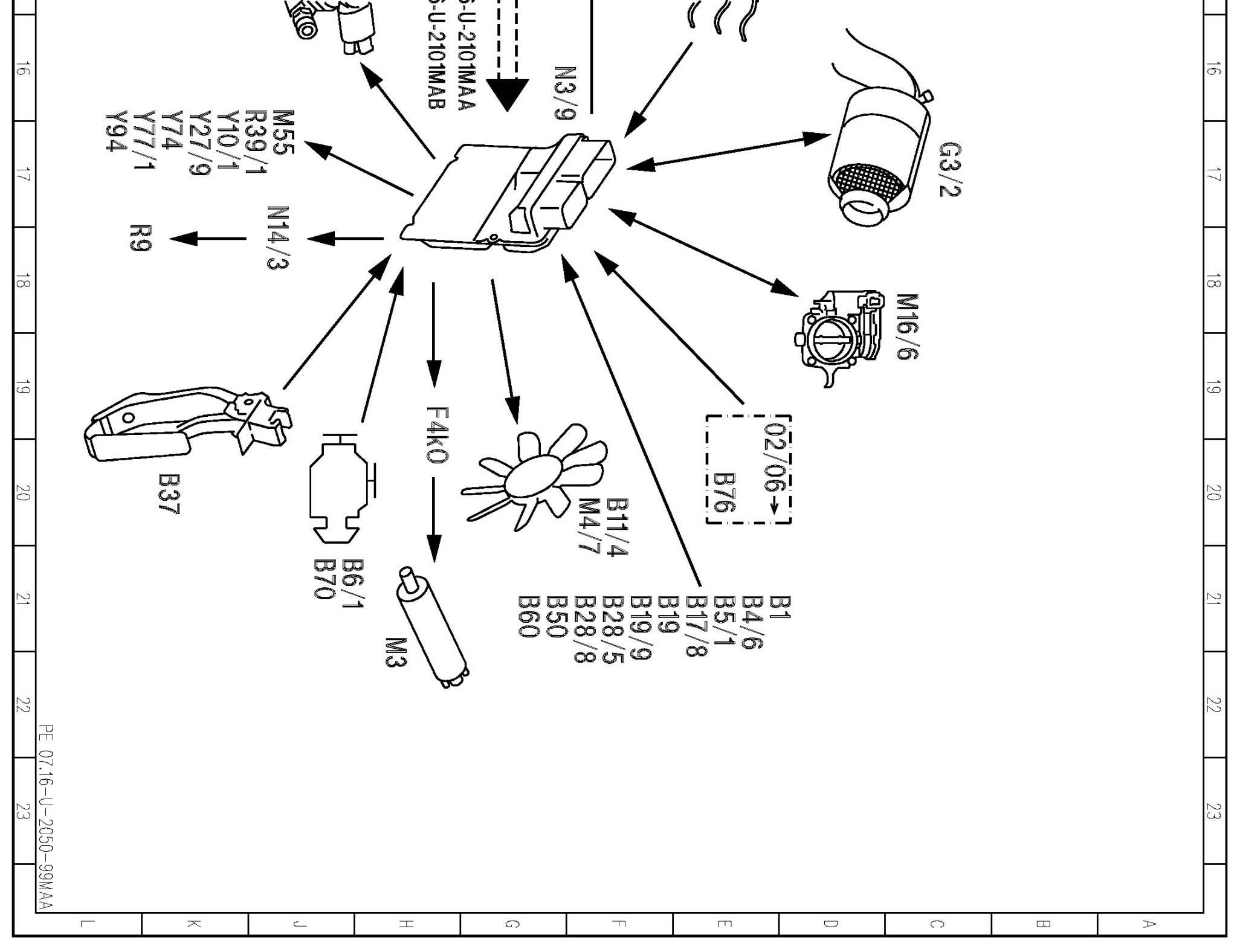

PE07.16-U-2050MAA Electrical Function Diagram For Common Rail Diesel Injection (CDI)



PE07.16-U-2050MAA Electrical Function Diagram For Common Rail Diesel Injection (CDI)
- up to 08 CDI 4.11


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
