PE07.10-U-2714MAA Electrical Function Schematic For Deceleration Fuel Shutoff

PE07.10-U-2714MAA Electrical Function Schematic For Deceleration Fuel Shutoff

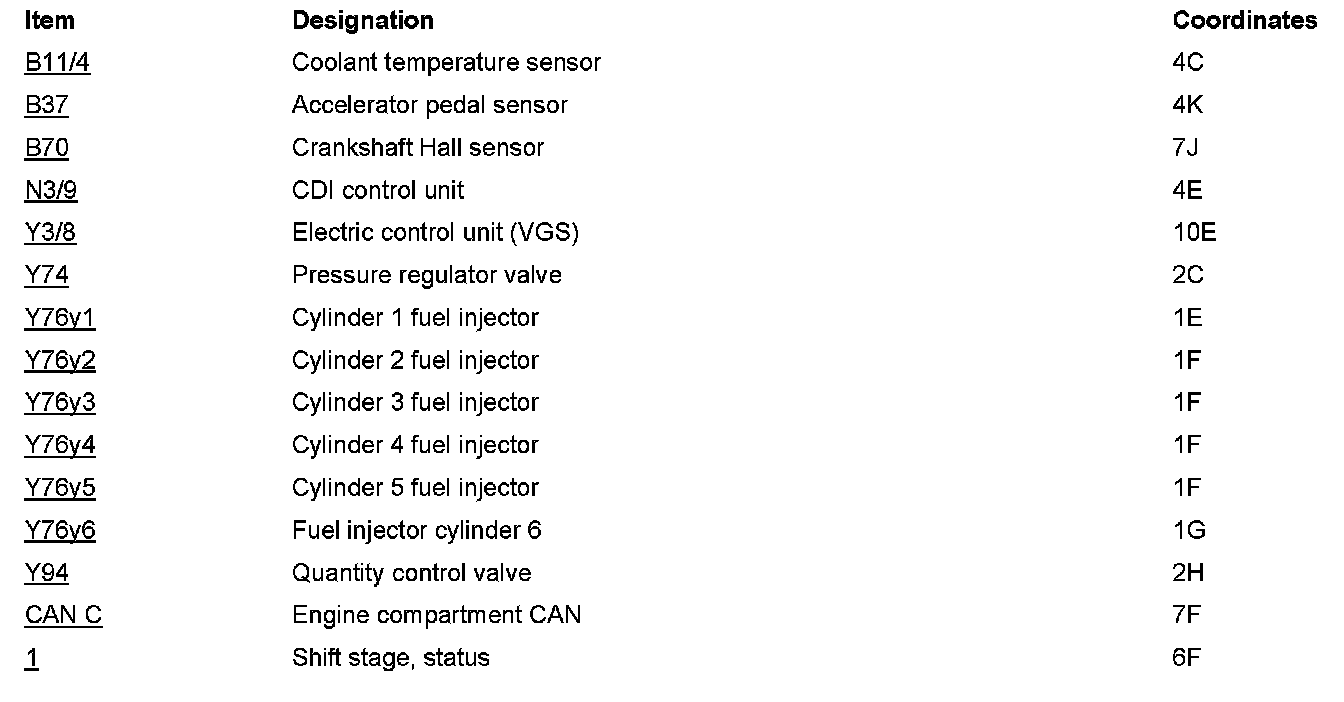

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
