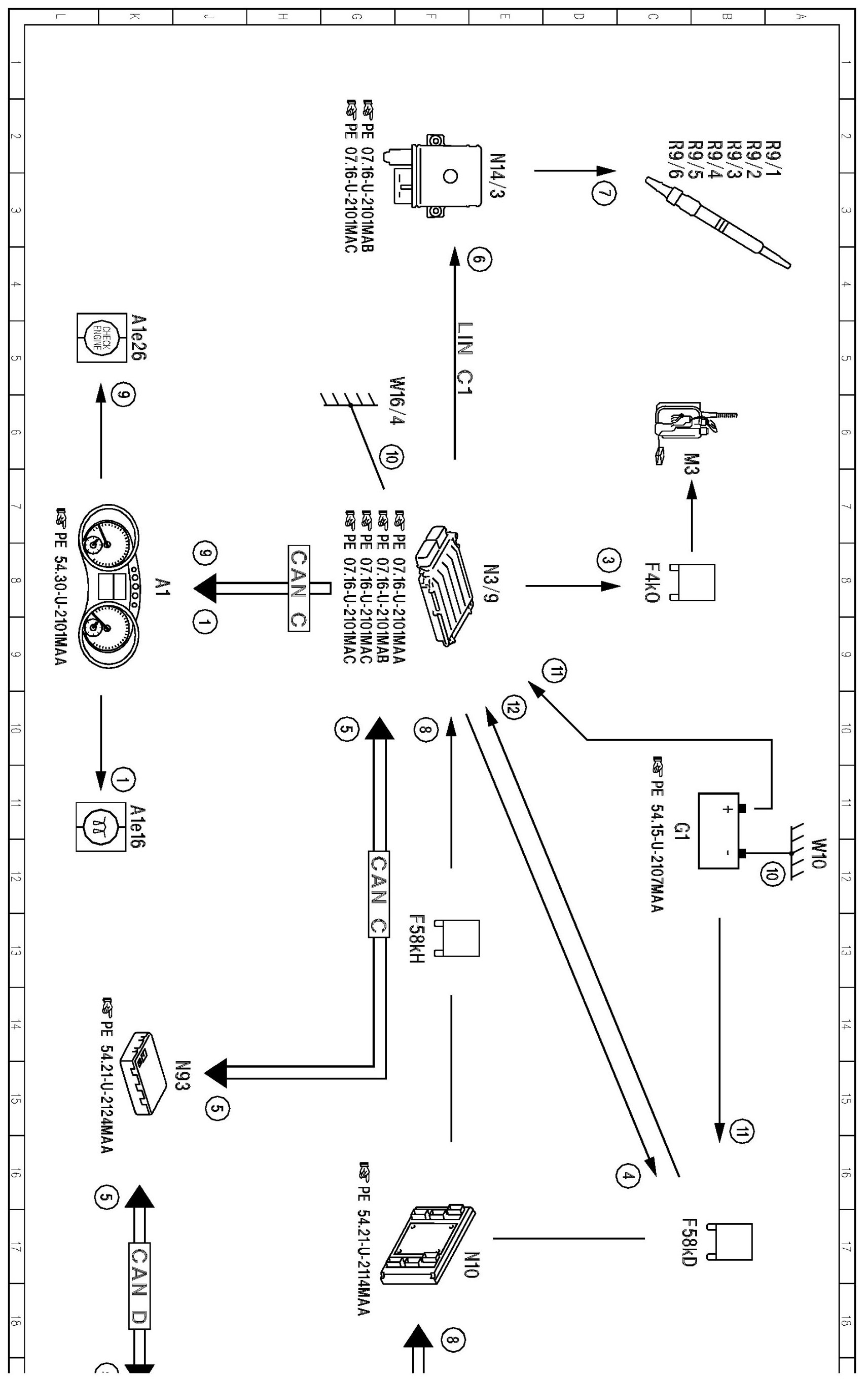

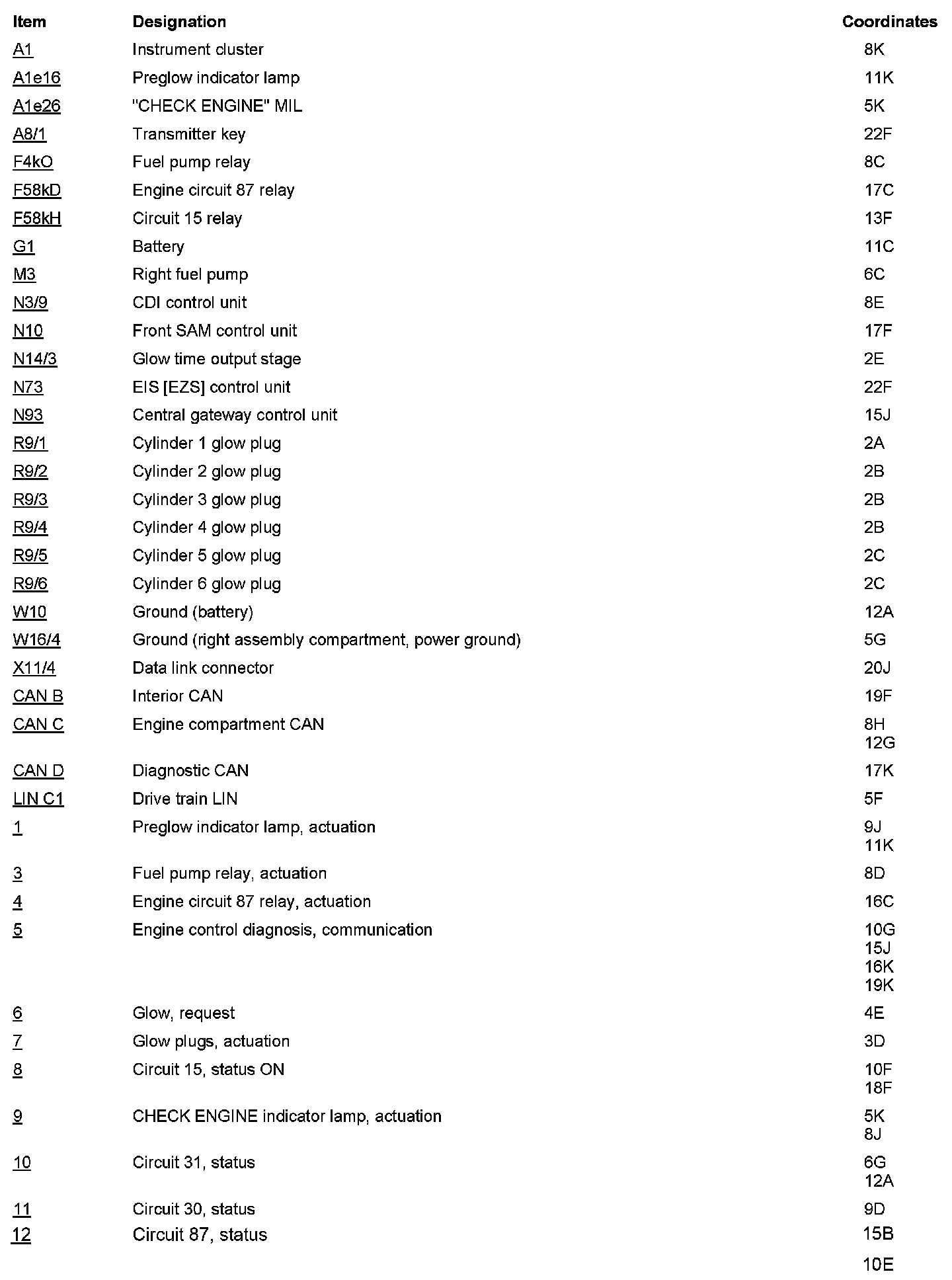

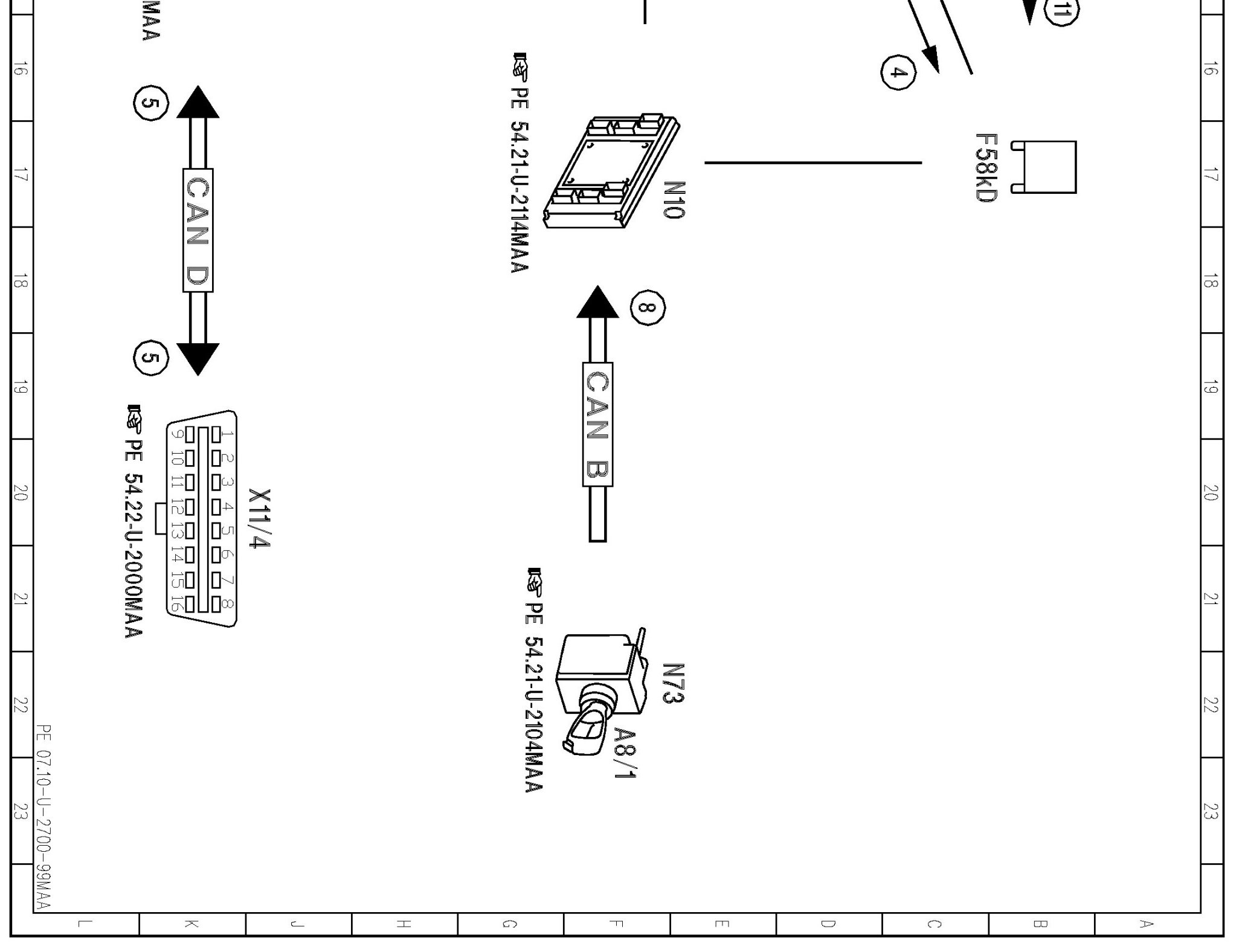

PE07.10-U-2700MAA Electrical Function Schematic, Ignition ON

PE07.10-U-2700MAA Electrical Function Schematic, Ignition ON















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
