Home >> Mercedes Benz Truck >> 2008 >> ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940) >> Repair and Diagnosis >> Diagrams >> Connectors >> GF00.19-P-1000-38MAA Location and Assignment of Line and Plug Connectors - Front Bumper

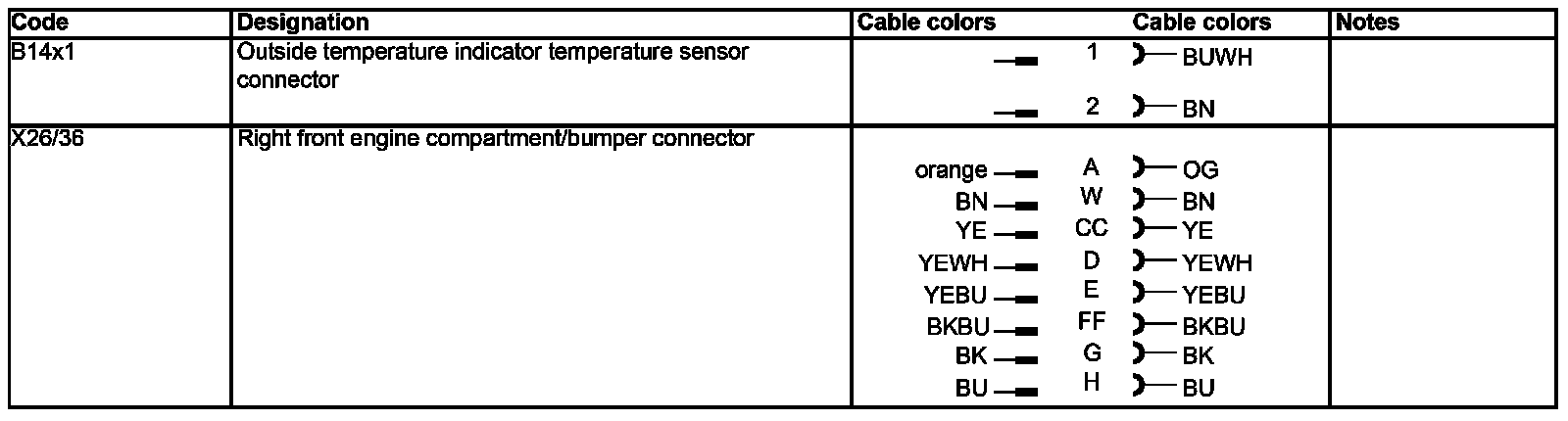

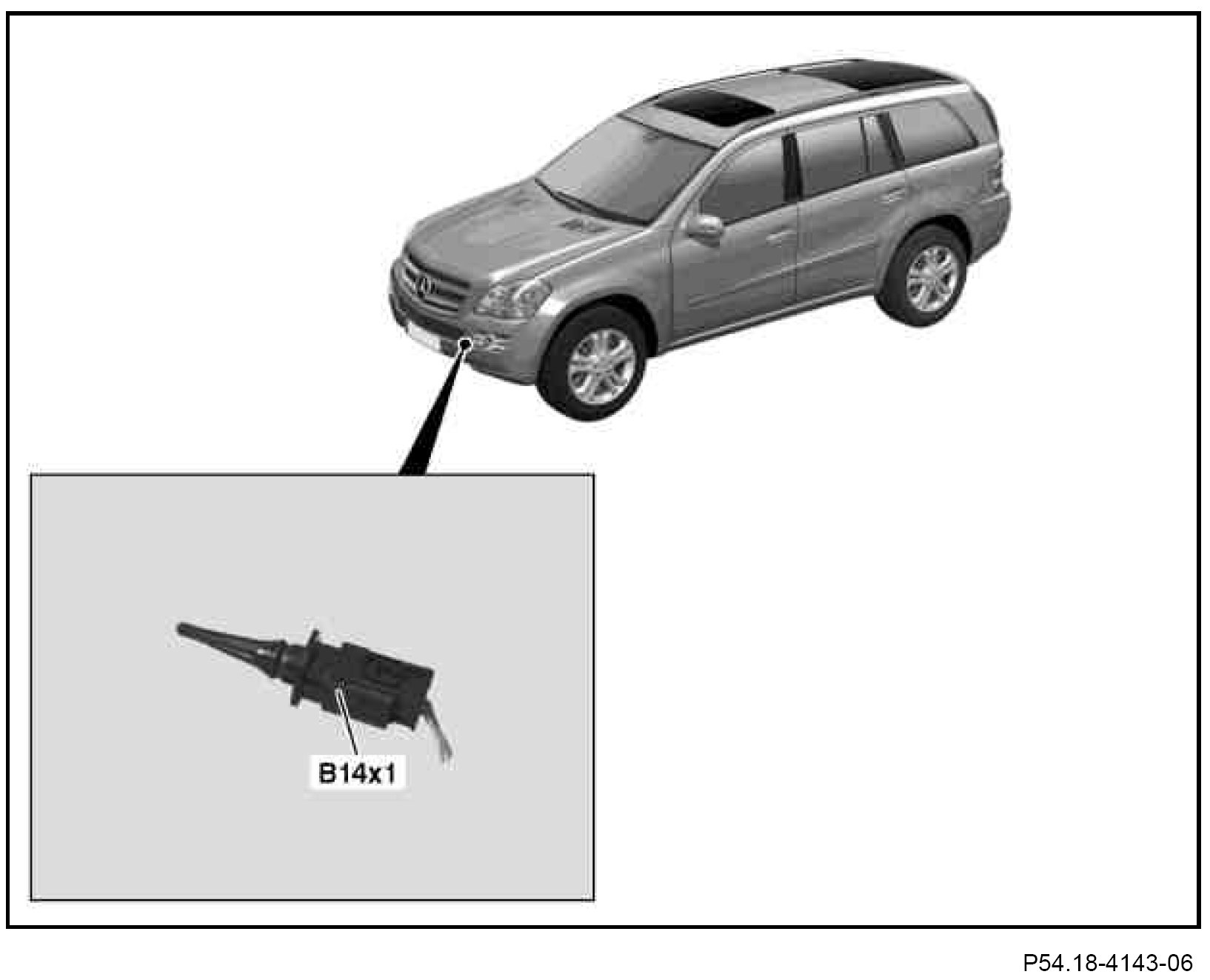

GF00.19-P-1000-38MAA Location and Assignment of Line and Plug Connectors - Front Bumper



GF00.19-P-1000-38MAA Location and Assignment of Line and Plug Connectors - Front Bumper
