GF00.19-P-1000-07MAA Location and Assignment of Line and Plug Connectors, Trunk, Right



GF00.19-P-1000-07MAA Location And Assignment Of Line And Plug Connectors, Trunk, Right

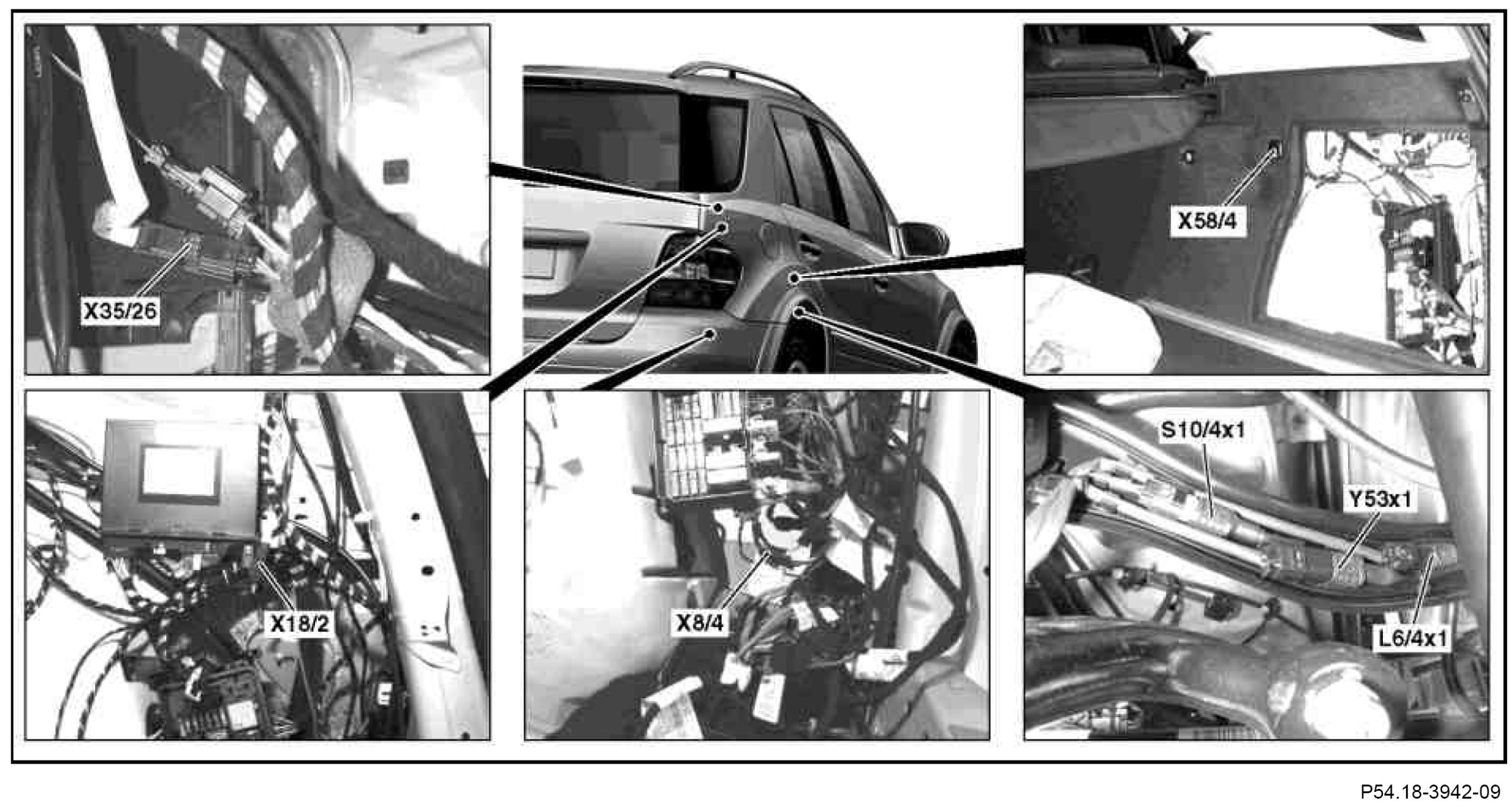

Part 1:

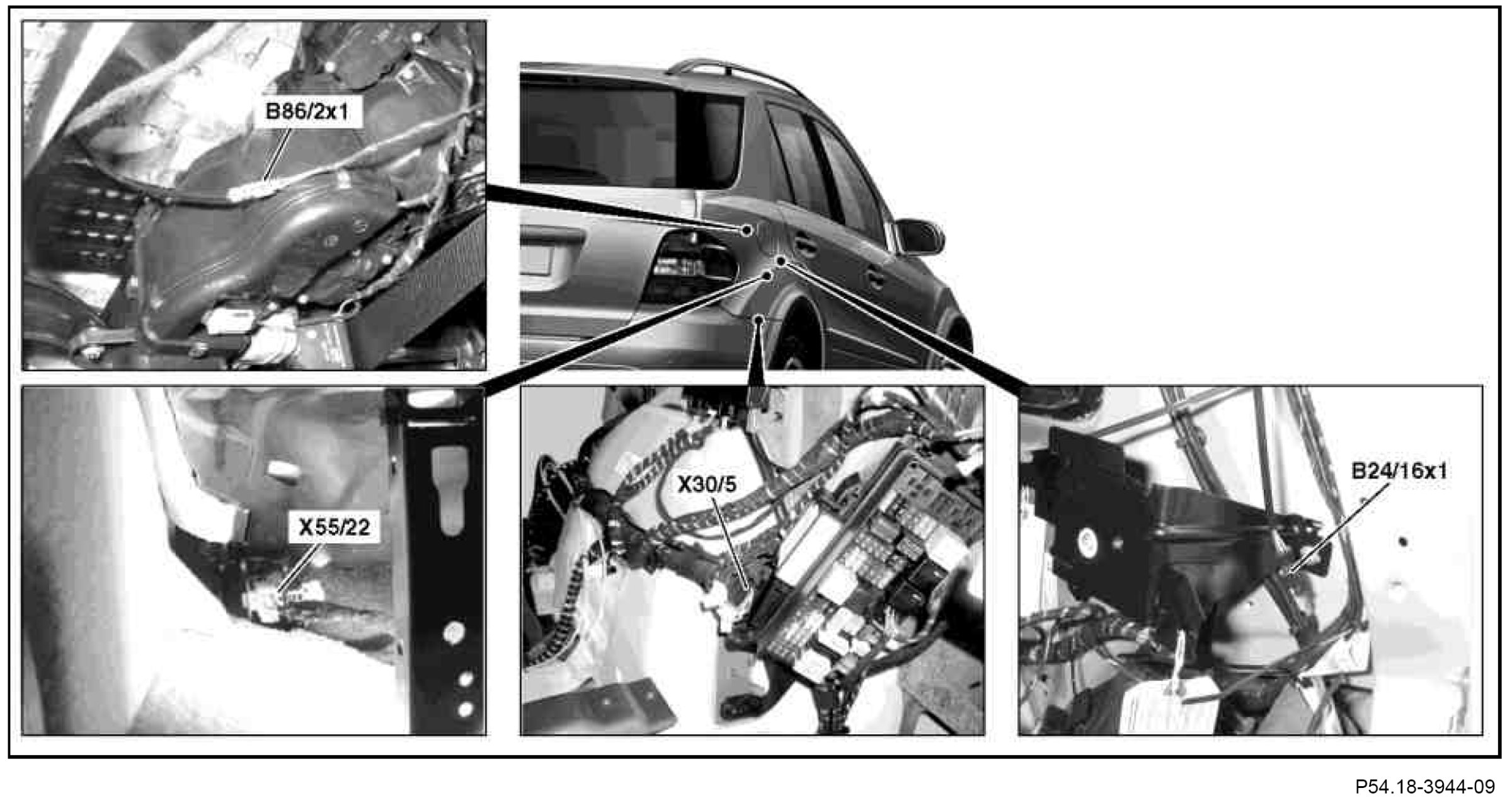

Part 2:

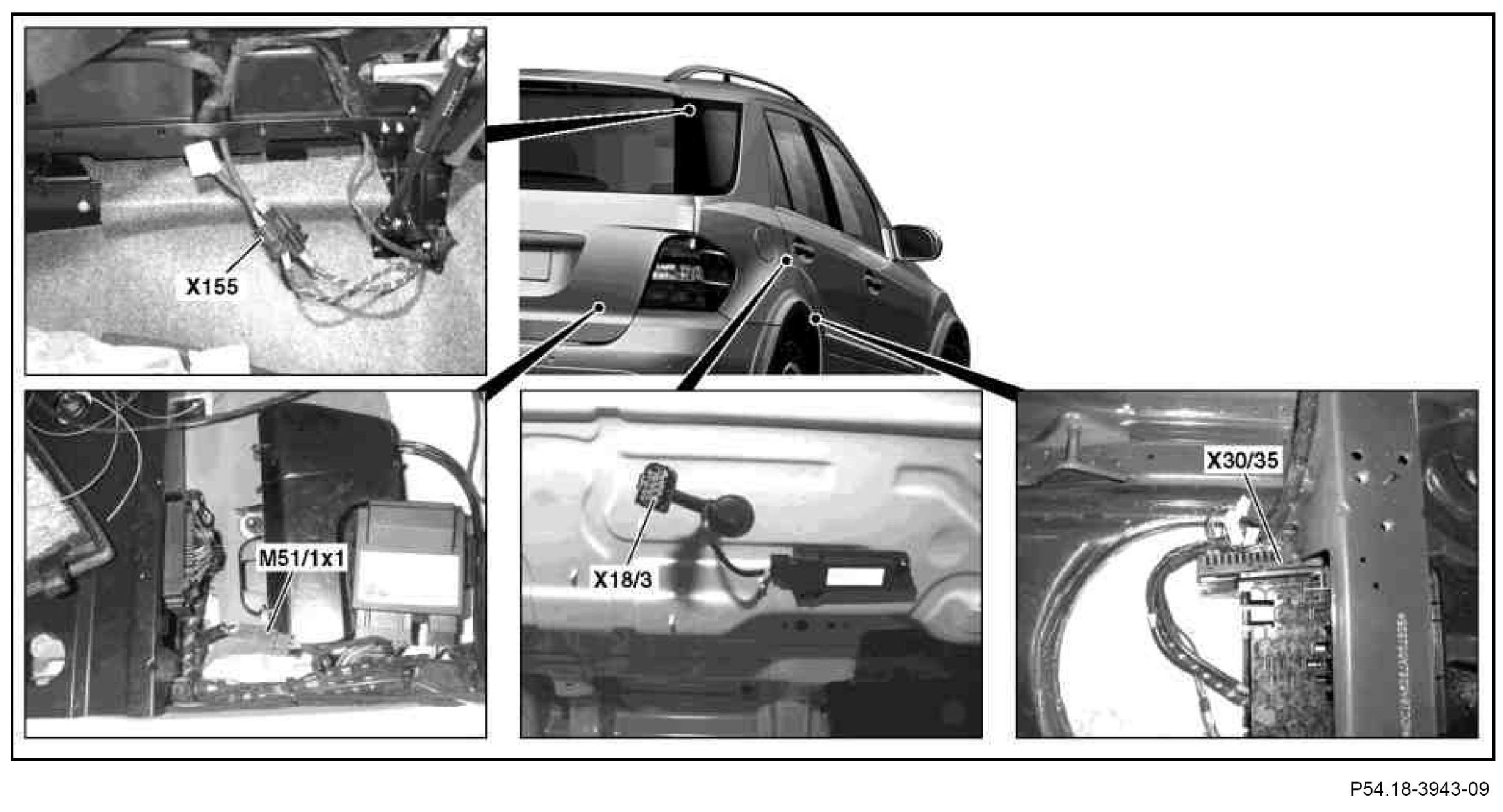

Part 3:
