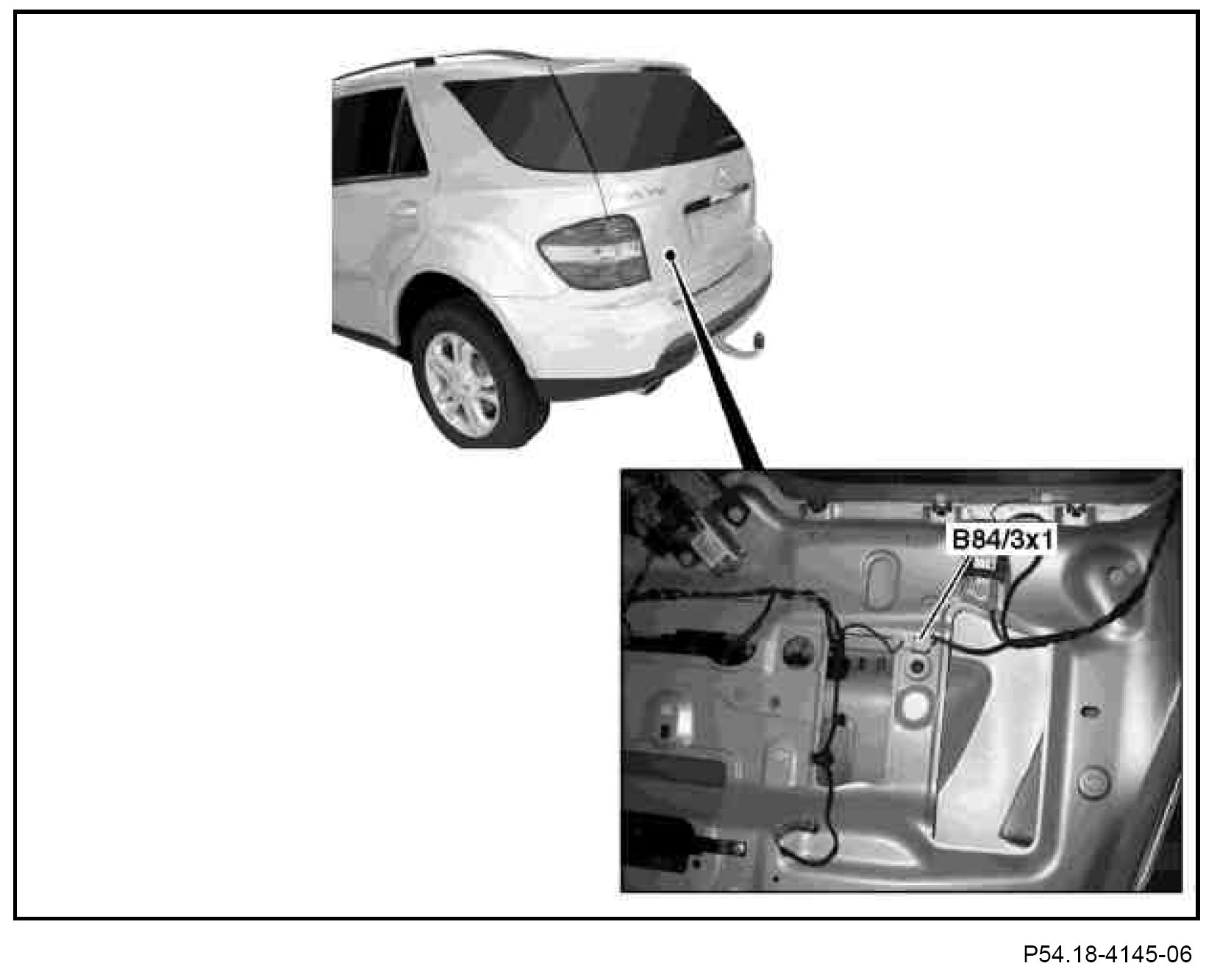

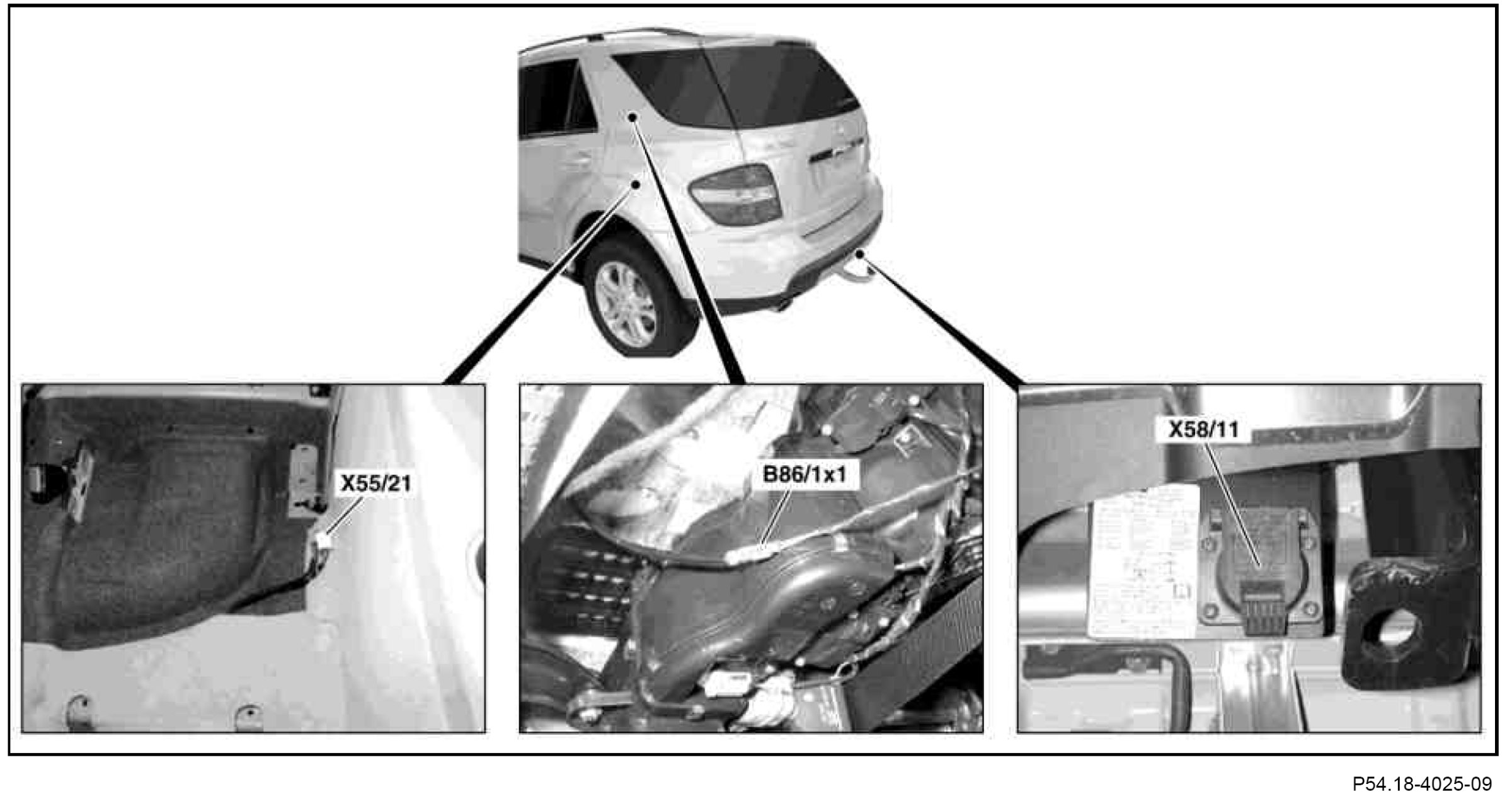

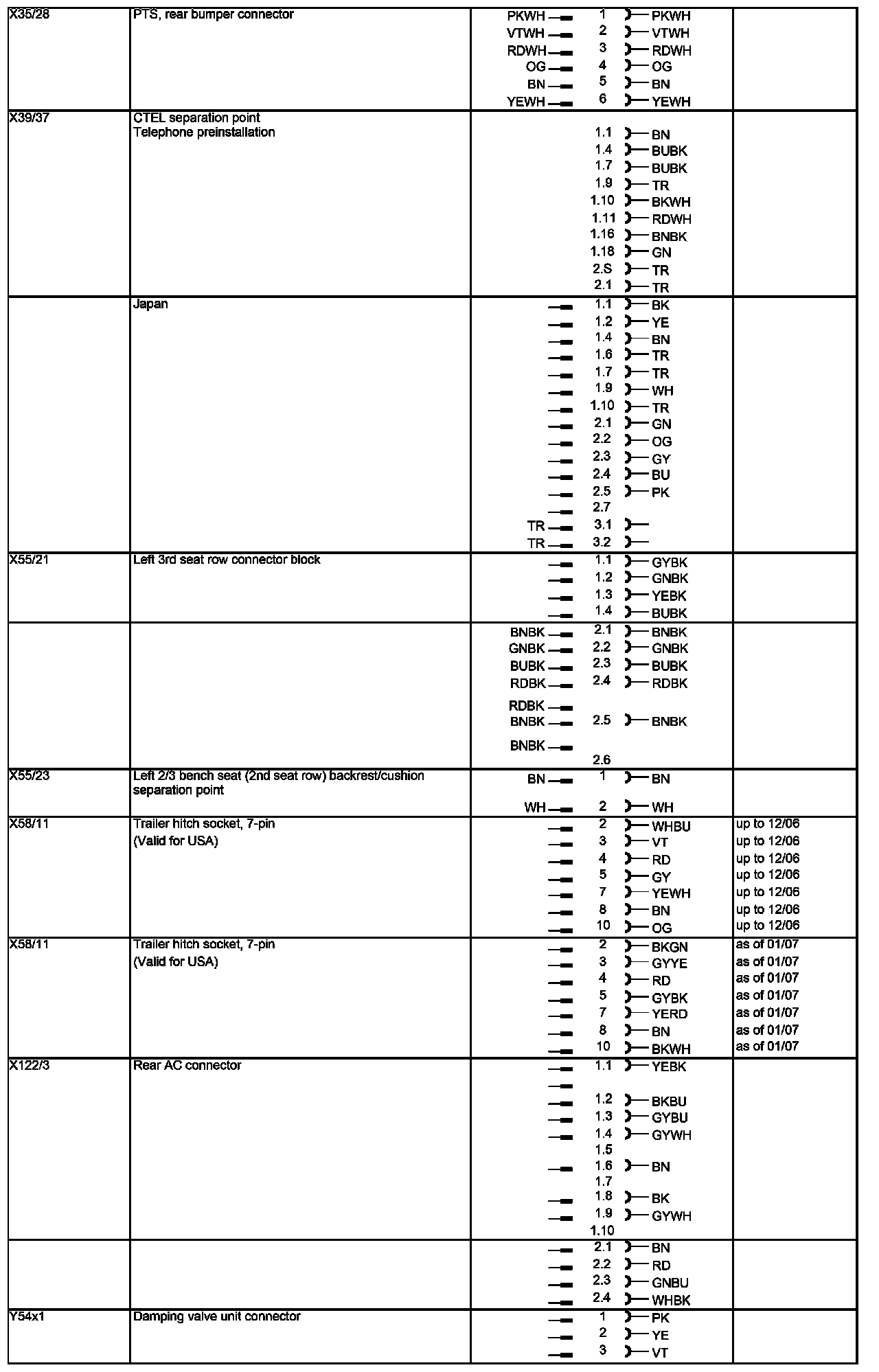

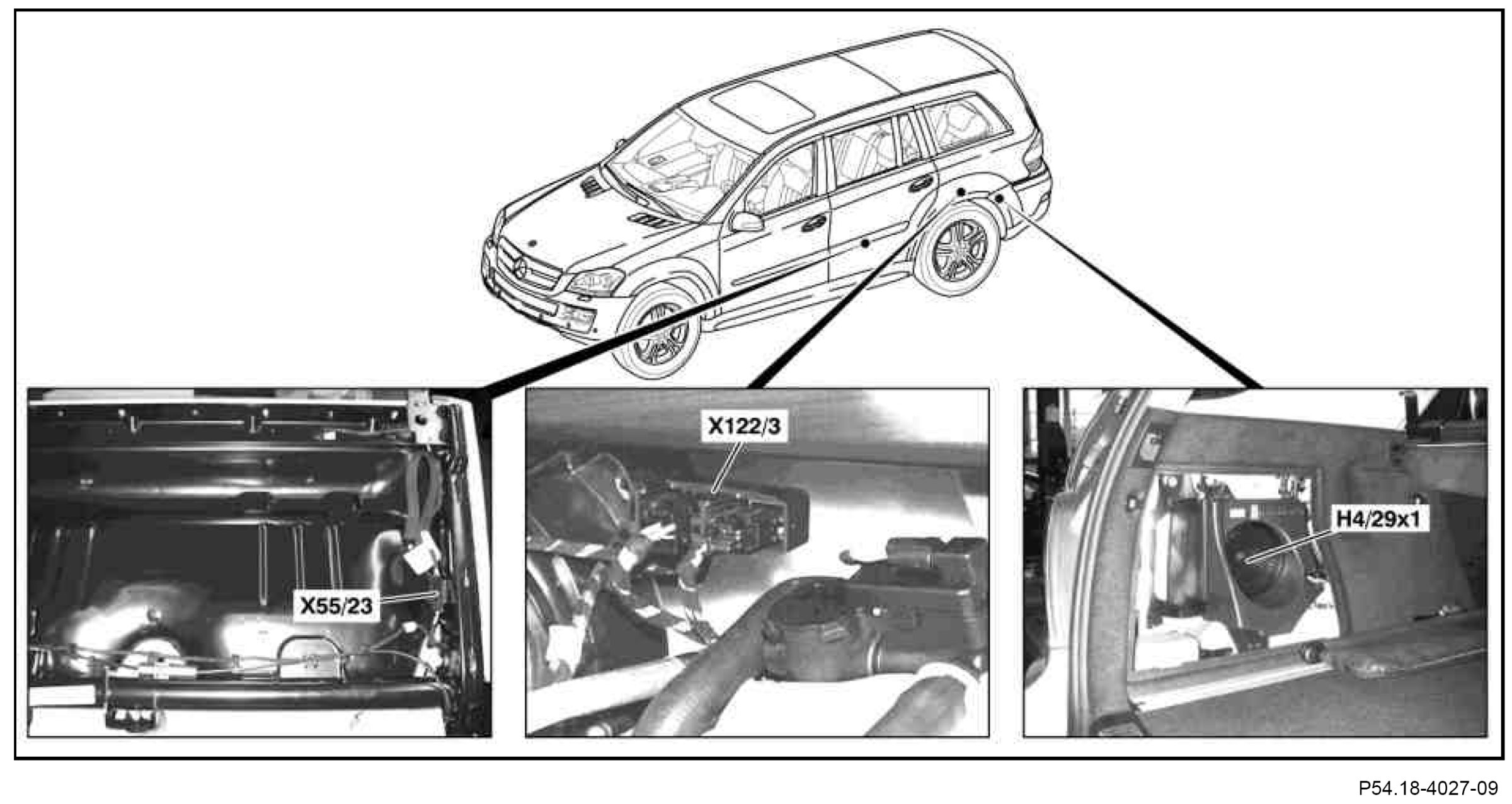

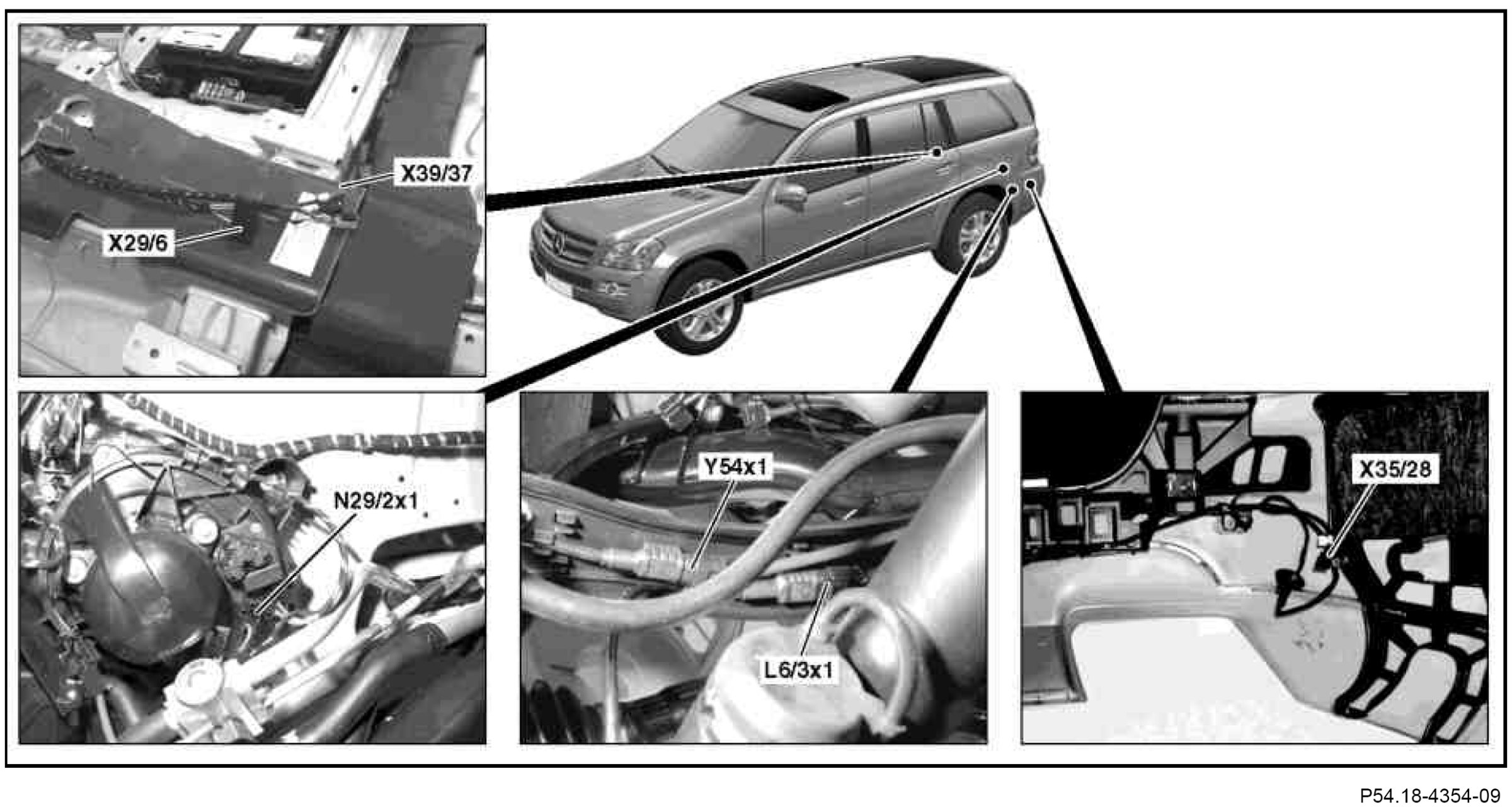

GF00.19-P-1000-06MAA Location and Assignment of Line and Plug Connectors, Trunk, Left



GF00.19-P-1000-06MAA Location And Assignment Of Line And Plug Connectors, Trunk, Left


















Part 1:





Part 2:
