AR35.10-P-0040GZ Remove/Install Front and Rear Rubber Bushings In Rear Axle Mount

AR35.10-P-0040GZ Remove/Install Front And Rear Rubber Bushings In Rear Axle Mount
MODEL 164

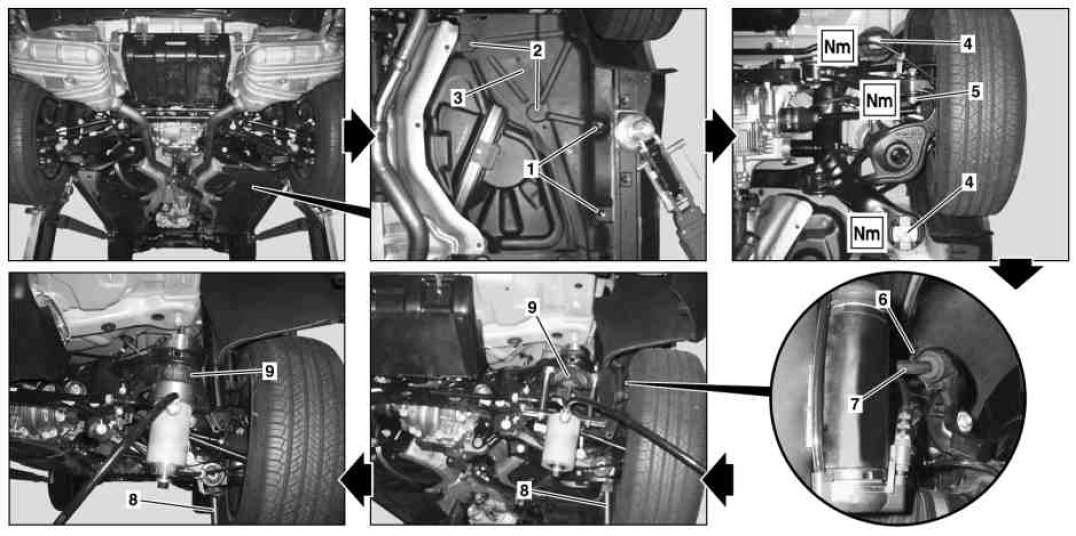

Shown on model 164.1: Right rear rubber mount on vehicle with air suspension

1 Bolts
2 Nuts
3 Side underfloor paneling
4 Bolts
5 Nut
6 Brake hose bracket
7 Brake hose
8 Support brace
9 Removal and insertion tool


























164 589 01 43 00
Extraction and insertion tool





652 589 00 33 21
Hand pump





652 589 00 33 22
Hollow cylinder





652 589 00 33 23
Hydraulic hose (complete)





652 589 00 33 11
Threaded spindle





169 589 02 31 00
Vehicle lift safety device





164 589 02 07 00
Retainer wrench





001 589 01 63 00
Retaining belt
