ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Frame
>>
Subframe
>>
Front Subframe
>>
Service and Repair
>>
Procedures
Procedures
AR40.30-P-0450GZ Measure front axle carrier (when removed)

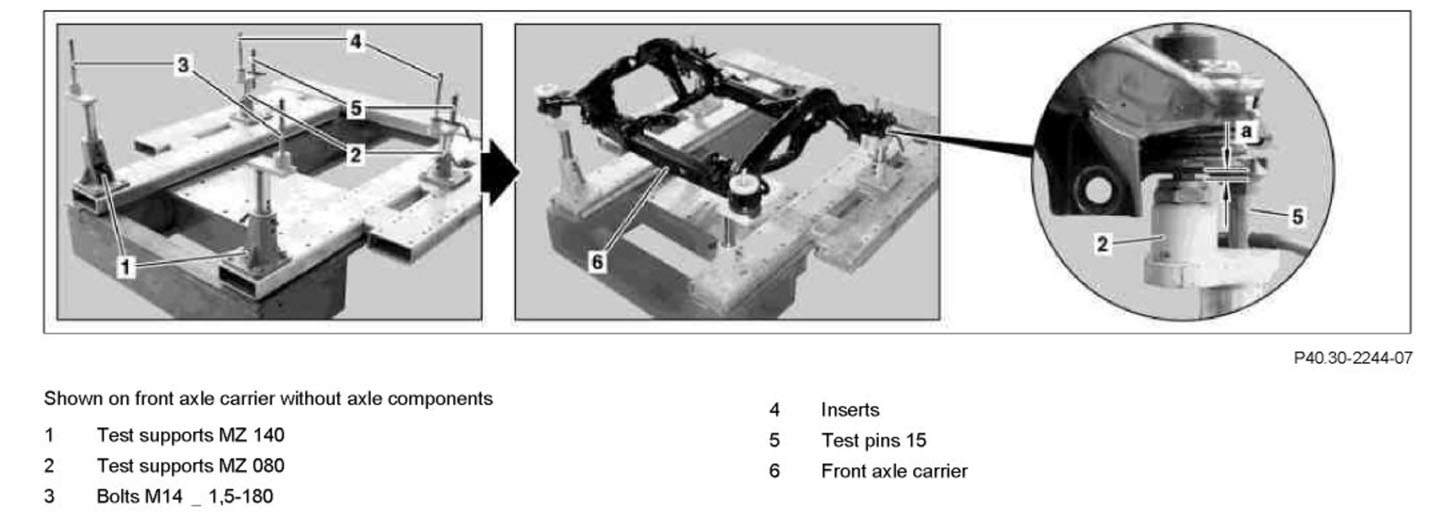

Component Identification:

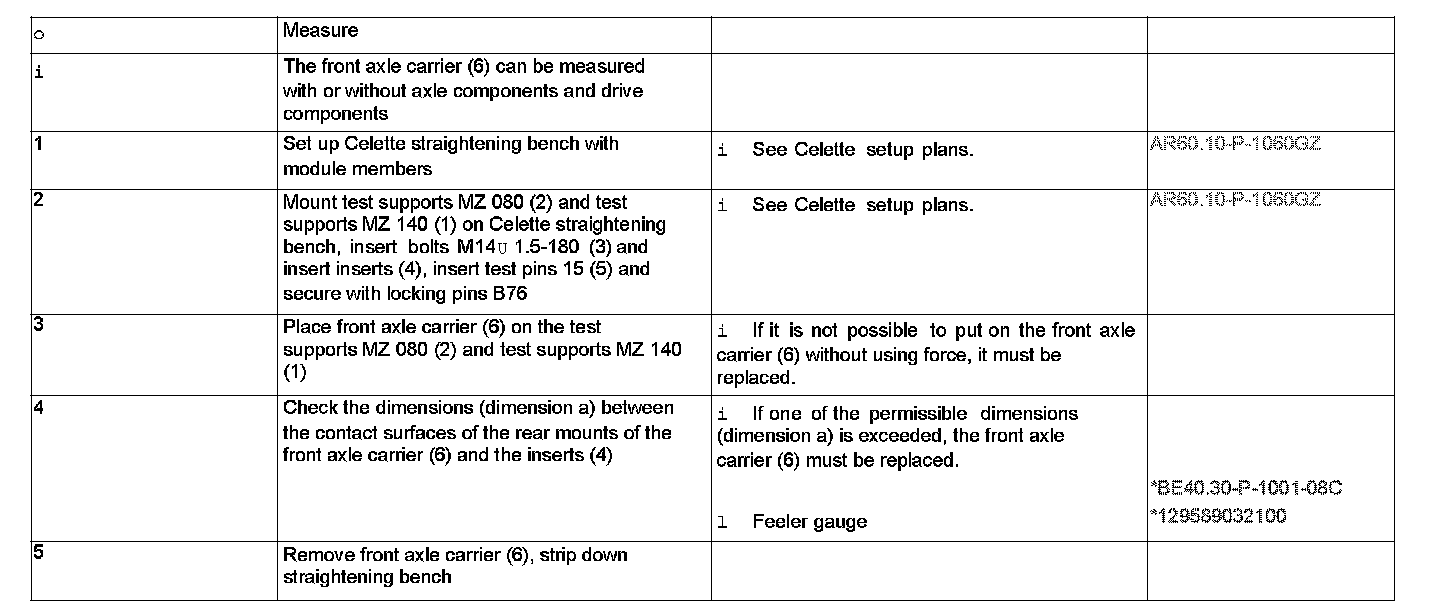

Steps 1-5:

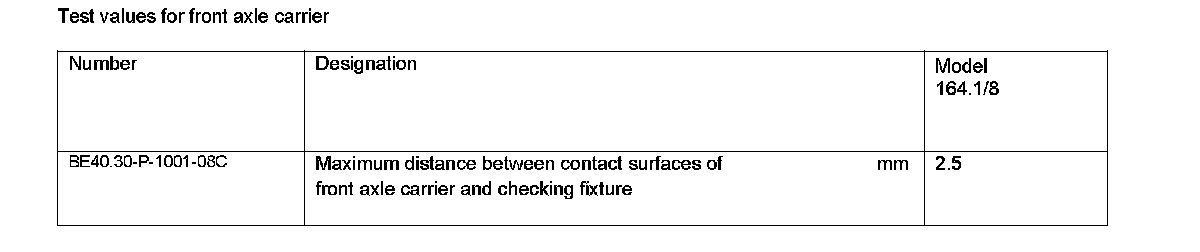

Test values for front axle carrier:
Special Tools:
