AR72.20-P-3650GZ Remove/Install Rear-End Door Handle Strip



AR72.20-P-3650GZ Remove/Install Rear-end Door Handle Strip
- Outer rear-end door handle strip

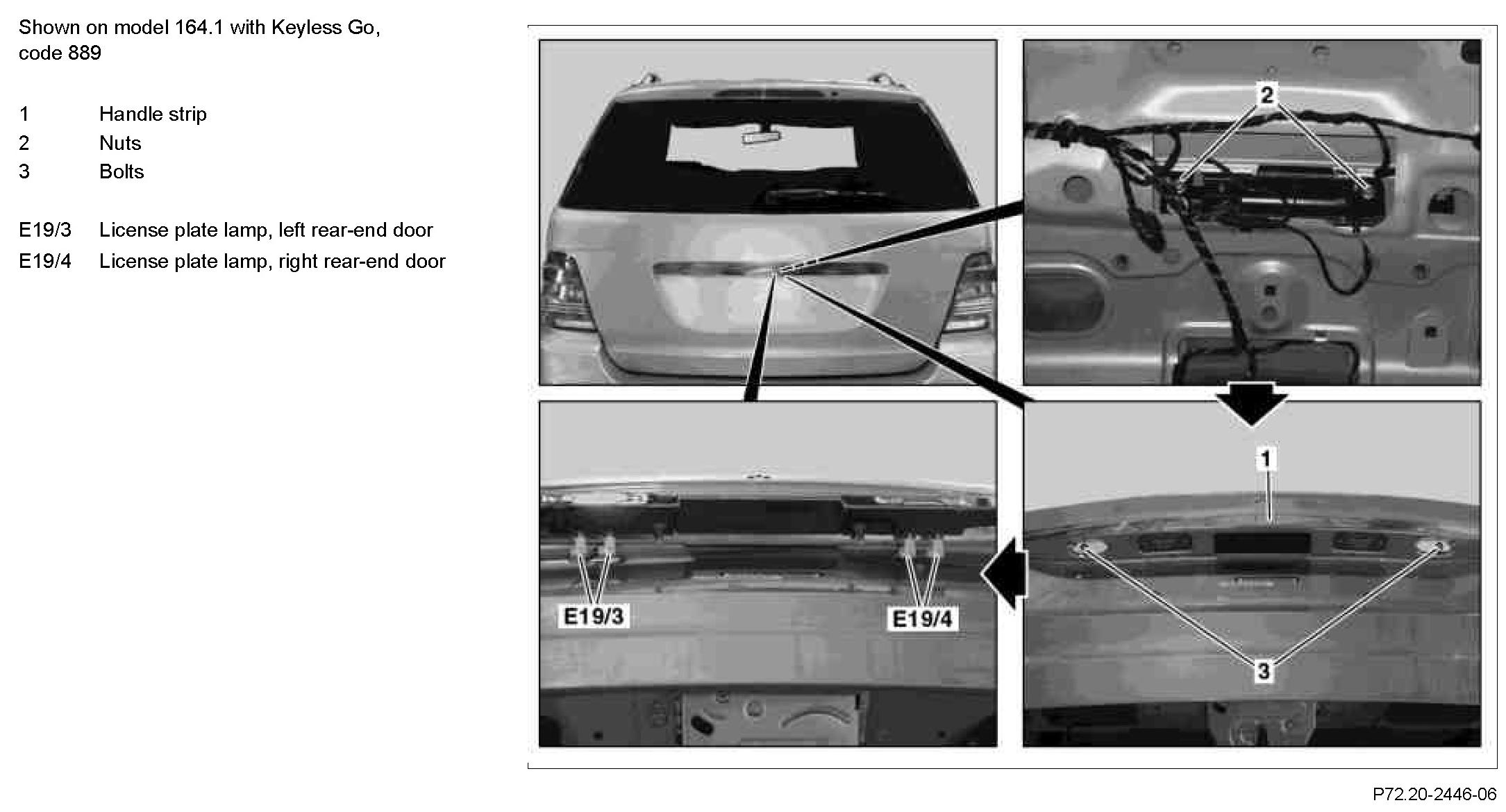

Component Identification:

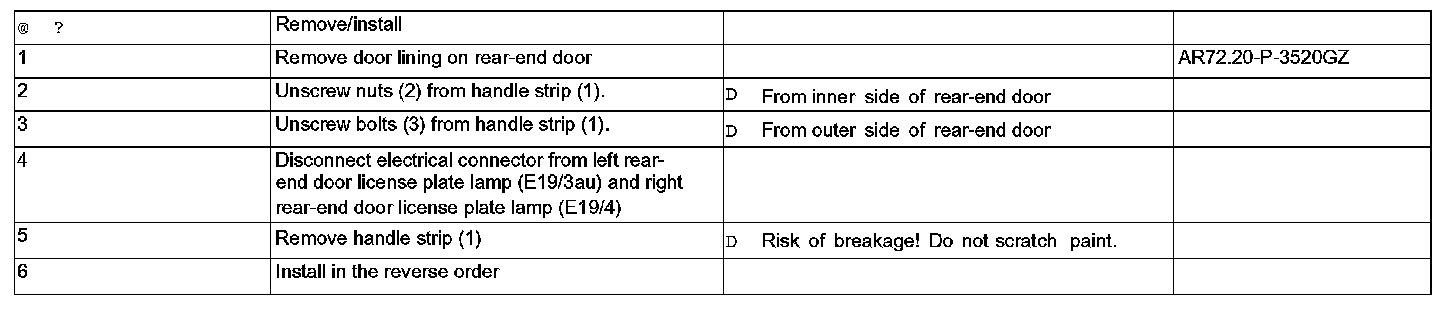

Steps 1 - 6:
