AR68.80-P-5800GZ Remove/Install Load Compartment Floor
AR68.80-P-5800GZ Remove/Install Load Compartment Floor
AR68.80-P-5800GZ Remove/Install Load Compartment Floor
Component Identification:

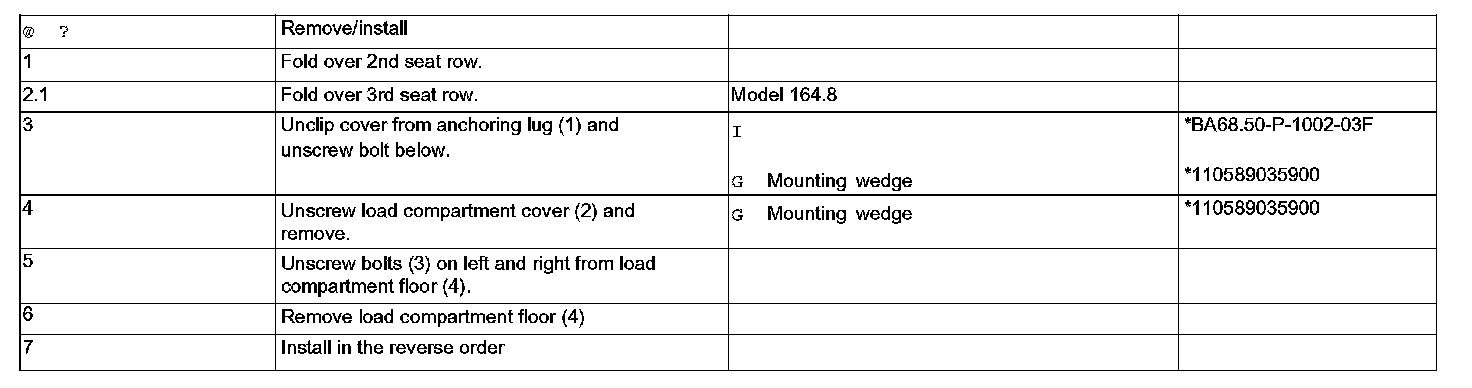

Steps 1 - 7:

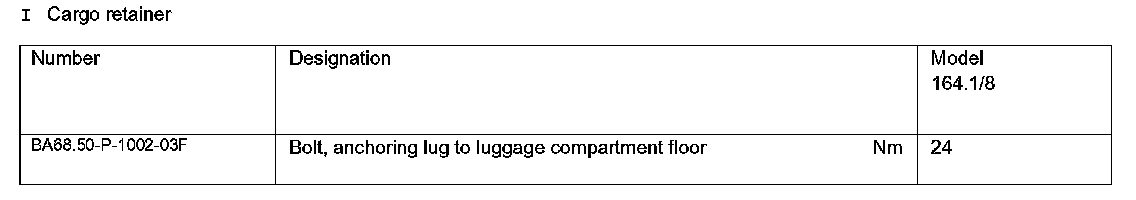

Cargo Retainer:

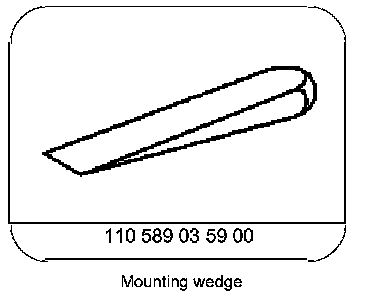

Special Tools:
