FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz Truck
>>
2007
>>
R 320 CDI (251.122) V6-3.0L DSL Turbo (642.950)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Suspension Control ( Automatic - Electronic )
>>
Level Control Solenoid Valve
>>
Service and Repair
Level Control Solenoid Valve: Service and Repair
AR32.31-P-0650RT Removing and installing level control valve unit
Component Identification:

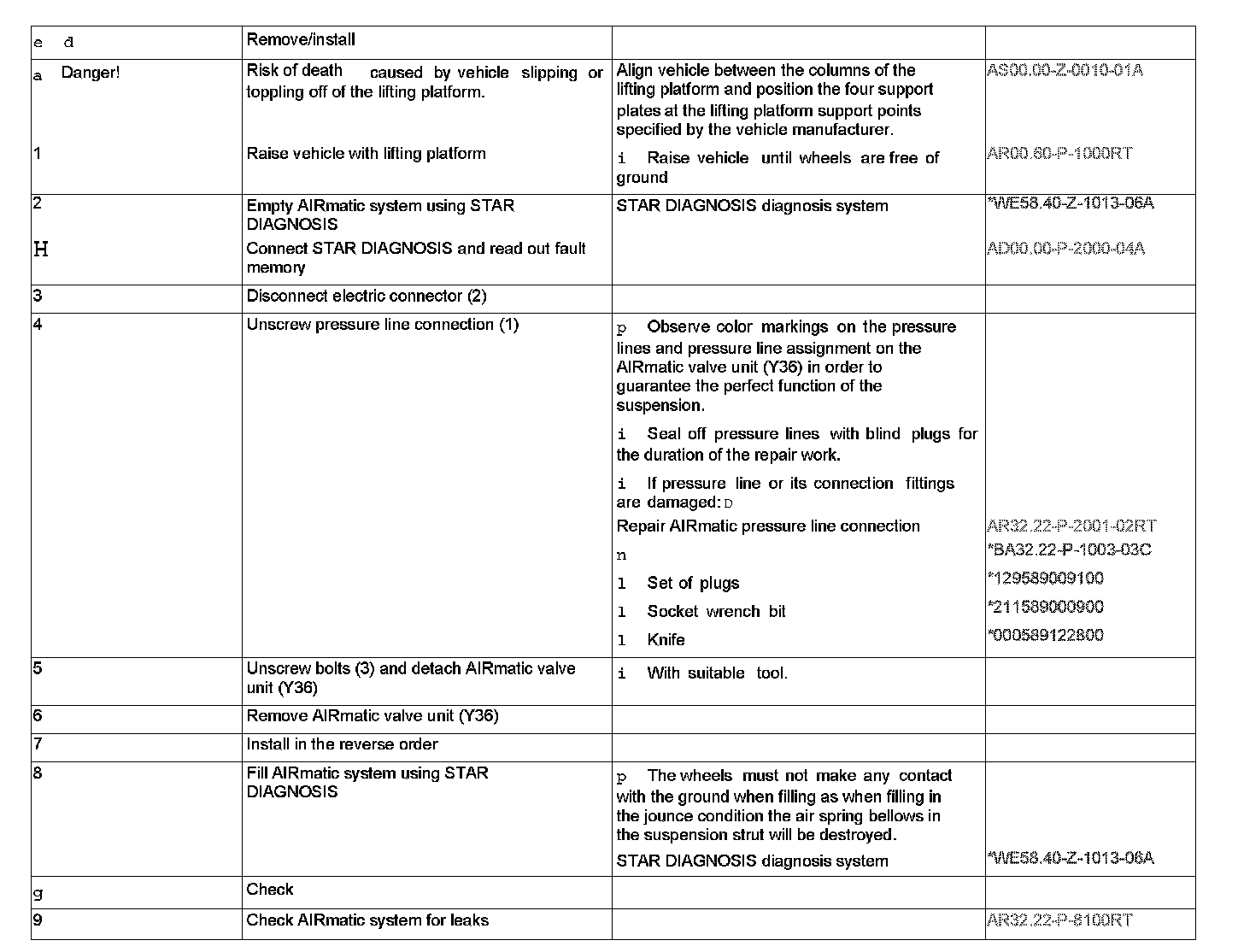

Steps 1-9:
Air suspension:

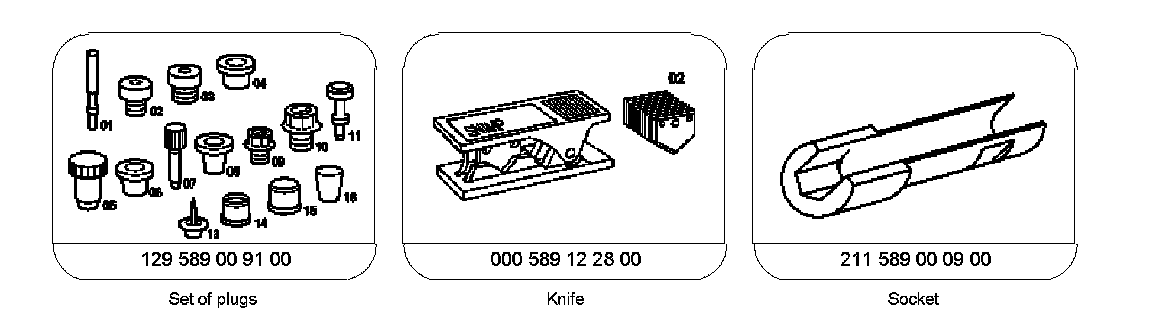

Special Tools:

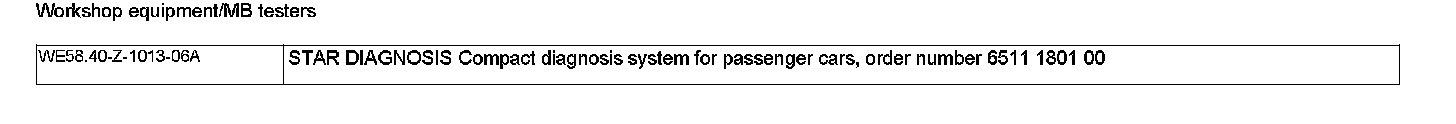

Workshop equipment/MB testers:
