GF32.22-P-0003-03RT AIRmatic - Location of the Electrical/Electronic Components



GF32.22-P-0003-03RT AIRmatic - location of the electrical/electronic components
- with CODE (489) Airmatic (air suspension with level adjustment and adaptive damping system ADS)
- up to model year 08

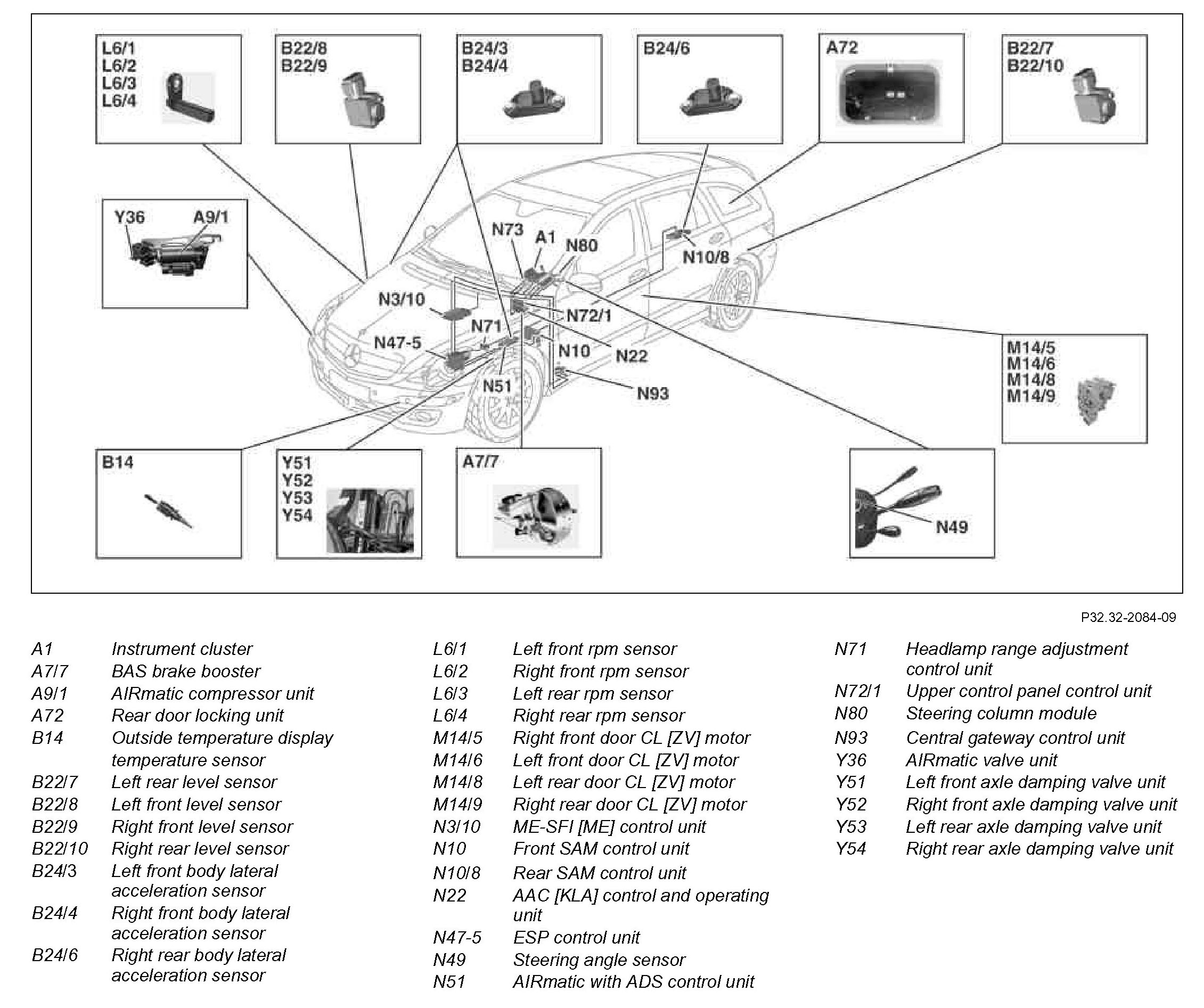

Component Identification:
