Fuse and Relay Box Locations



Fuse Assignment

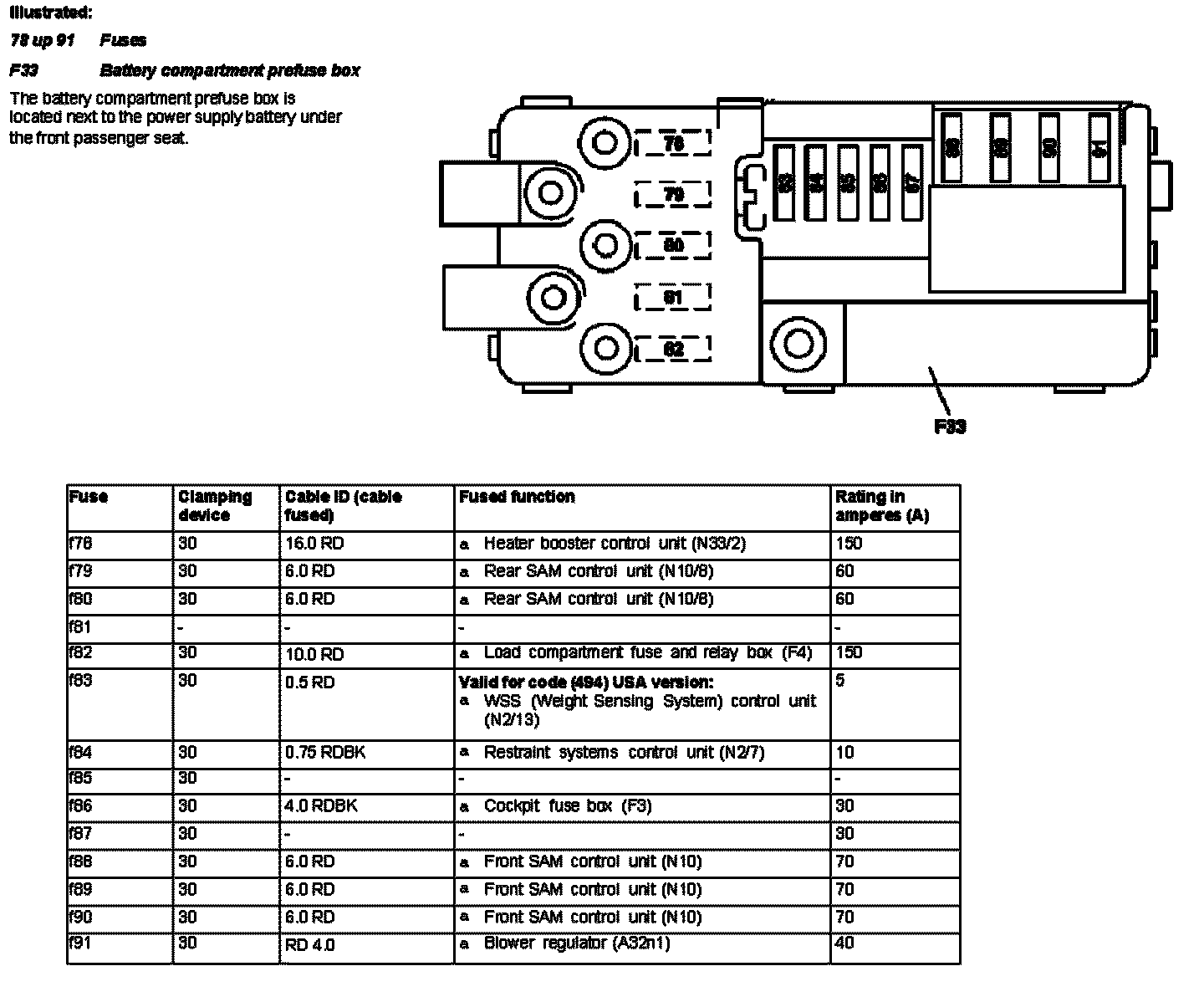

Fuse assignment of battery compartment prefuse box

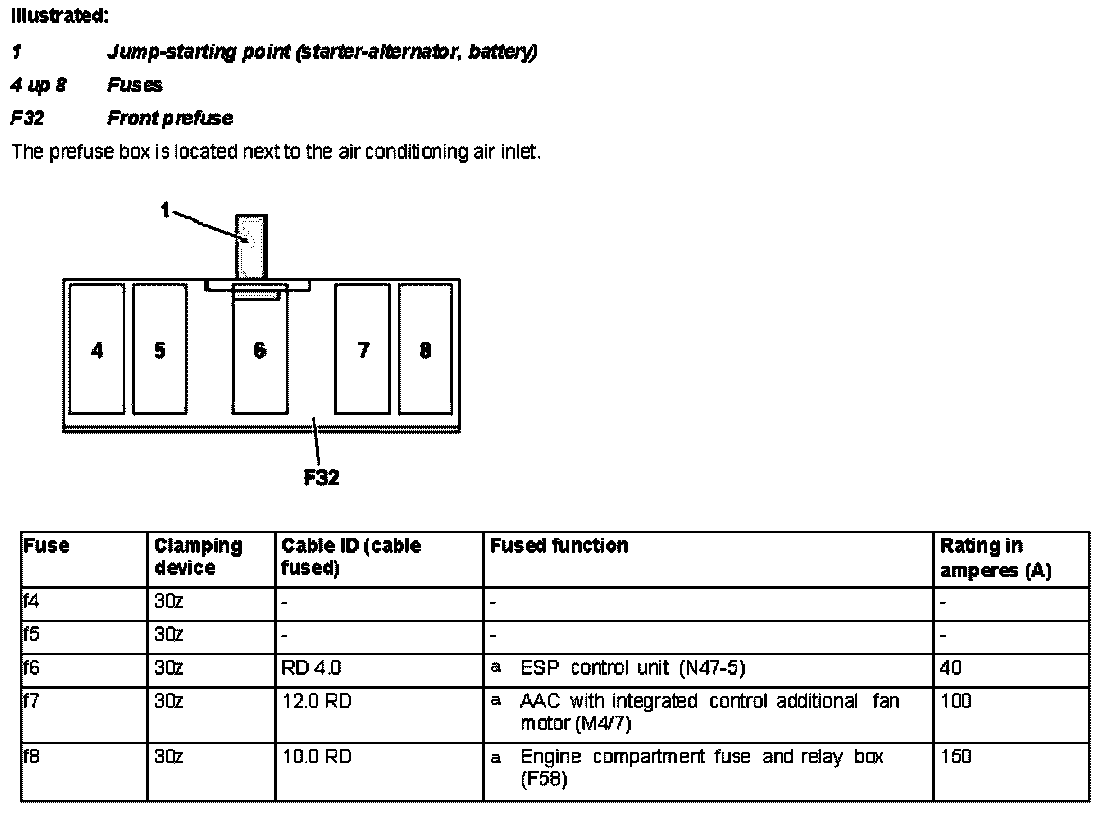

Fuse assignment of front prefuse box

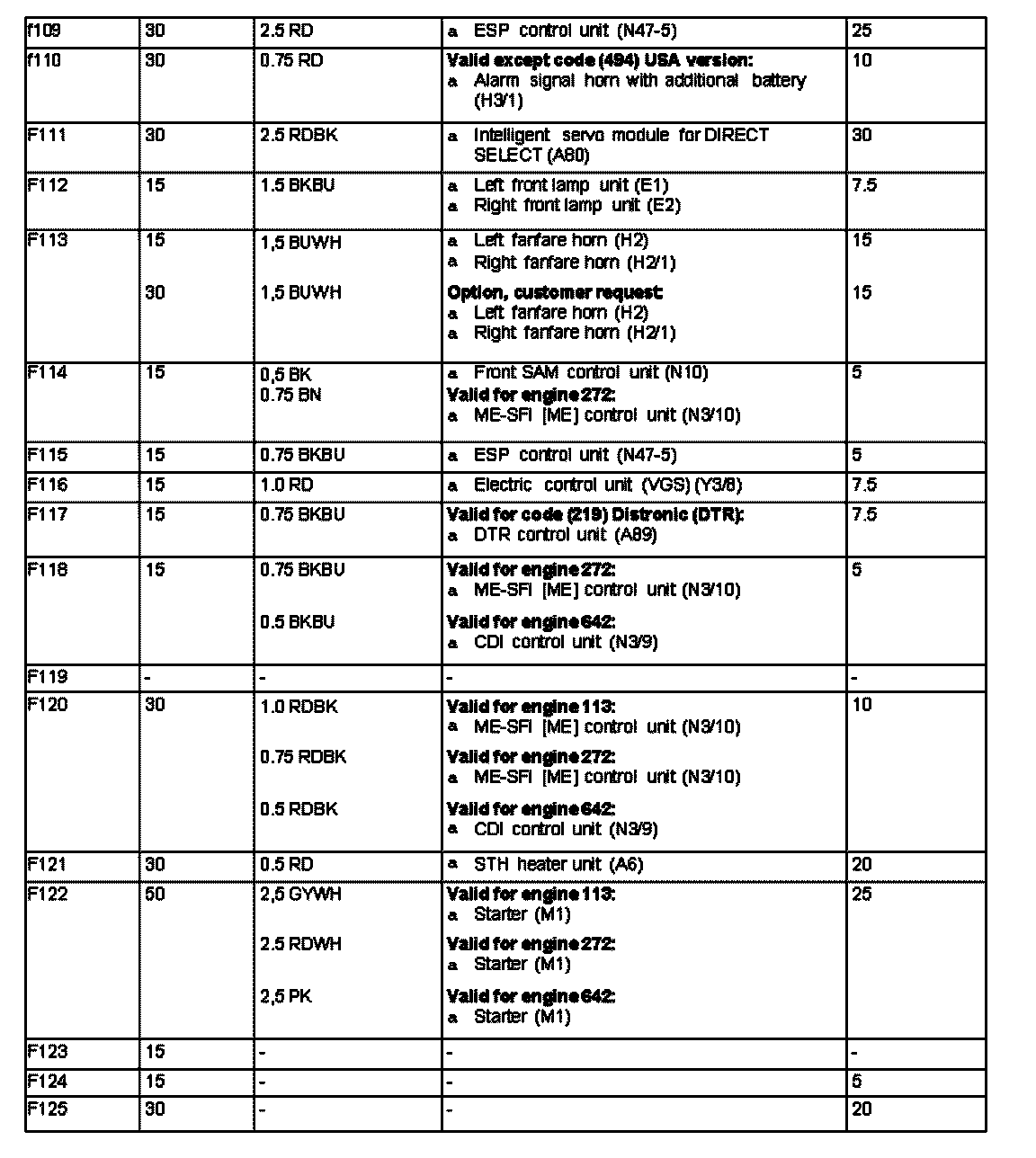

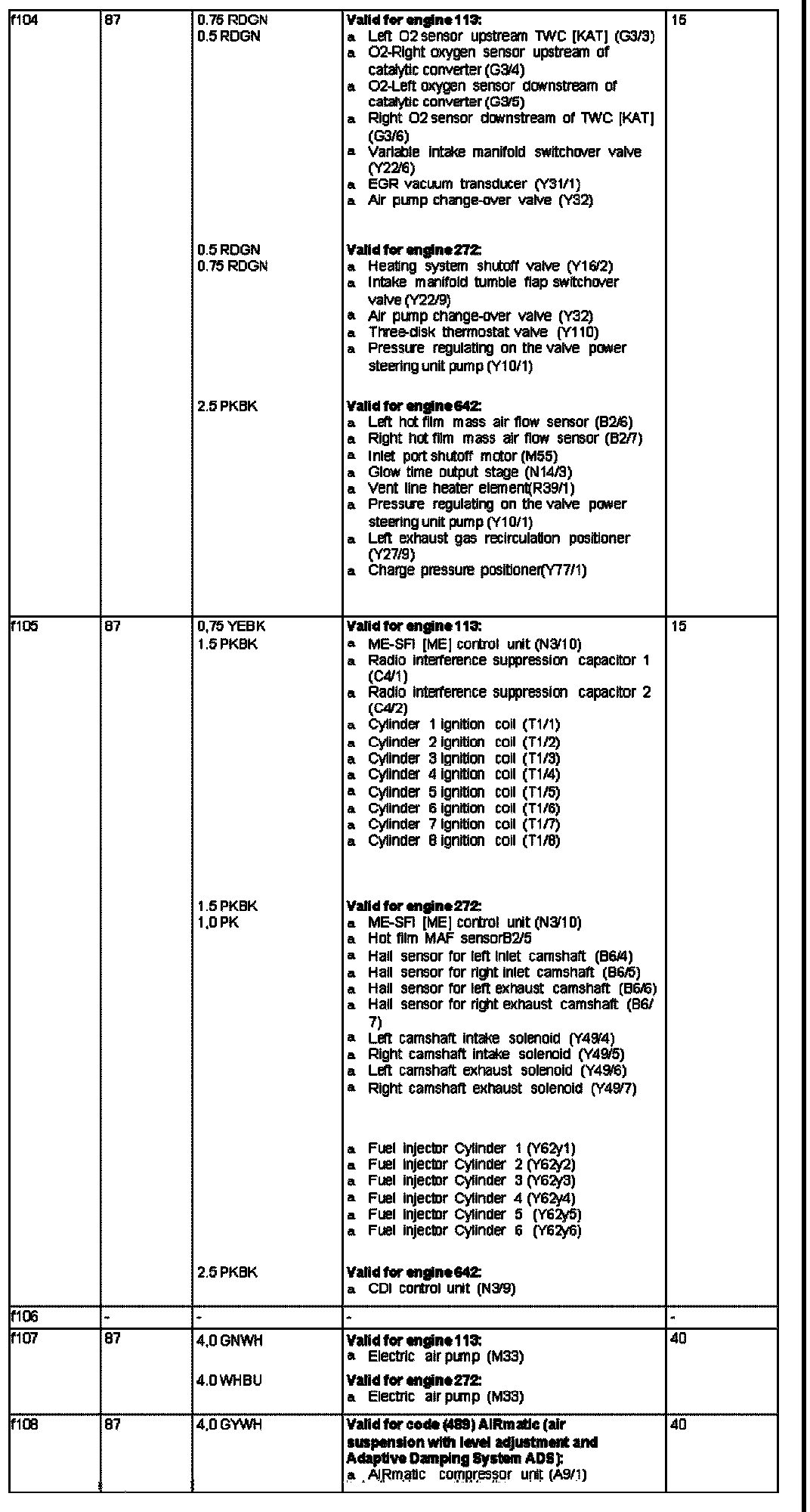

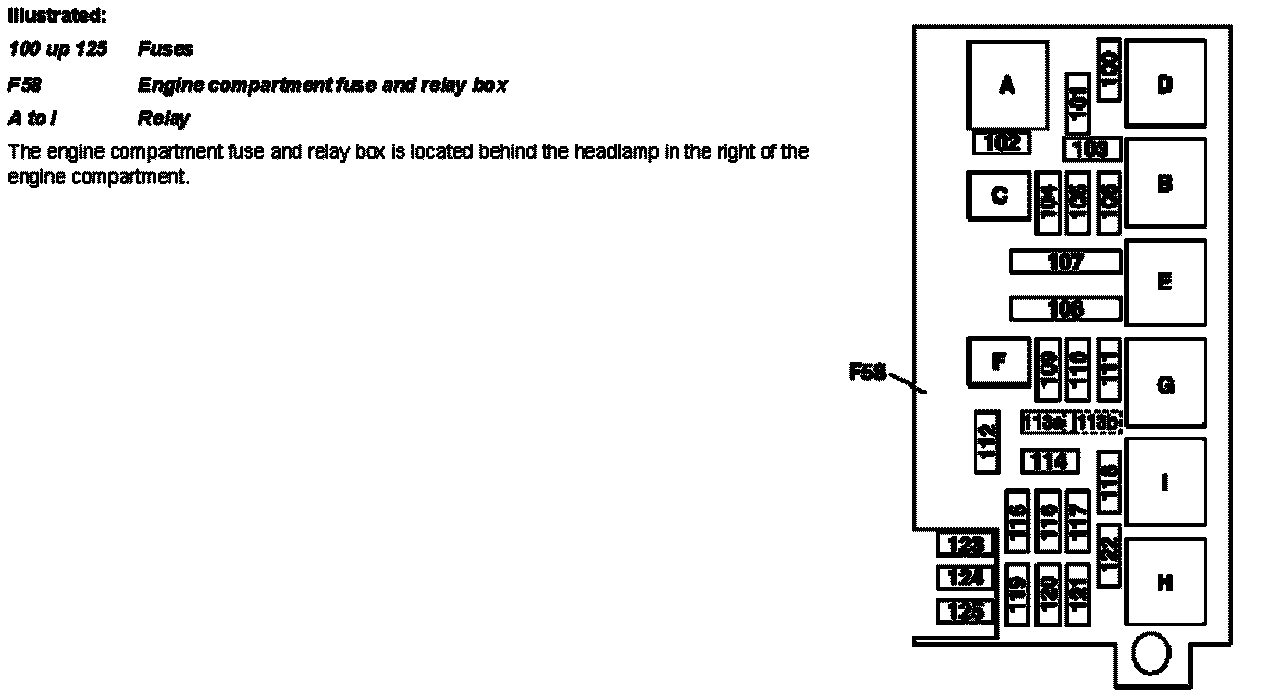

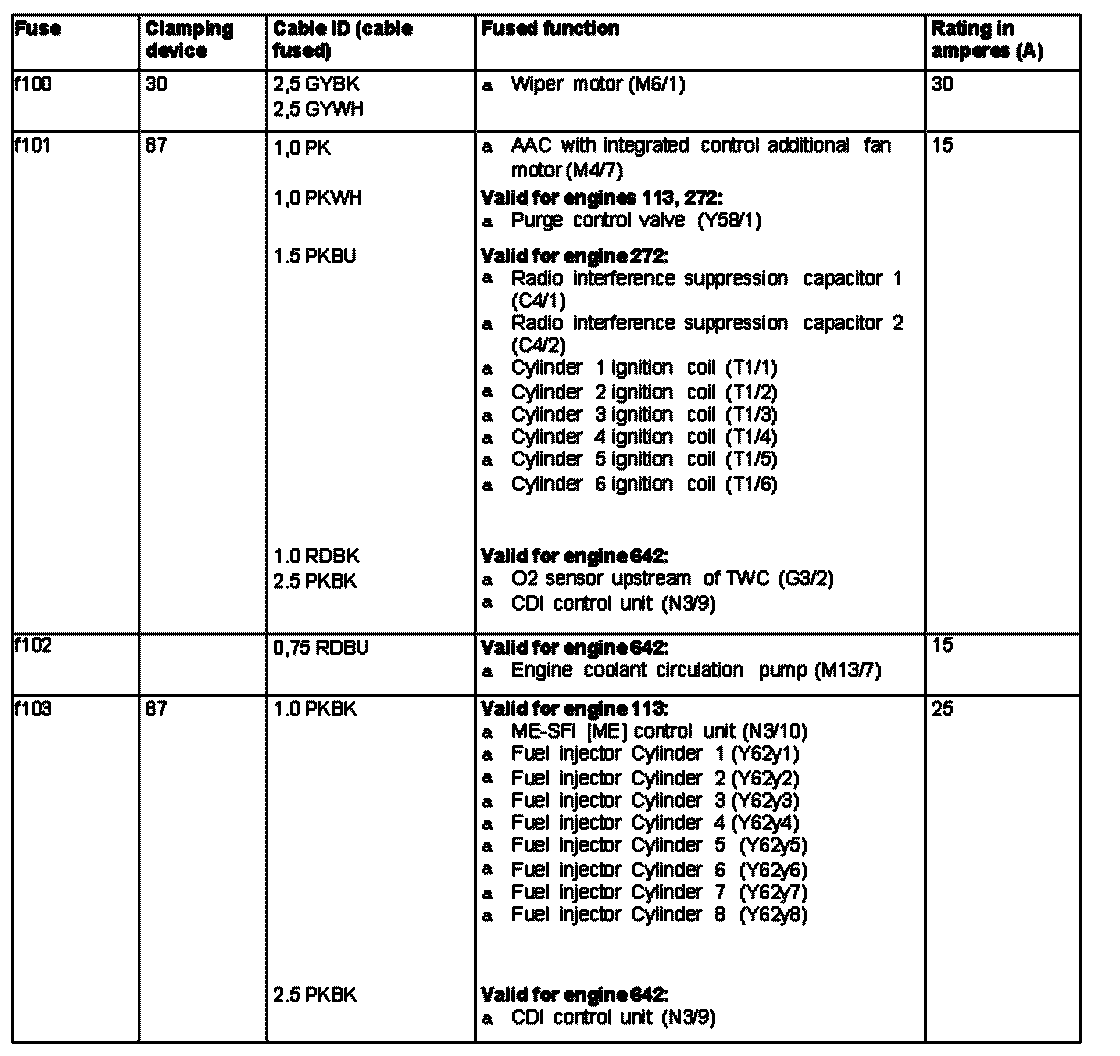

Fuse assignment of fuse and relay box in right engine compartment

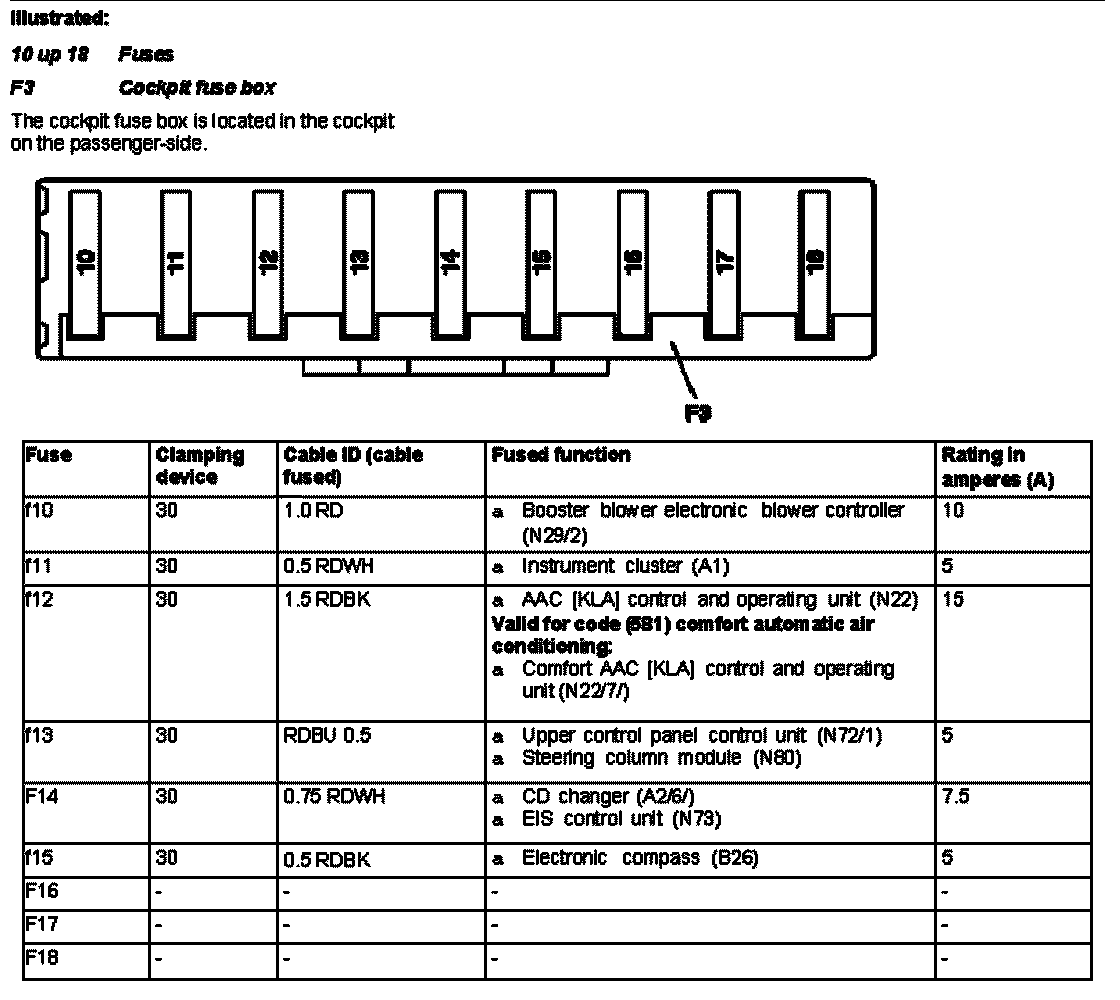

Fuse assignment of fuse box in cockpit

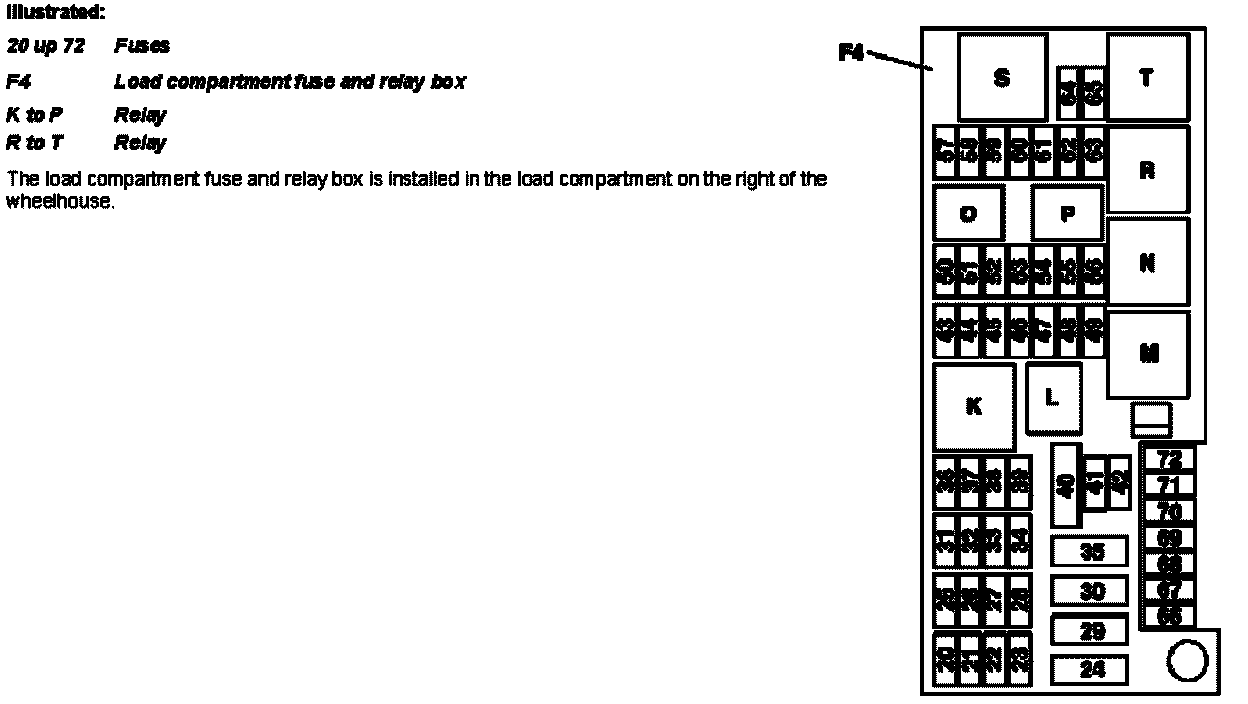

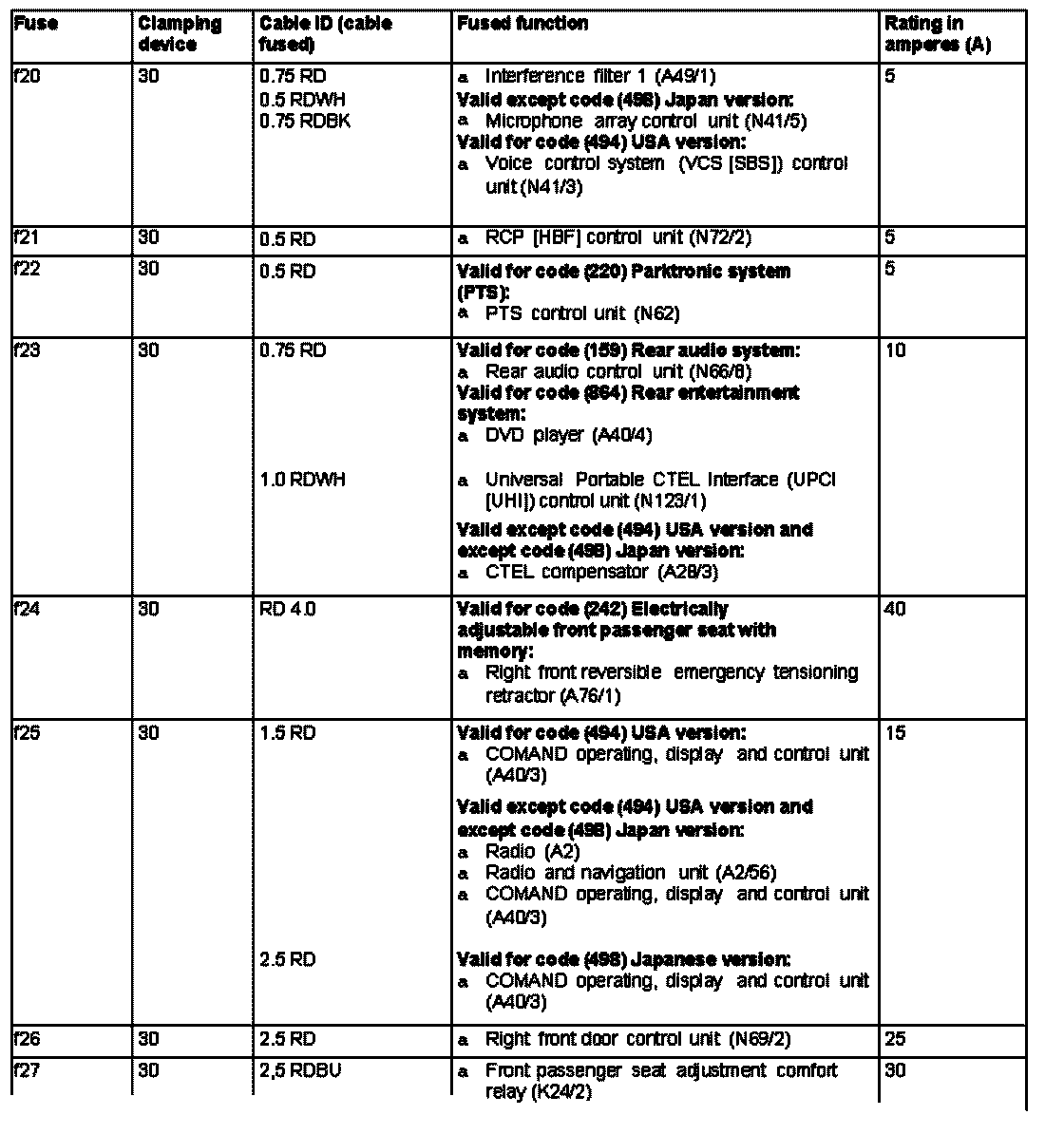

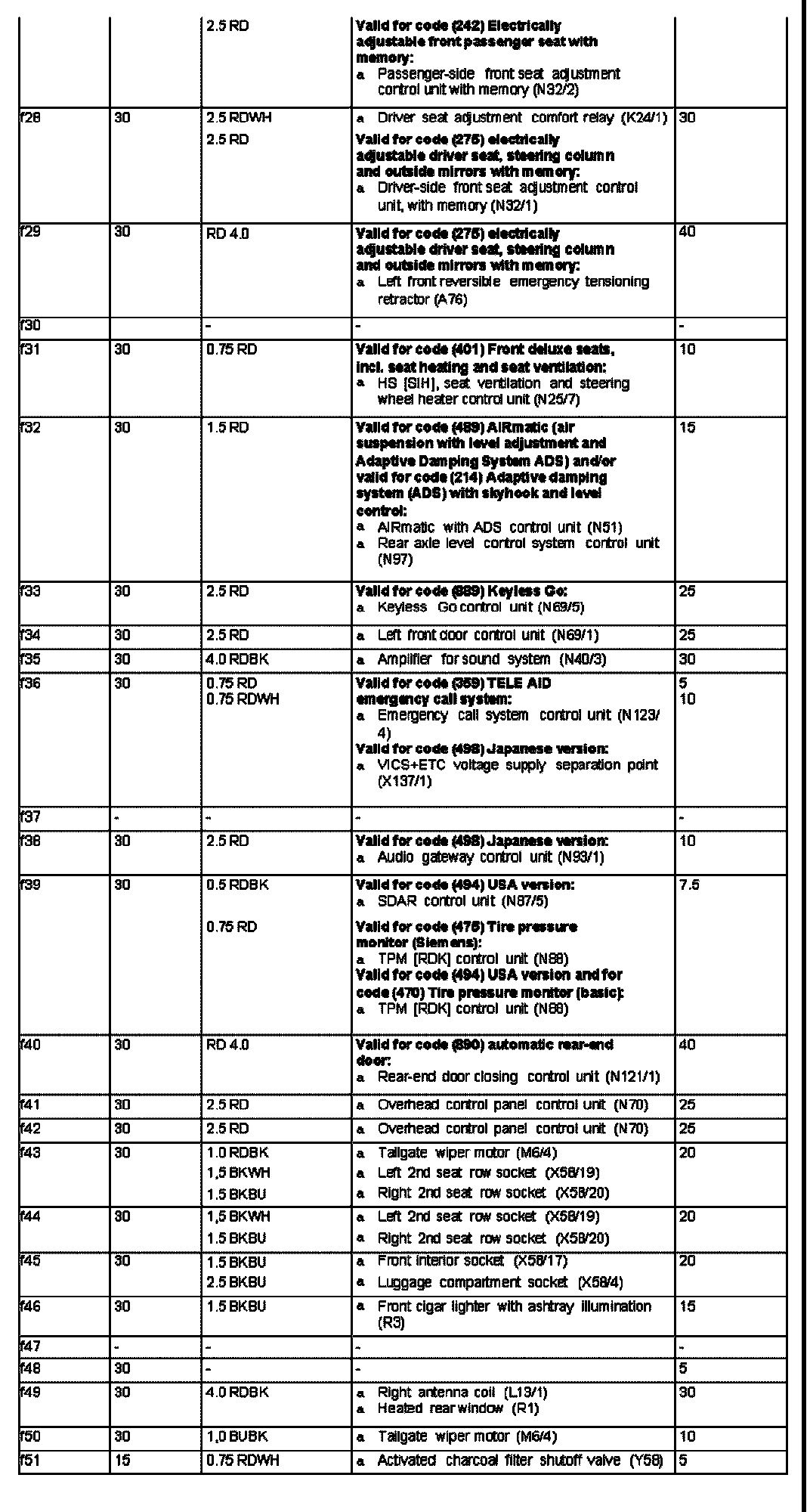

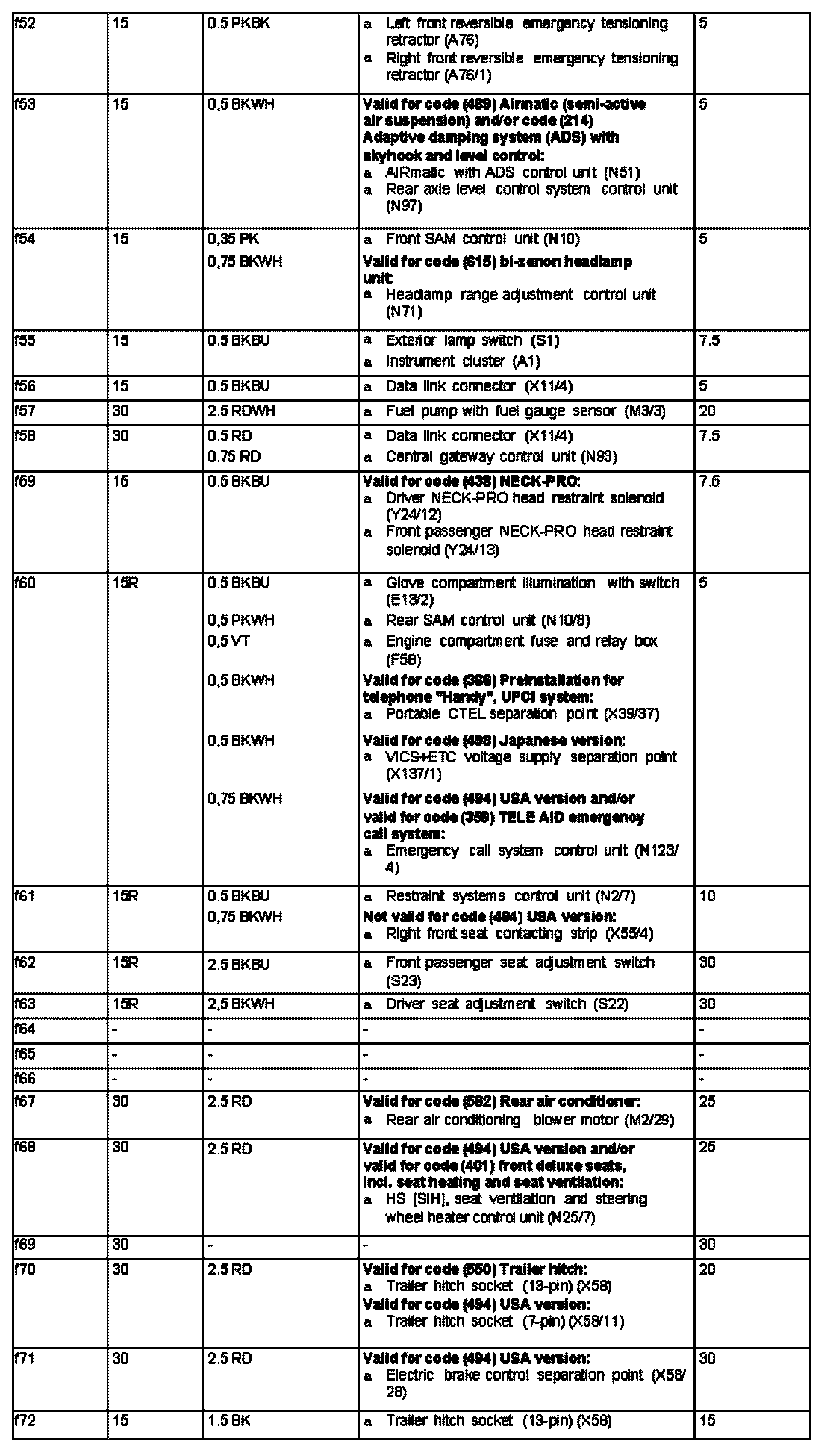

Fuse assignment of load compartment fuse and relay box

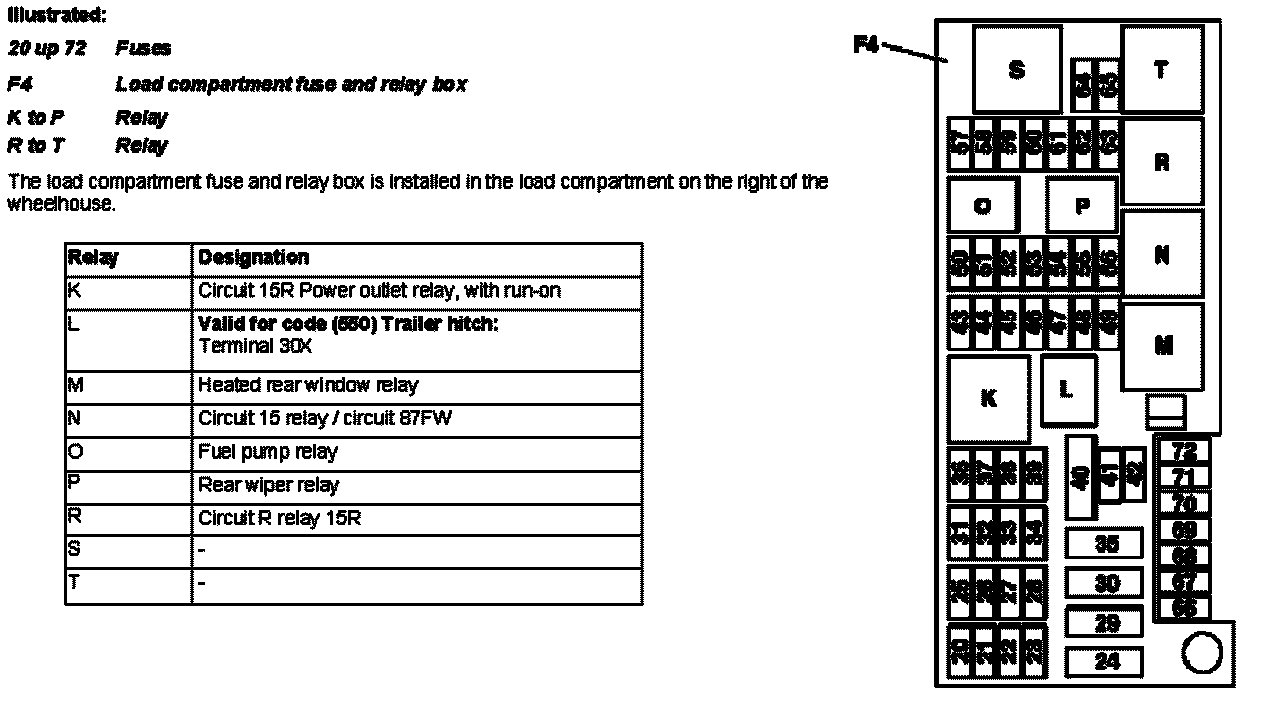

Relay assignment of the load compartment fuse and relay box





Relay assignment of fuse and relay box in right engine compartment
