AR54.15-P-1330RT Remove/Install Front Prefuse Box
AR54.15-P-1330RT Remove/Install Front Prefuse Box
AR54.15-P-1330RT Remove/Install Front Prefuse Box
Component Identification:

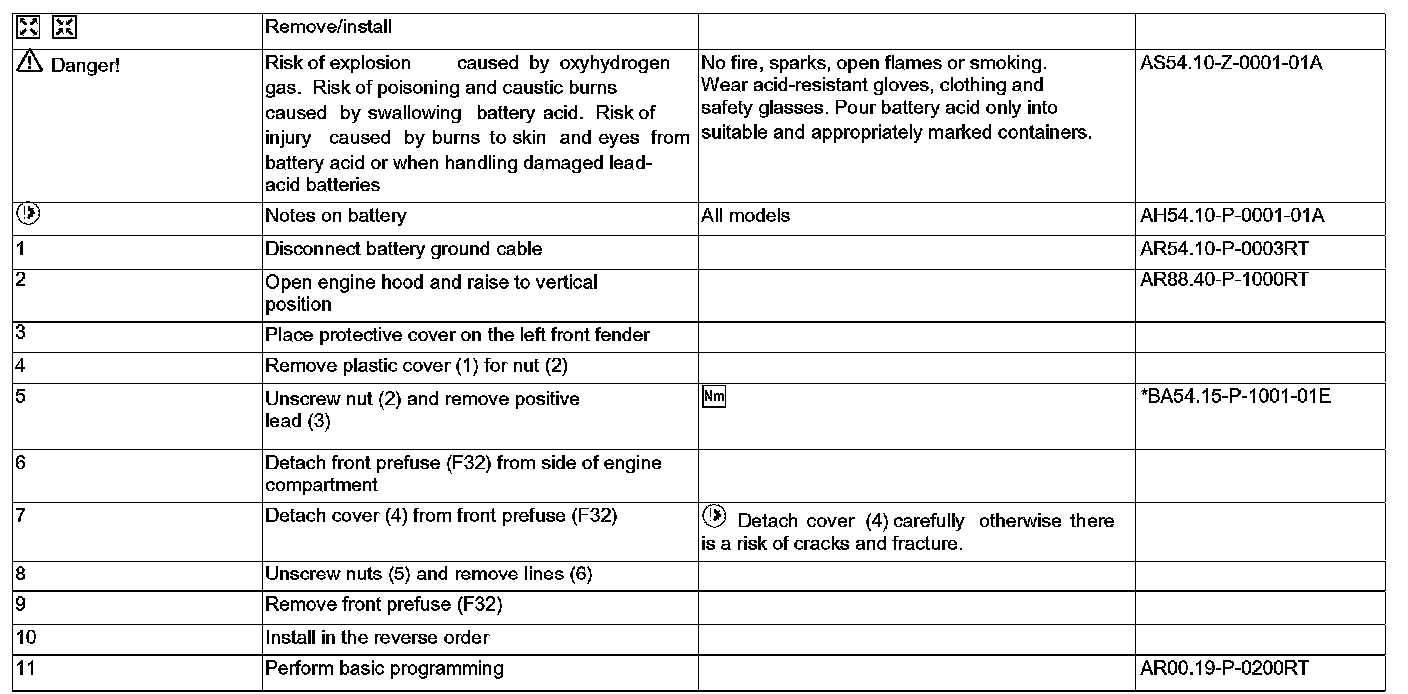

Steps 1 - 11:

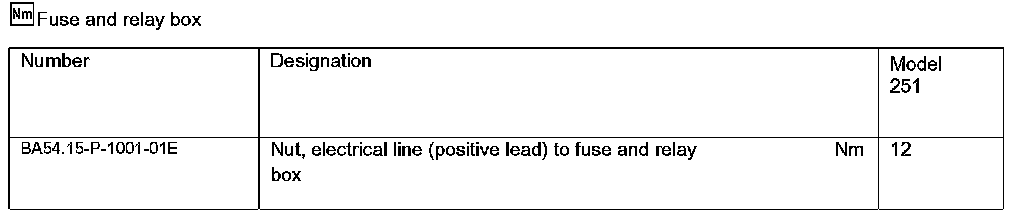

Fuse And Relay Box:
