BA62.30-P-1000-01E Crossmember and Front Reinforcement
BA62.30-P-1000-01E Crossmember and Front Reinforcement
BA62.30-P-1000-01E Crossmember And Front Reinforcement

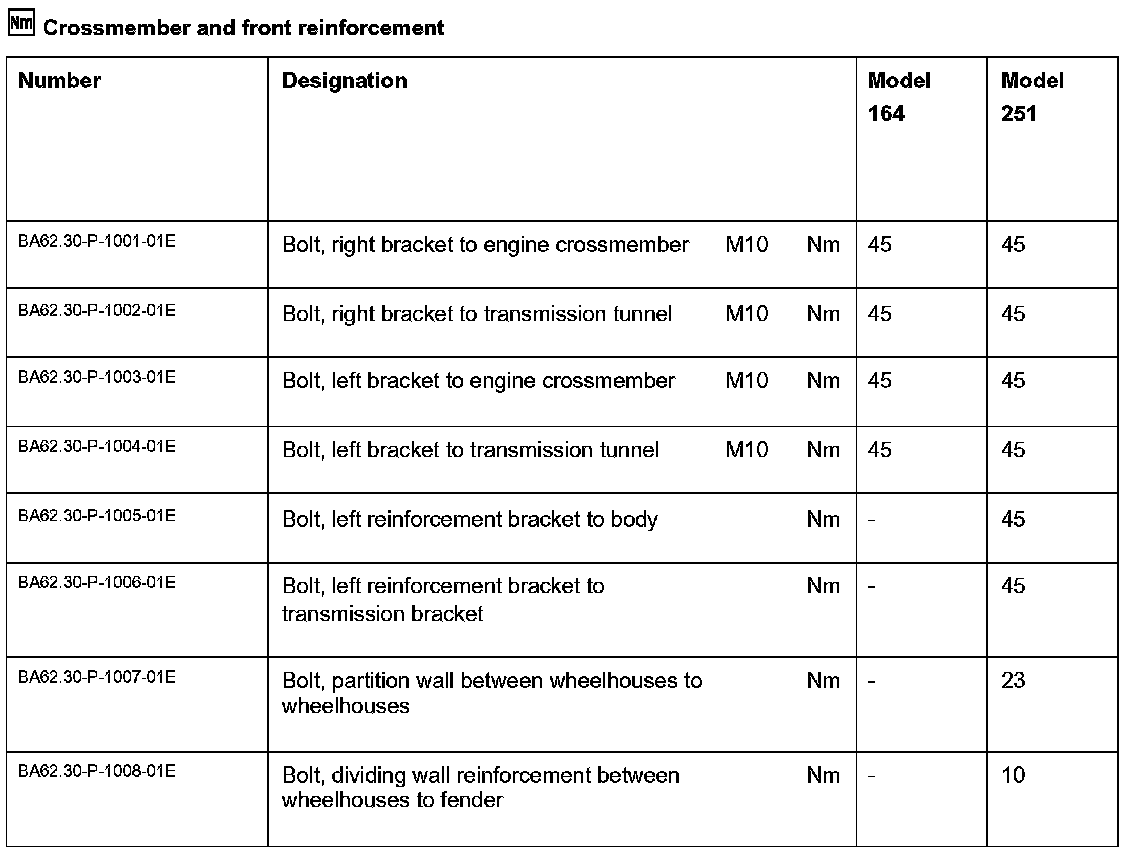

Crossmember And Front Reinforcement:
