Fuel Pressure Sensor/Switch: Service and Repair



AR07.16-P-1055GZB Remove/Install Rail Pressure Sensor

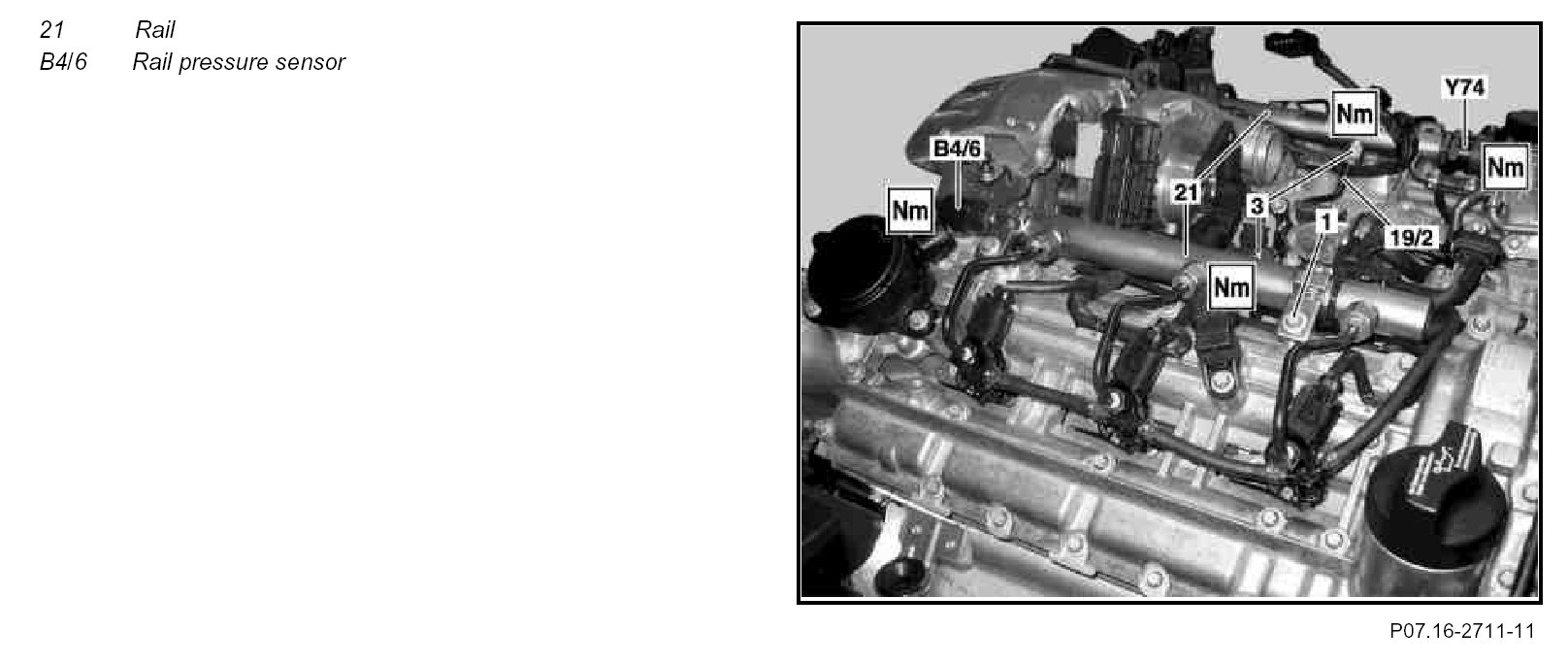

Component Identification:

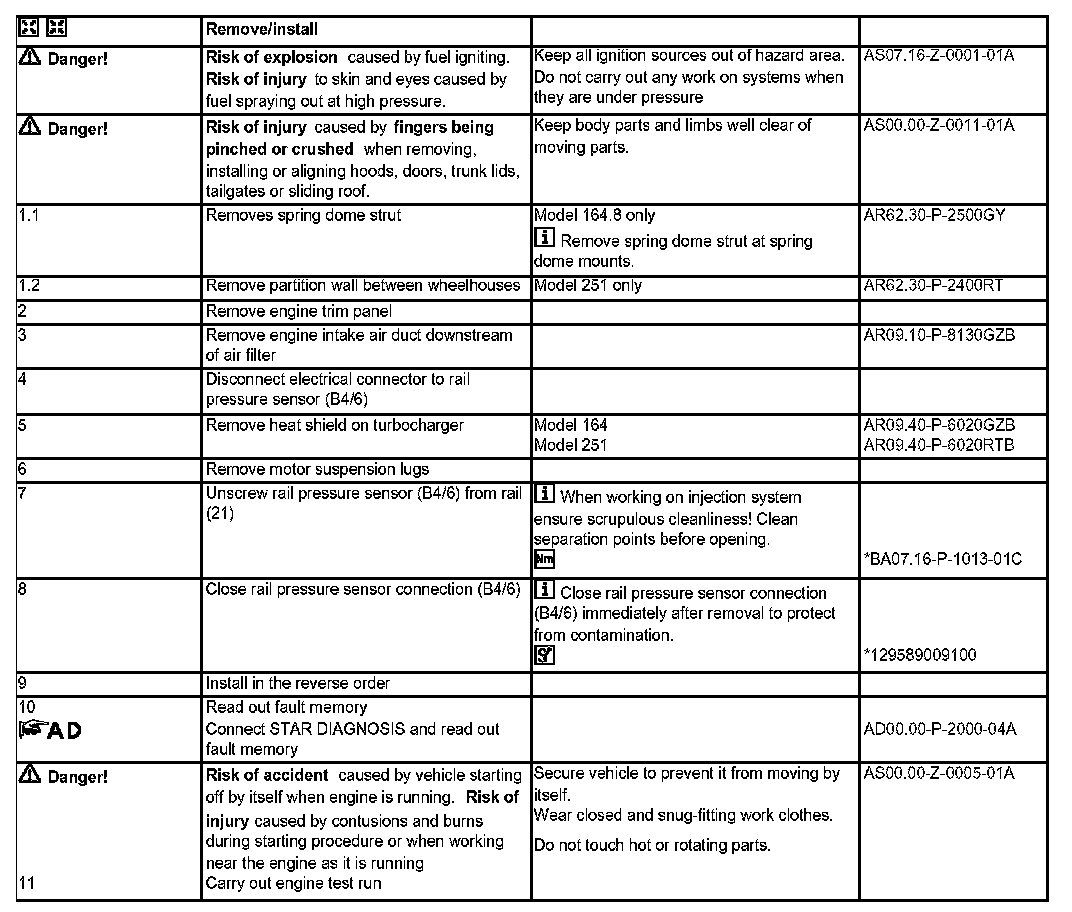

Steps 1.1 - 11:

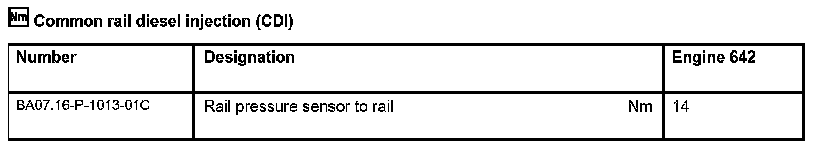

Common Rail Diesel Injection (CDI):

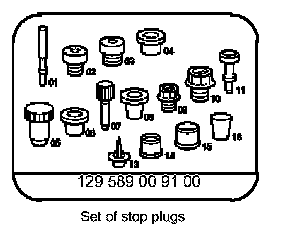

Special Tools:
