AR14.20-P-1020GZB Remove/Install Exhaust Gas Recirculation Positioner



AR14.20-P-1020GZB Remove/install exhaust gas recirculation positioner

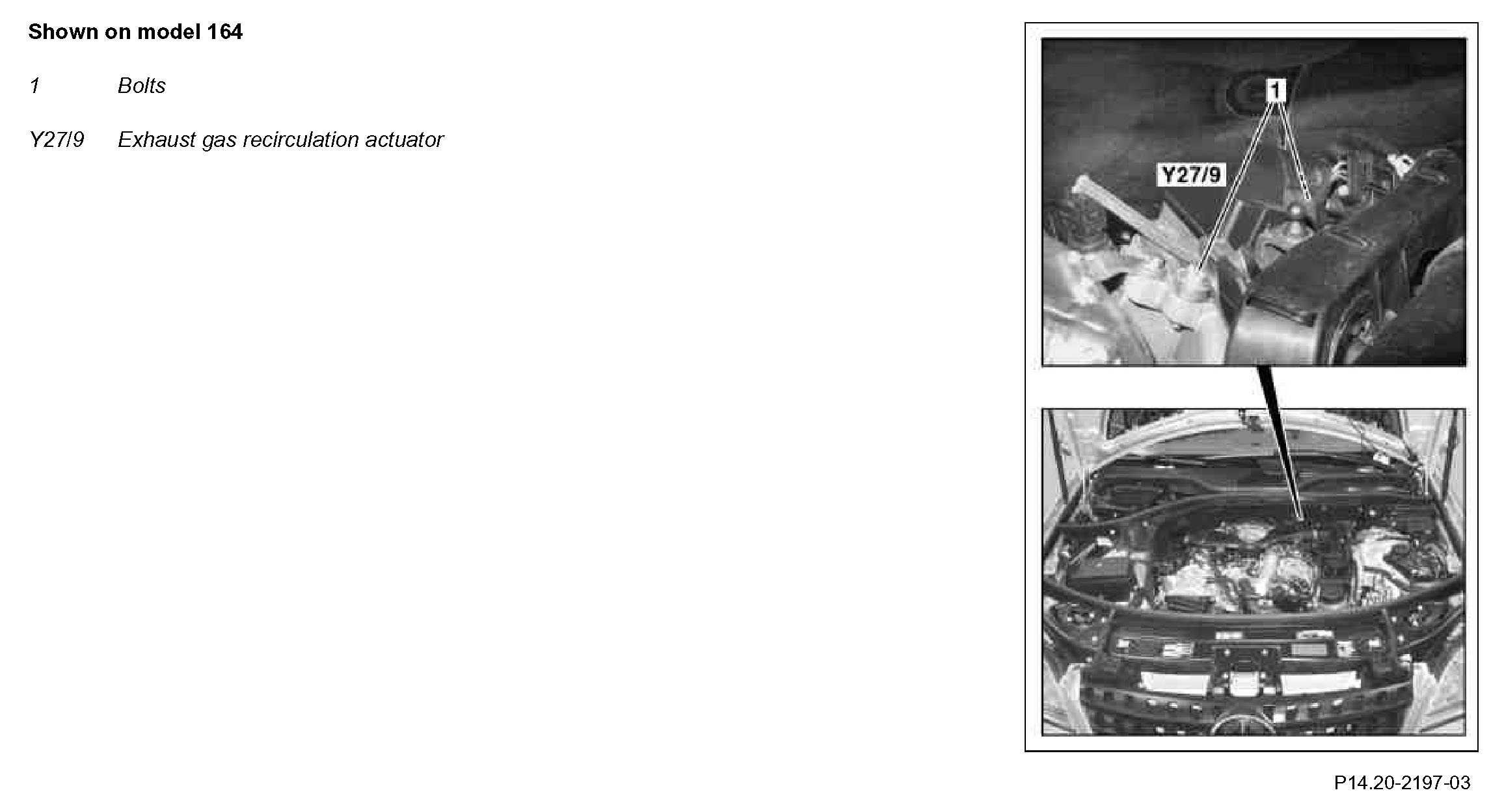

Component Identification:

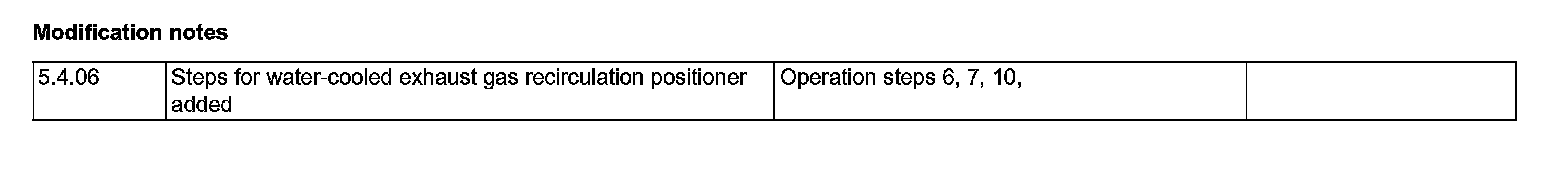

Modification notes:

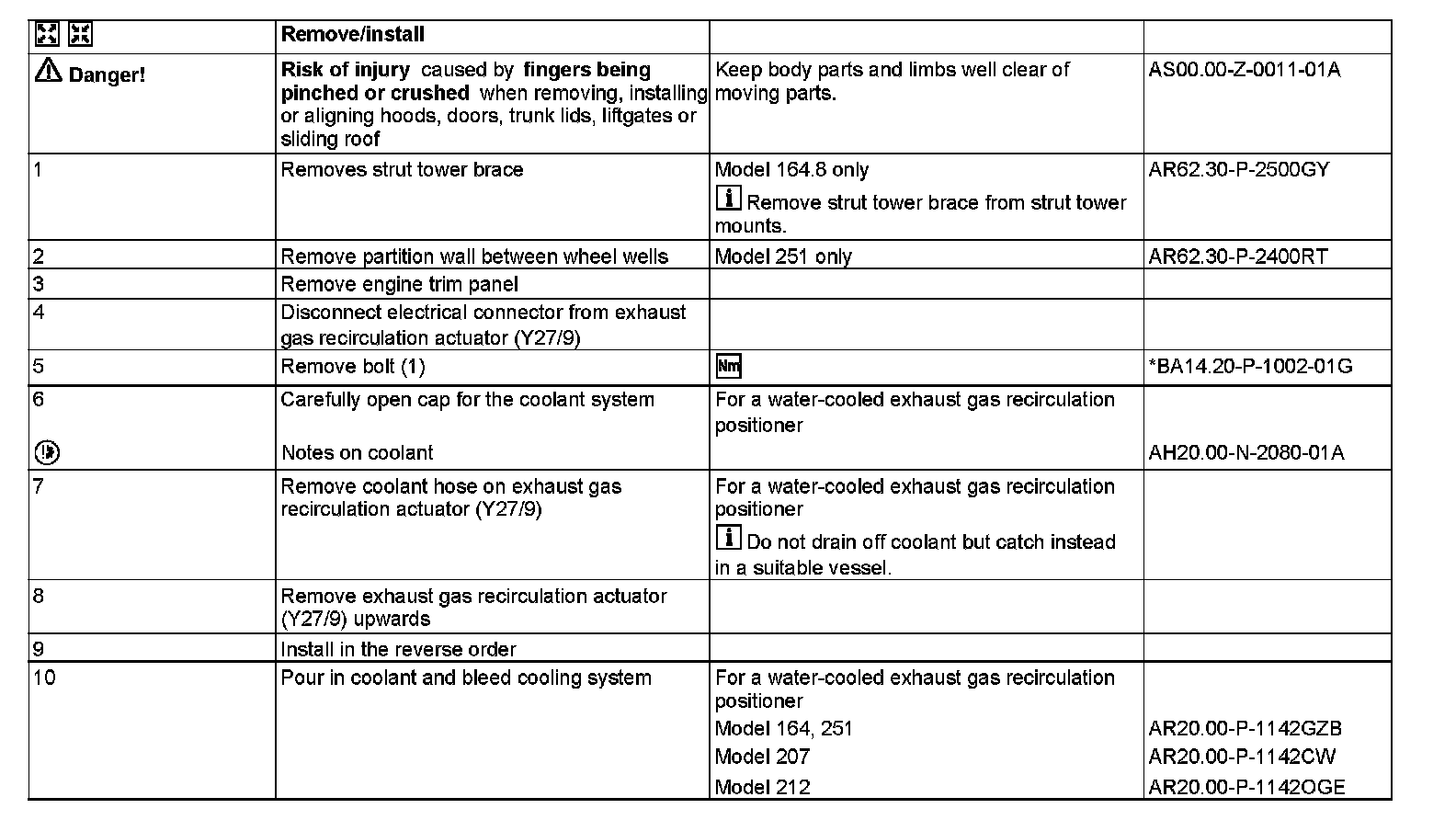

Steps 1-10:

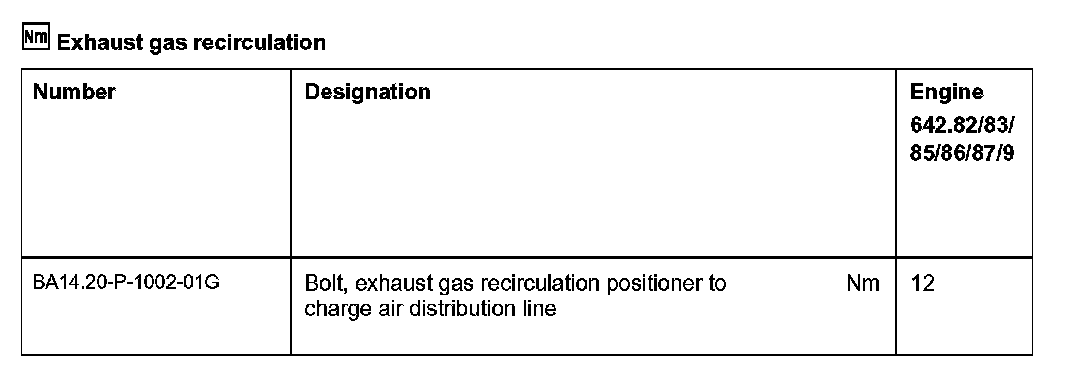

Exhaust gas recirculation:
