R 320 CDI (251.122) V6-3.0L DSL Turbo (642.950)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - HVAC
>>
Solar Sensor
>>
Service and Repair
Solar Sensor: Service and Repair
AR83.40-P-6720RT Remove And Install Sun Sensor

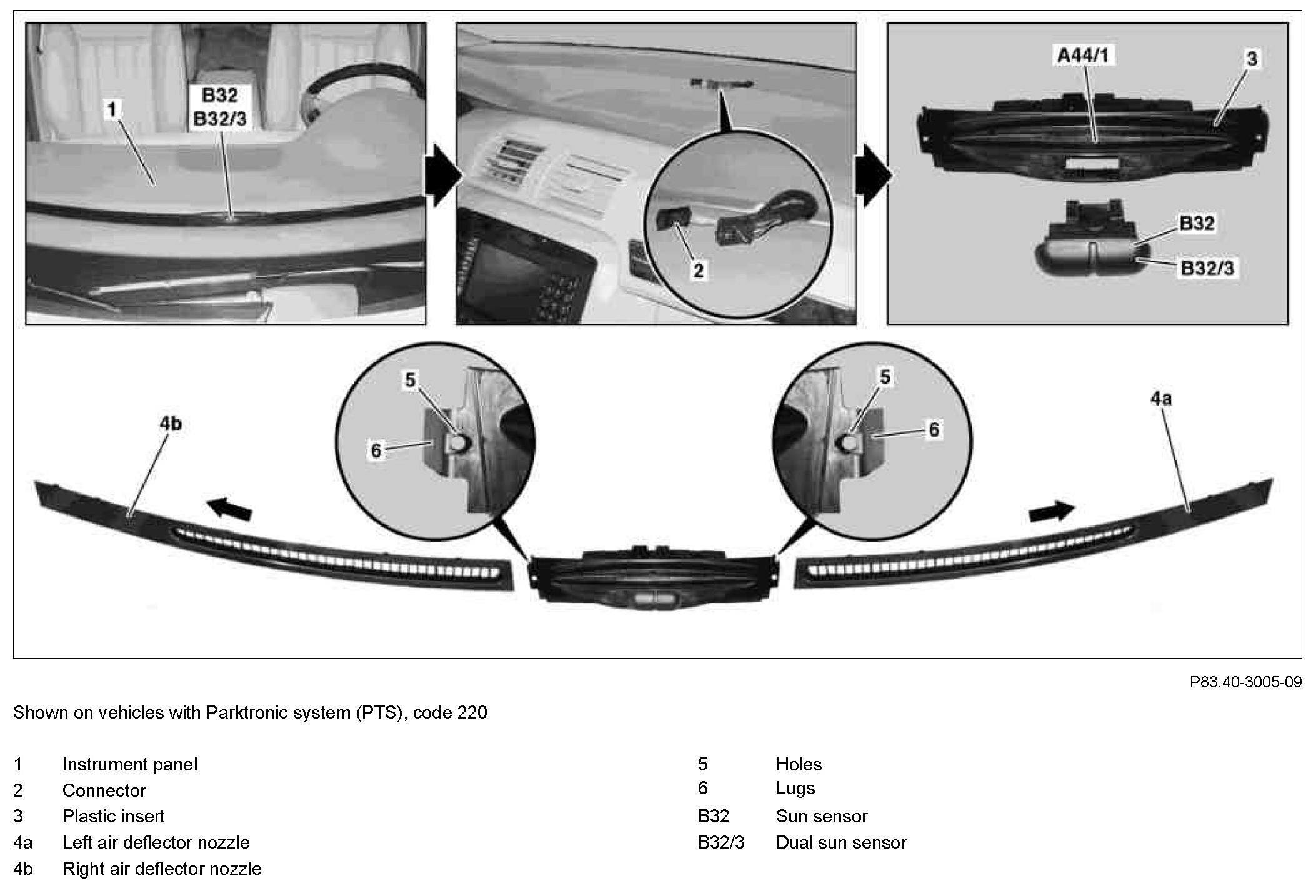

Component Identification:

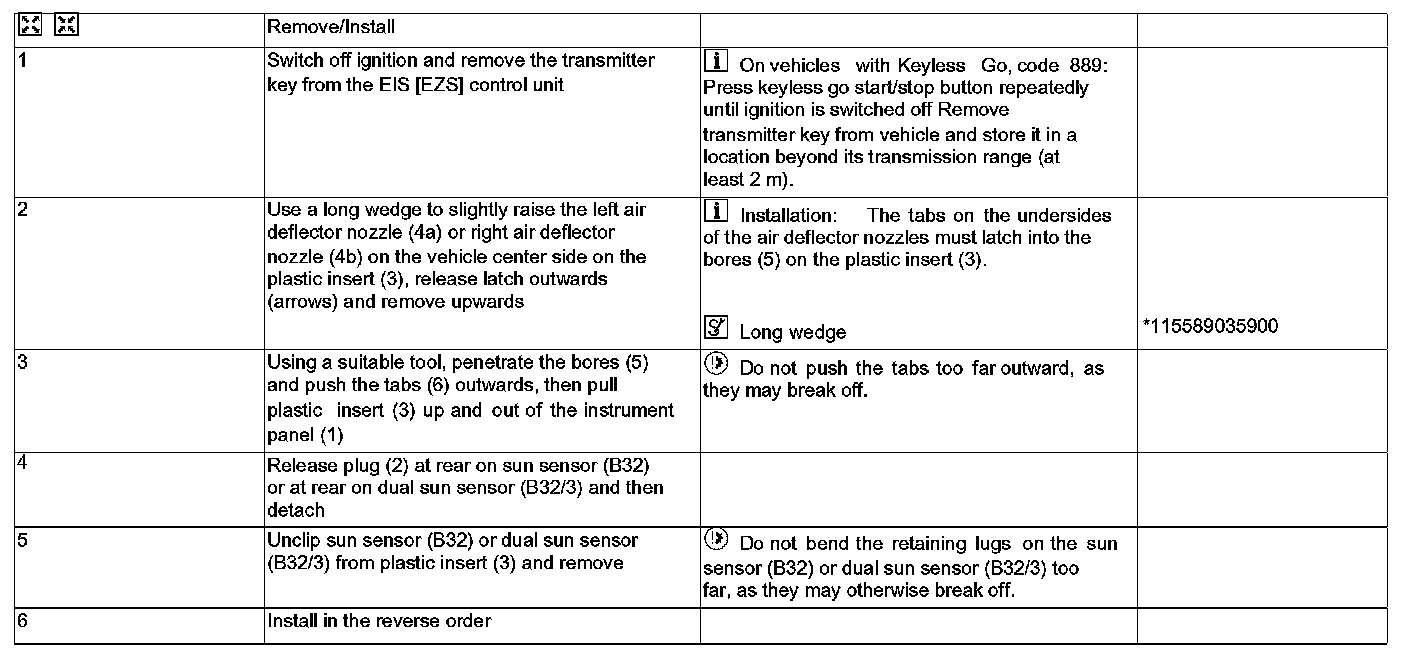

Steps 1 - 6:

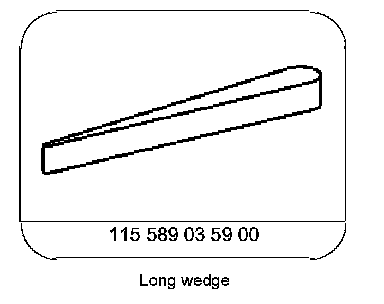

Special Tools:
