Refrigerant Temperature Sensor: Service and Repair

AR83.30-P-5431RT Remove/Install Refrigerant Pressure And Temperature Sensor
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- with CODE (582) Rear air conditioner

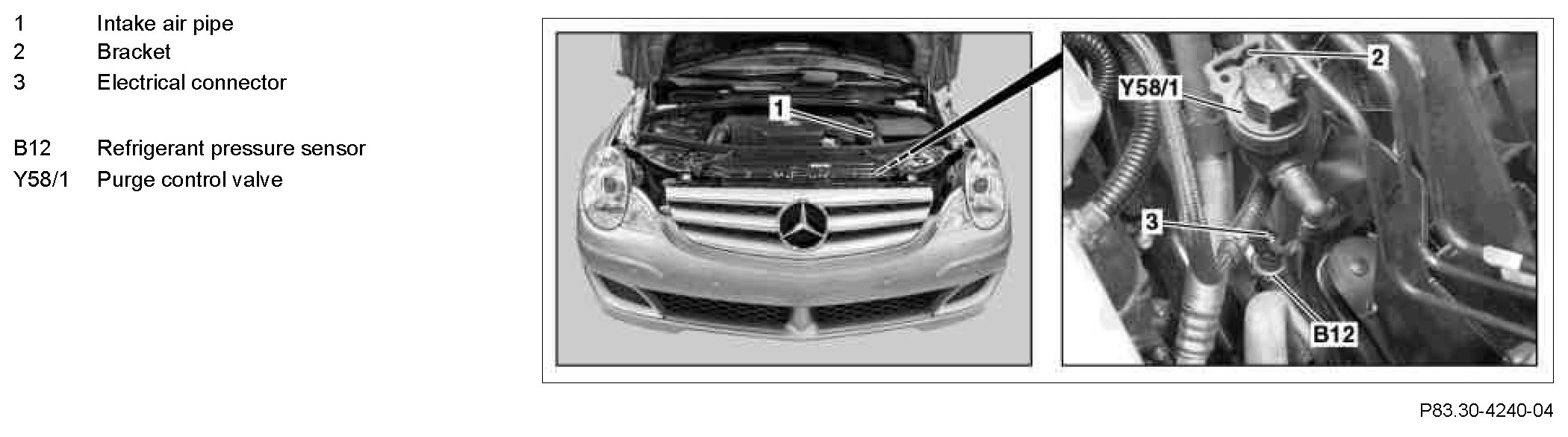

Component Identification:

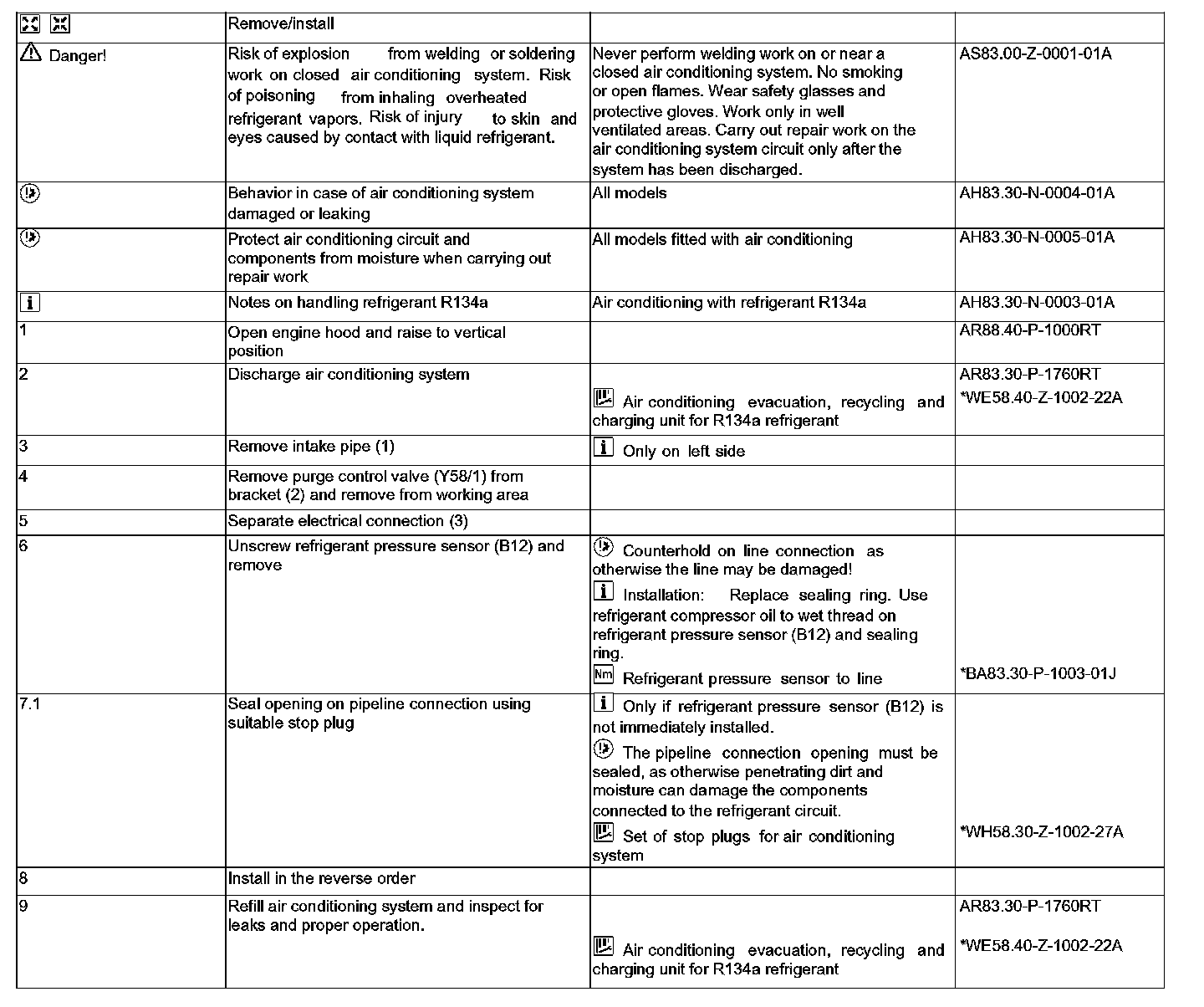

Steps 1 - 9:

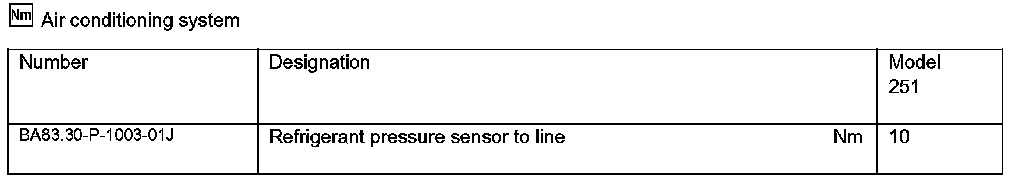

Air Conditioning System:

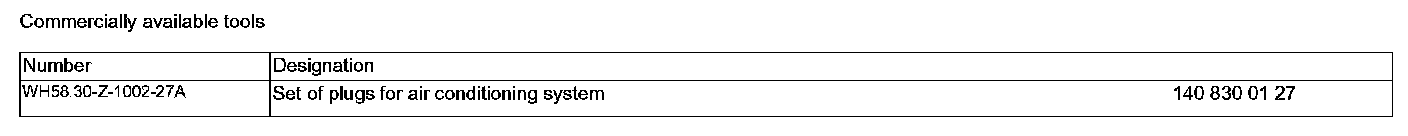

Commercially Available Tools:

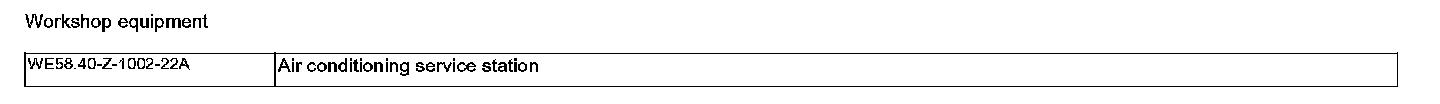

Workshop Equipment:
