AR83.30-P-8087RTB Remove/Install Air Outlet Temperature Sensor



AR83.30-P-8087RTB Remove/Install Air Outlet Temperature Sensor
- Rear footwell

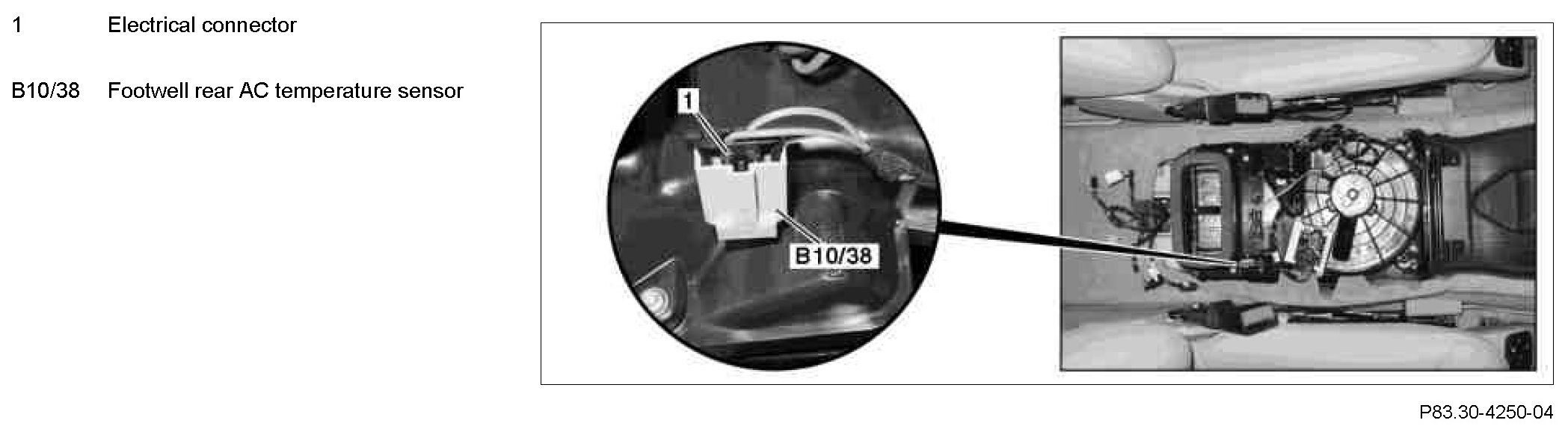

Component Identification:

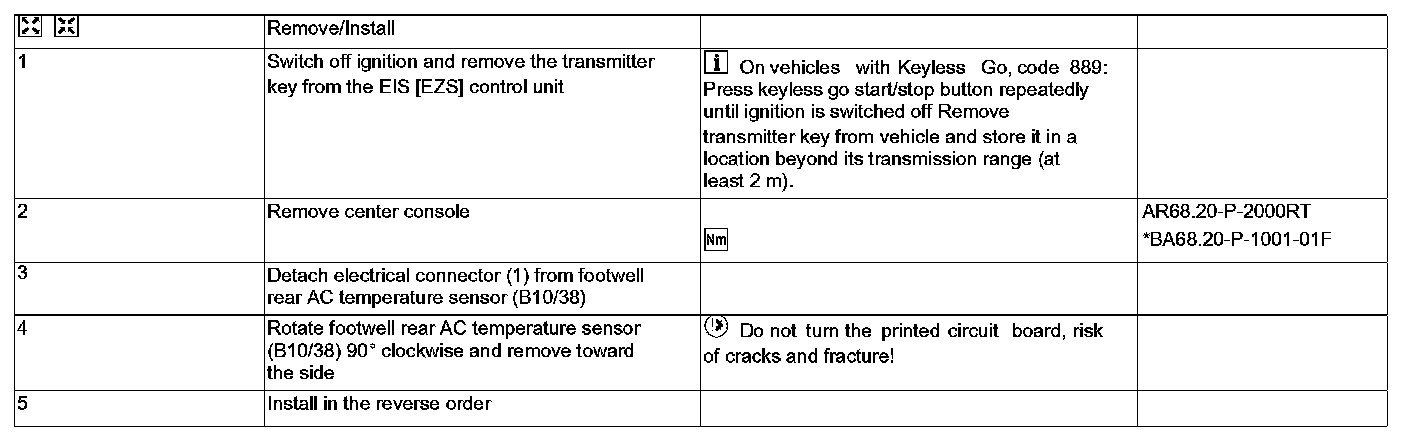

Steps 1 - 5:

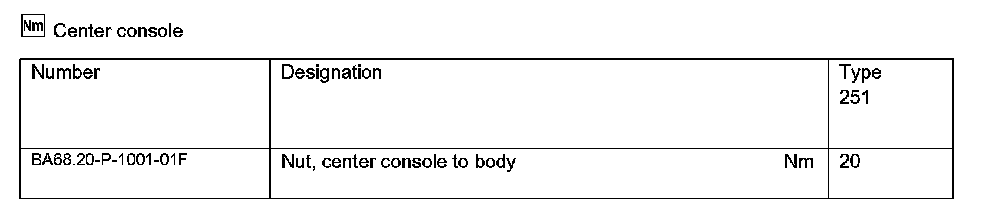

Center Console:
