AR83.30-P-8087RTA Remove/Install Air Outlet Temperature Sensor
AR83.30-P-8087RTA Remove/Install Air Outlet Temperature Sensor
AR83.30-P-8087RTA Remove/Install Air Outlet Temperature Sensor
- Footwell

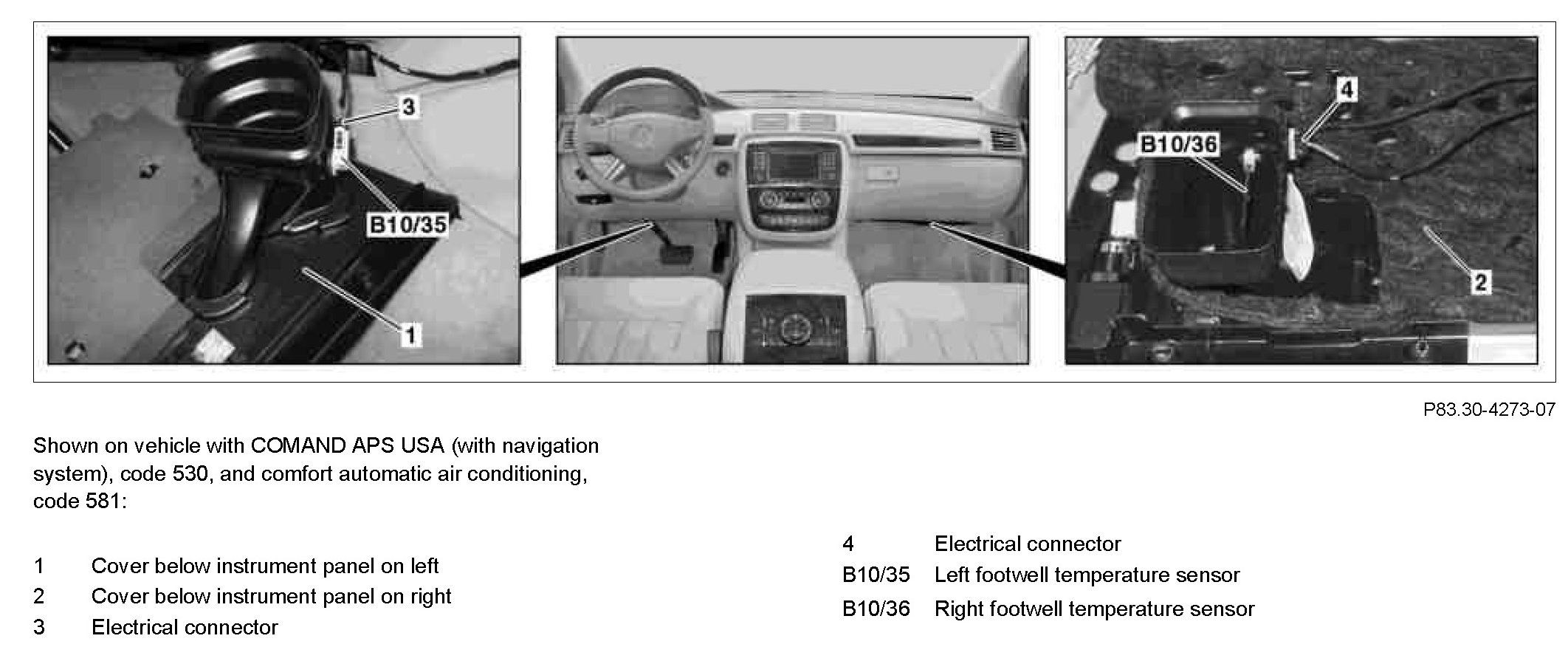

Component Identification:

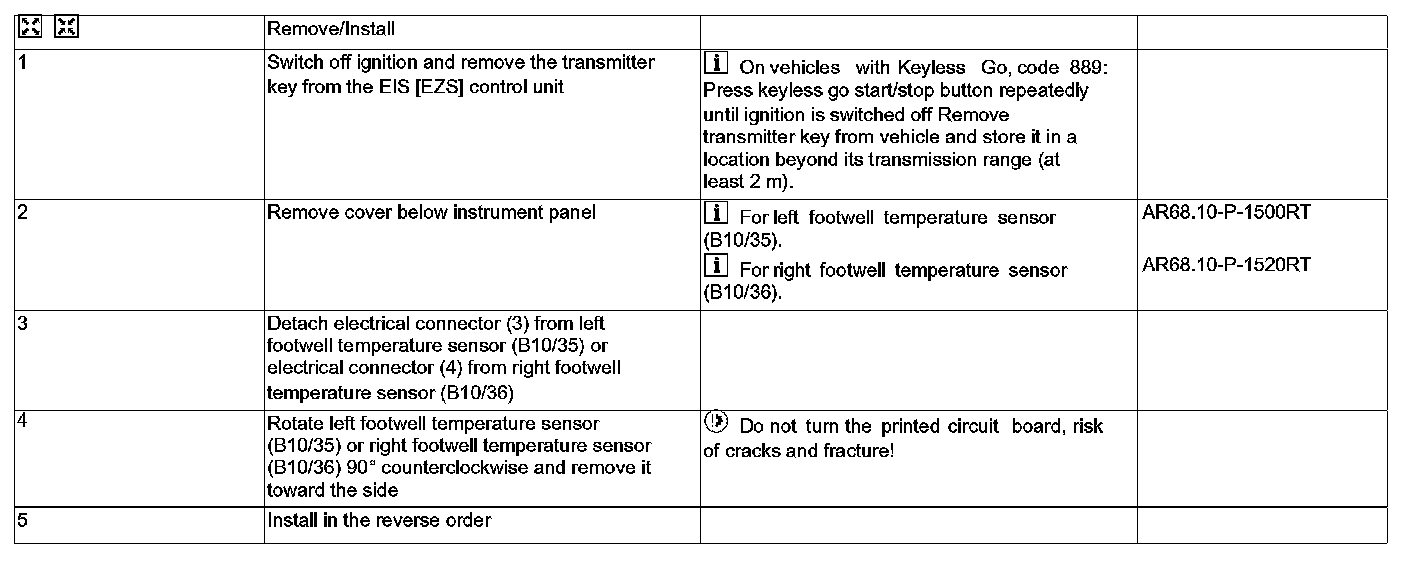

Steps 1 - 5:
