GF83.57-P-2127RT In-Car Temperature Sensor, Component Description

GF83.57-P-2127RT In-car Temperature Sensor, Component Description
- with CODE (580) Automatic air conditioning

Component Identification:

Location

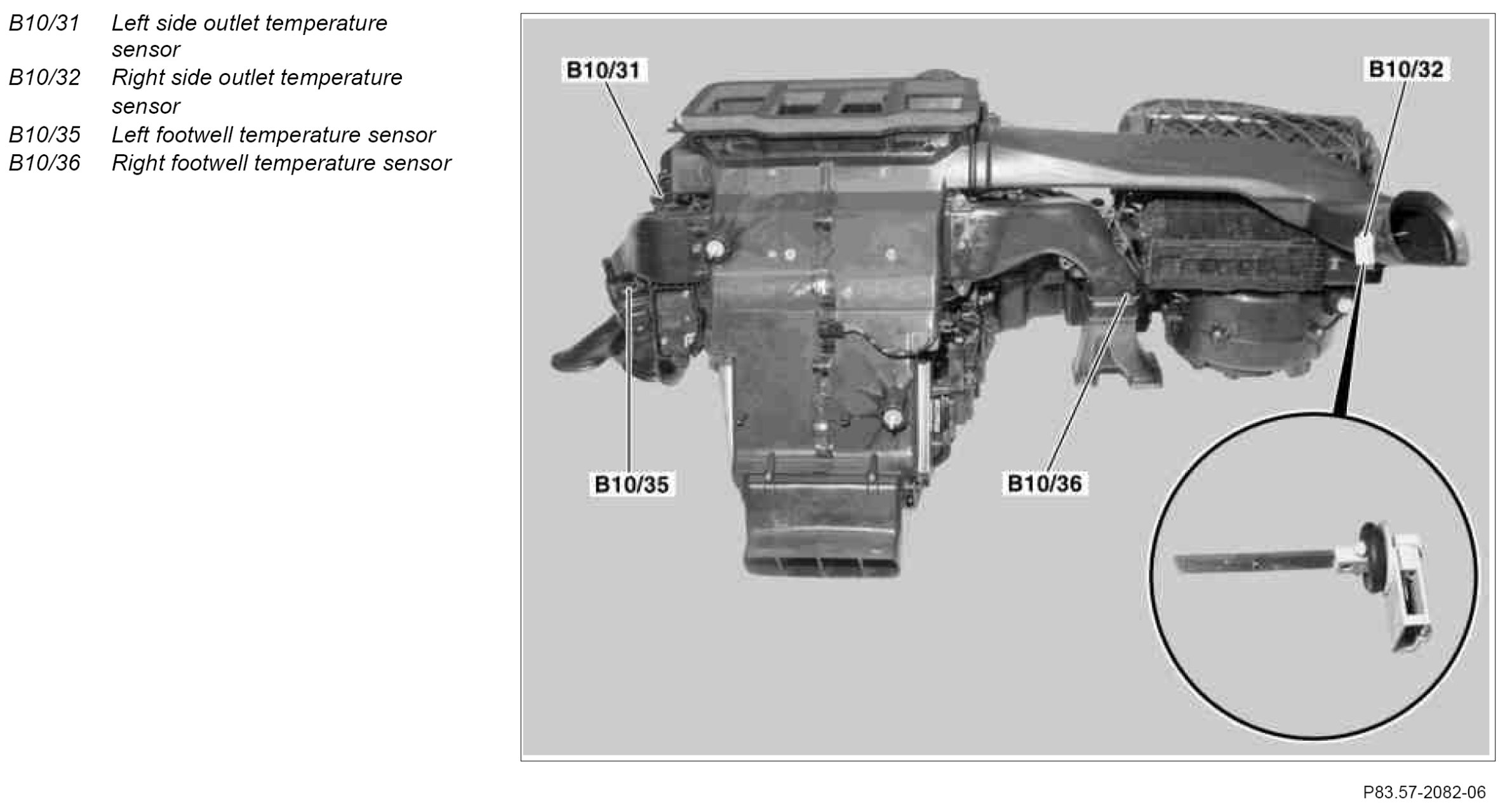

The air conditioning temperature sensors are installed in the individual air outlet ducts, as shown in the figure.

Component Identification:

Location

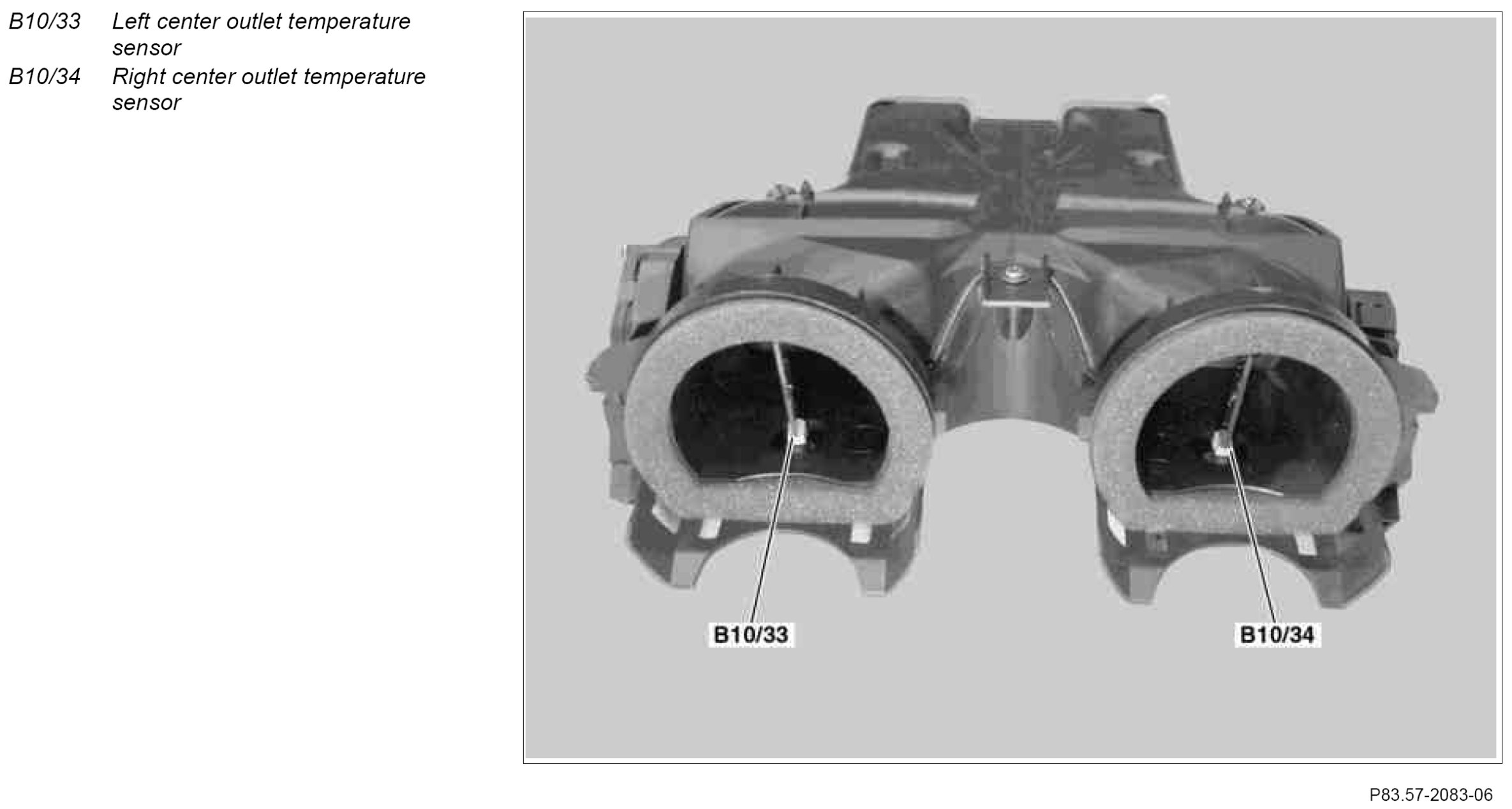

The center outlet temperature sensors are installed as shown in the figure.

Task
The temperature sensors measure the temperature of the air flowing out of the specific air flap and transfer this value to the AAC control and operating unit (N22).

The temperature reading for the exiting air is compared with the settings on the temperature selector wheel by the AAC control and operating unit. The blending air flap is readjusted, depending on the result. In addition, this also measures the recirculated interior temperature.
