GF83.57-P-4002RT Outside Temperature Display Temperature Sensor, Component Description

GF83.57-P-4002RT Outside Temperature Display Temperature Sensor, Component Description

Component Identification:

Location

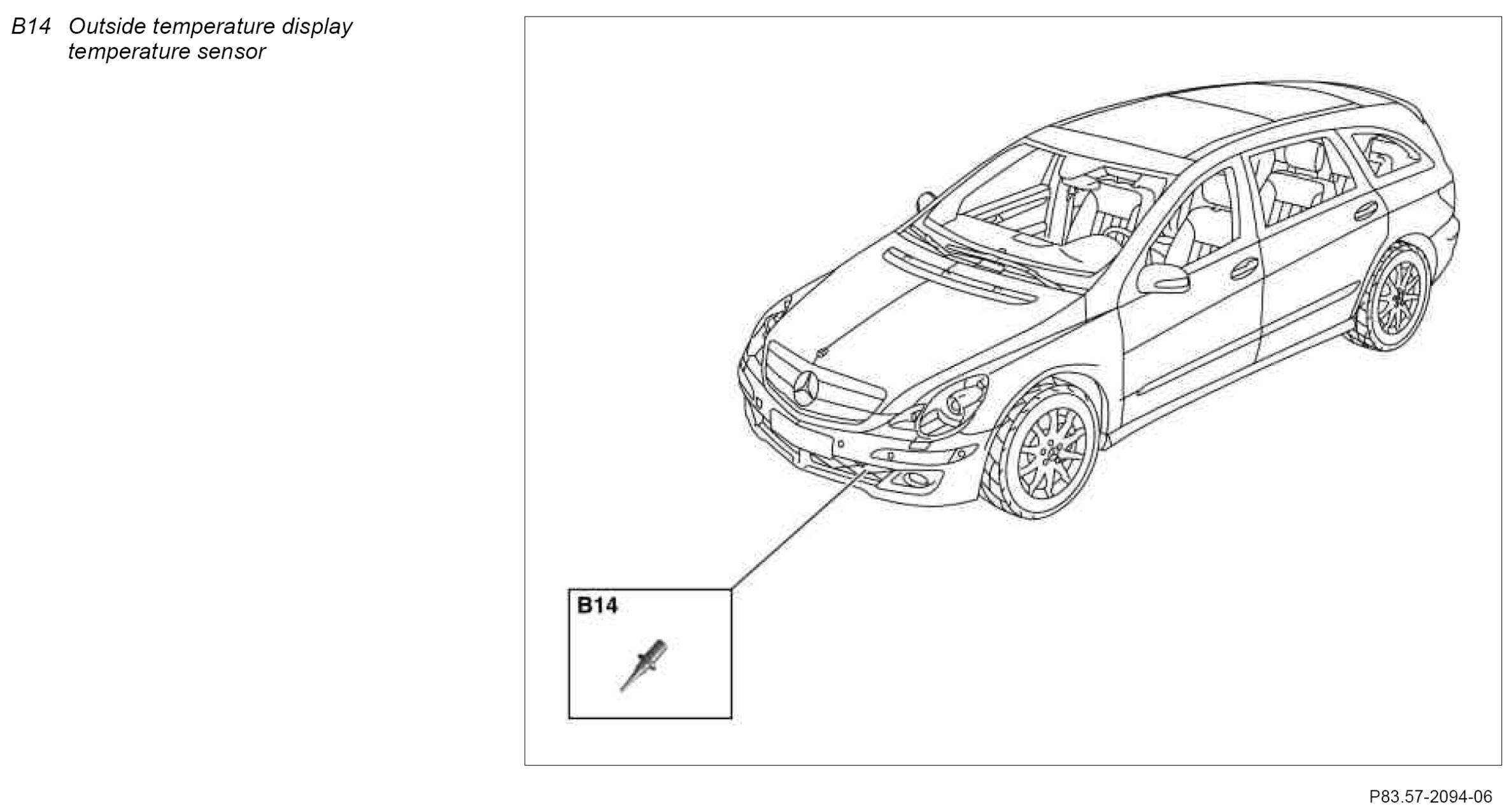

The temperature sensor is located on the left front bumper.

Task
To record the outside temperature.

Function
The temperature sensor changes its resistance depending on the outdoor temperature. It is read in by the instrument cluster (A1) and the reading is indicated on the multifunction display (A1p13).
