AR42.40-P-0820RT Remove/Install Left or Right Rear Axle Speed Sensor



AR42.40-P-0820RT Remove/Install Left or Right Rear Axle Speed Sensor

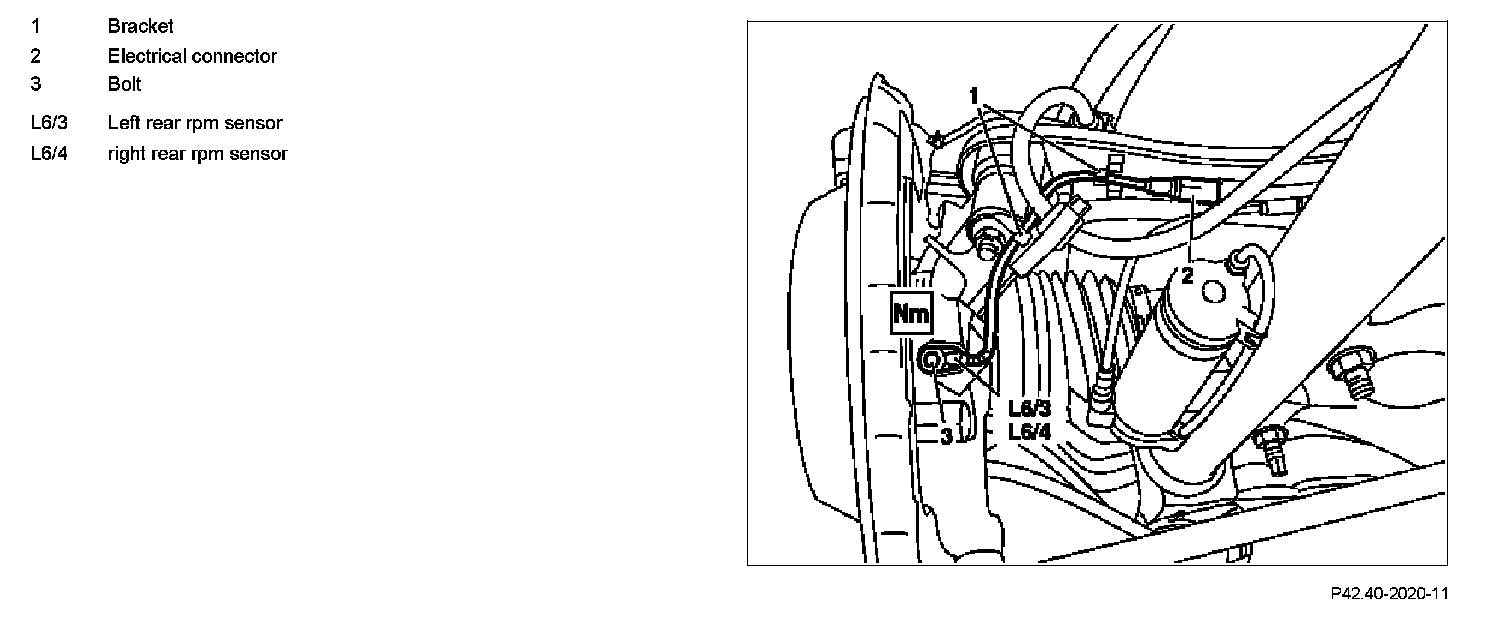

Component Identification:

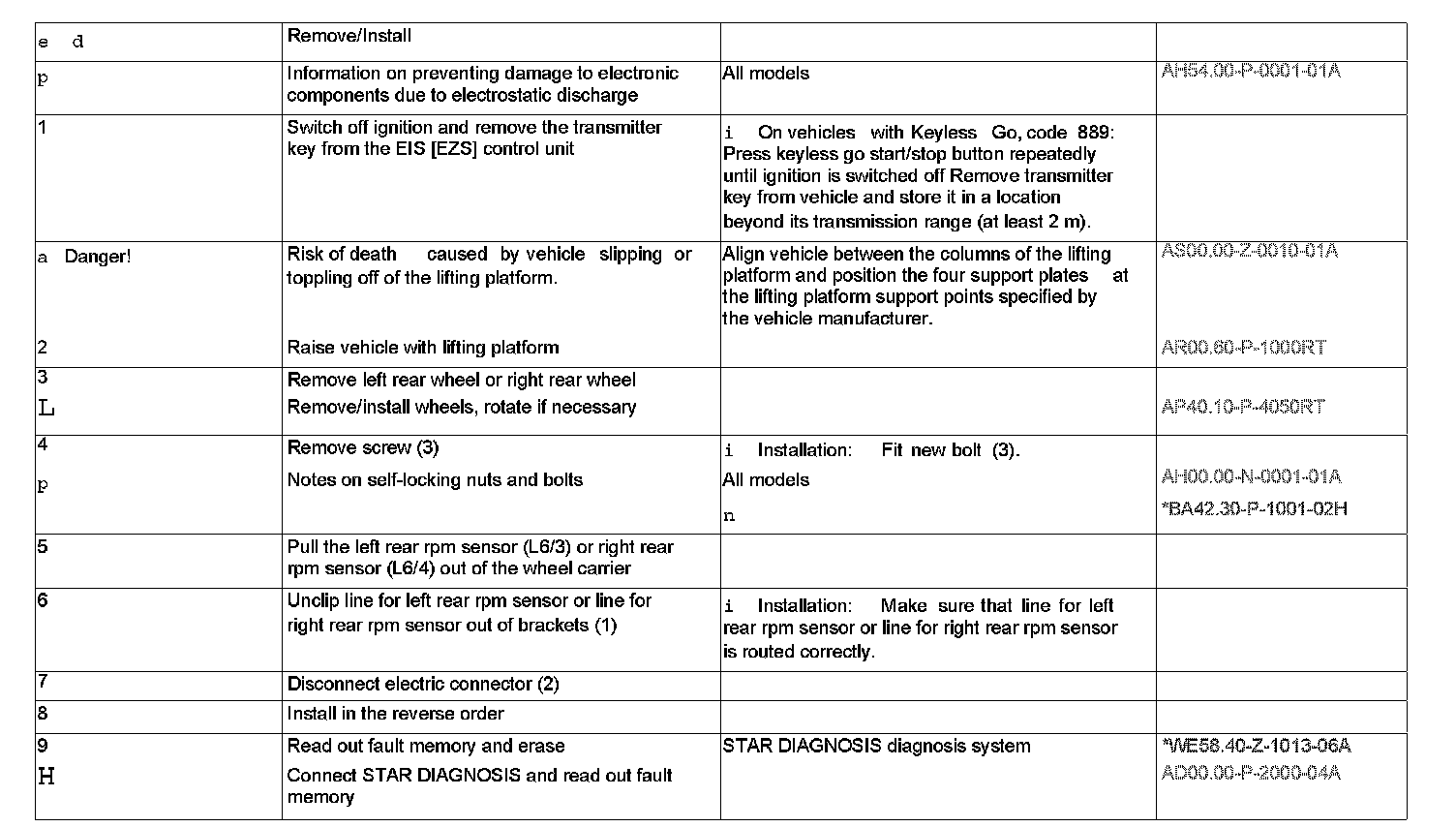

Steps 1 - 9:

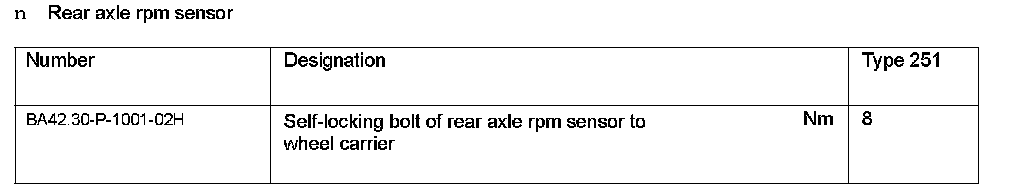

Rear Axle RPM Sensor:

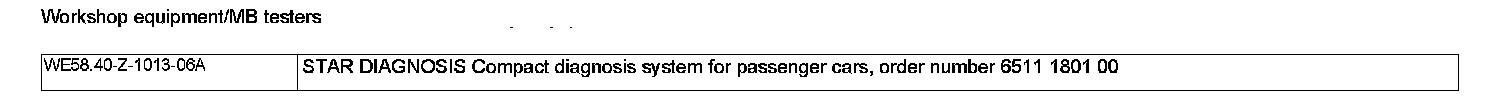

Workshop equipment/MB testers:
