AR42.30-P-0712RT Remove/Install Left or Right Front Axle RPM Sensor



AR42.30-P-0712RT Remove/Install Left or Right Front Axle RPM Sensor

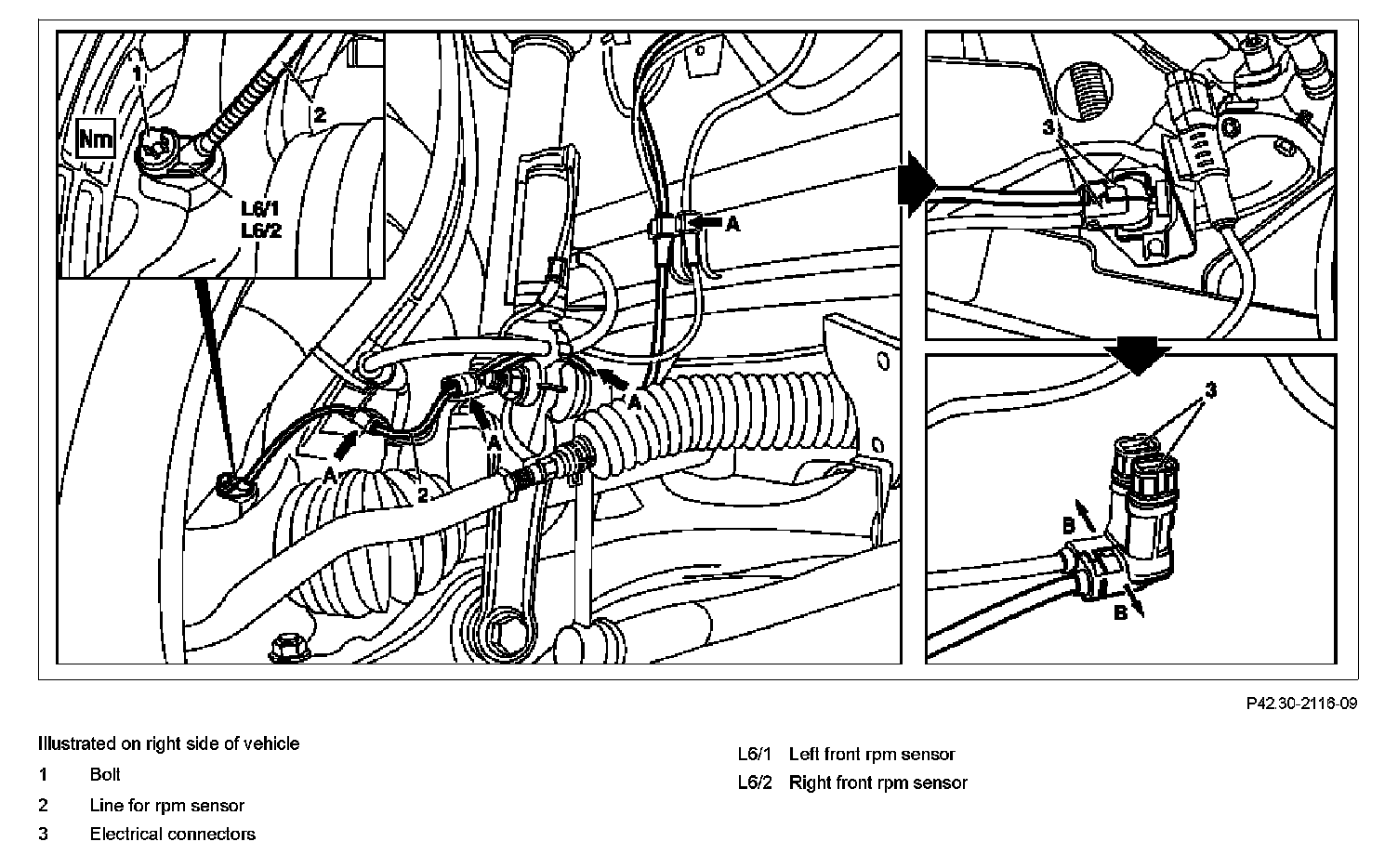

Component Identification:

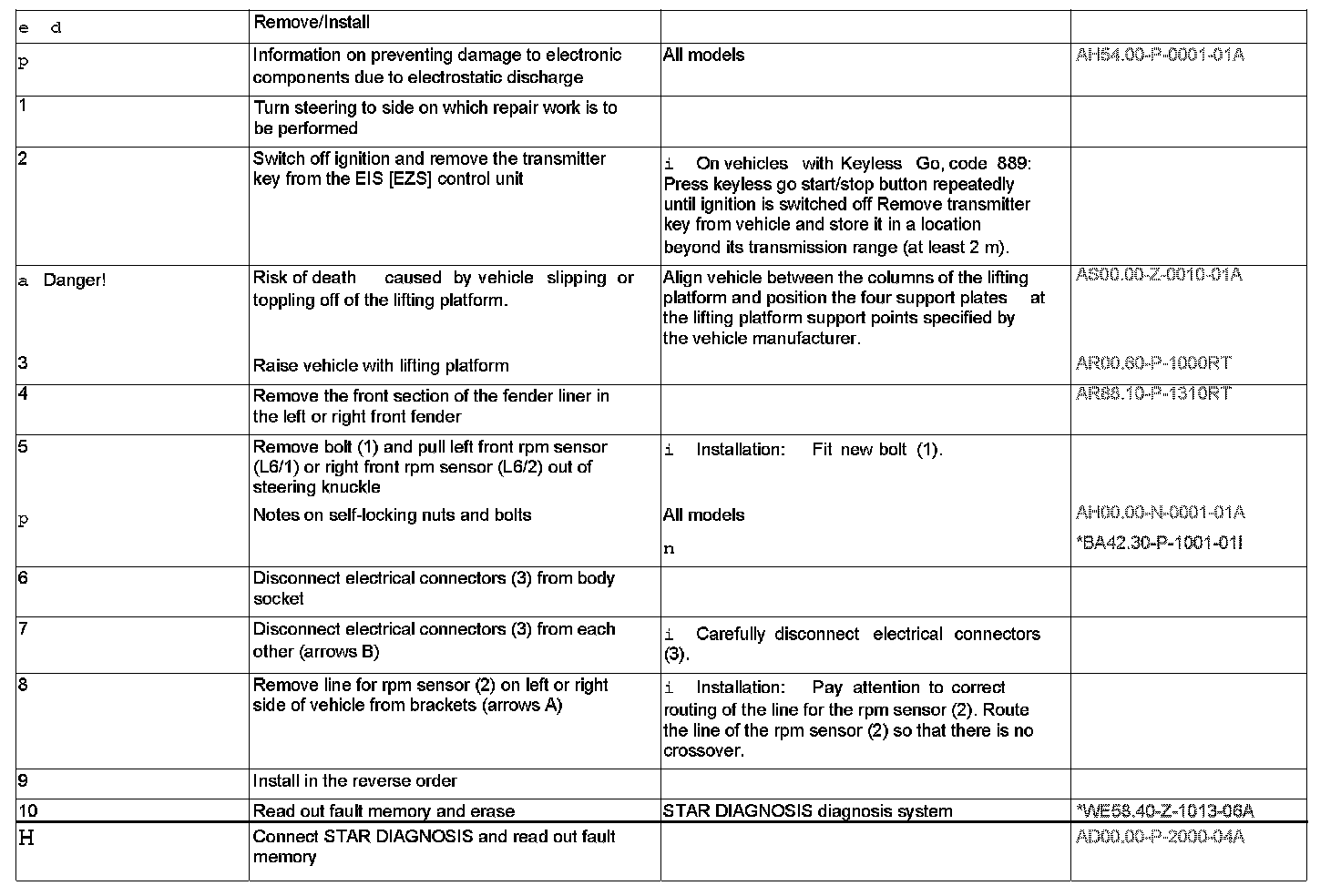

Steps 1 - 10:




Front Axle RPM Sensor:

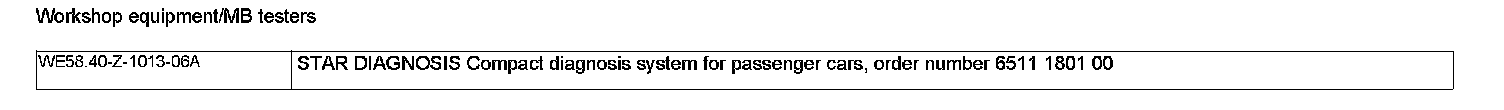

Workshop Equipment/MB Testers:
