Steering Angle Sensor: Service and Repair
AR46.10-P-0300RT Remove/install
steering angle sensor

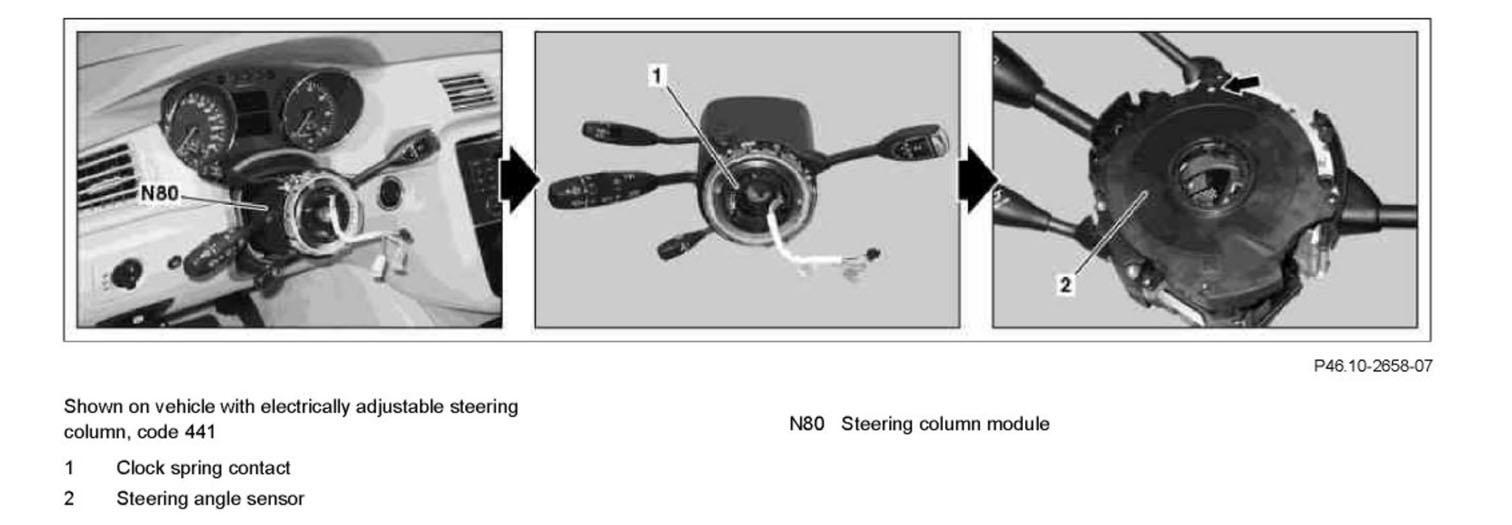

Component Identification:

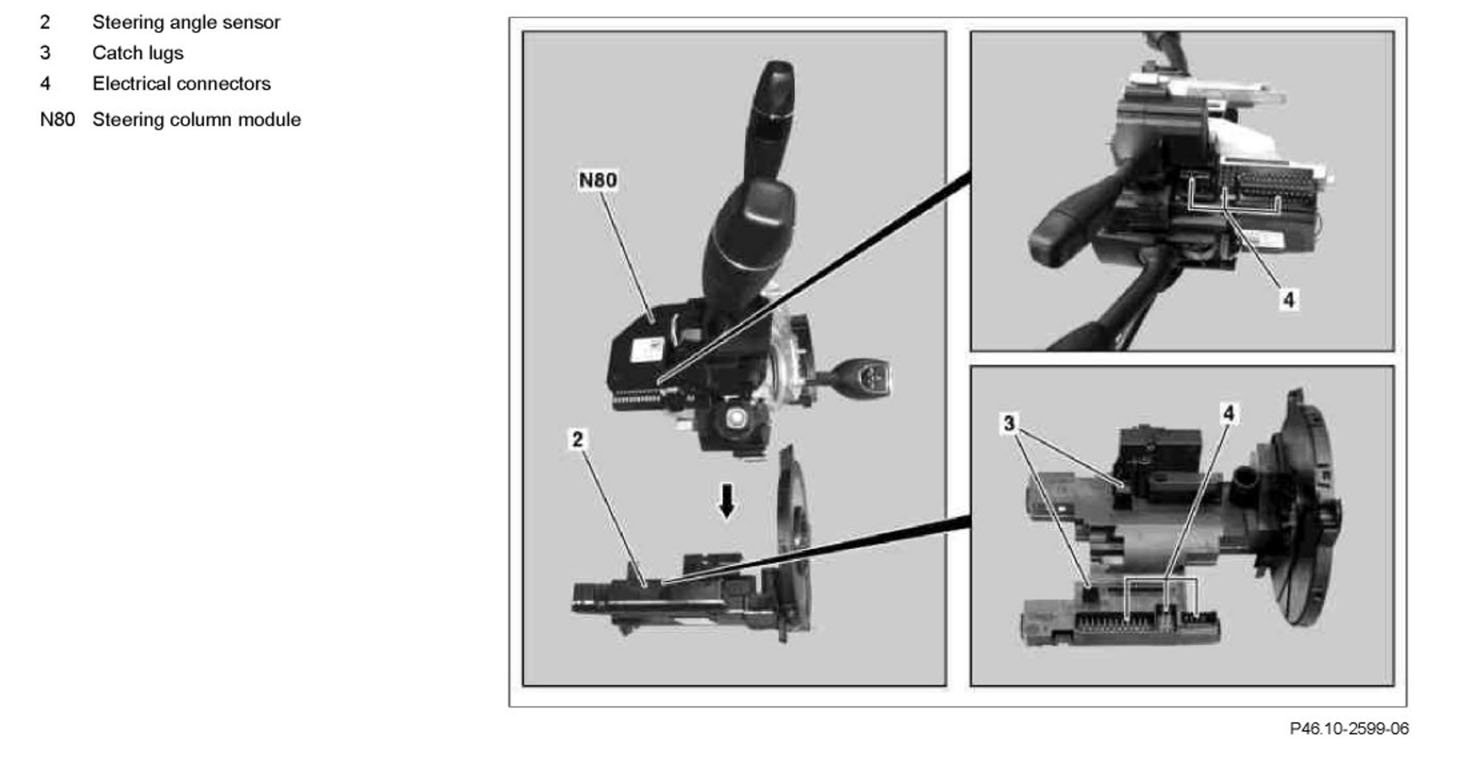

Component Identification:

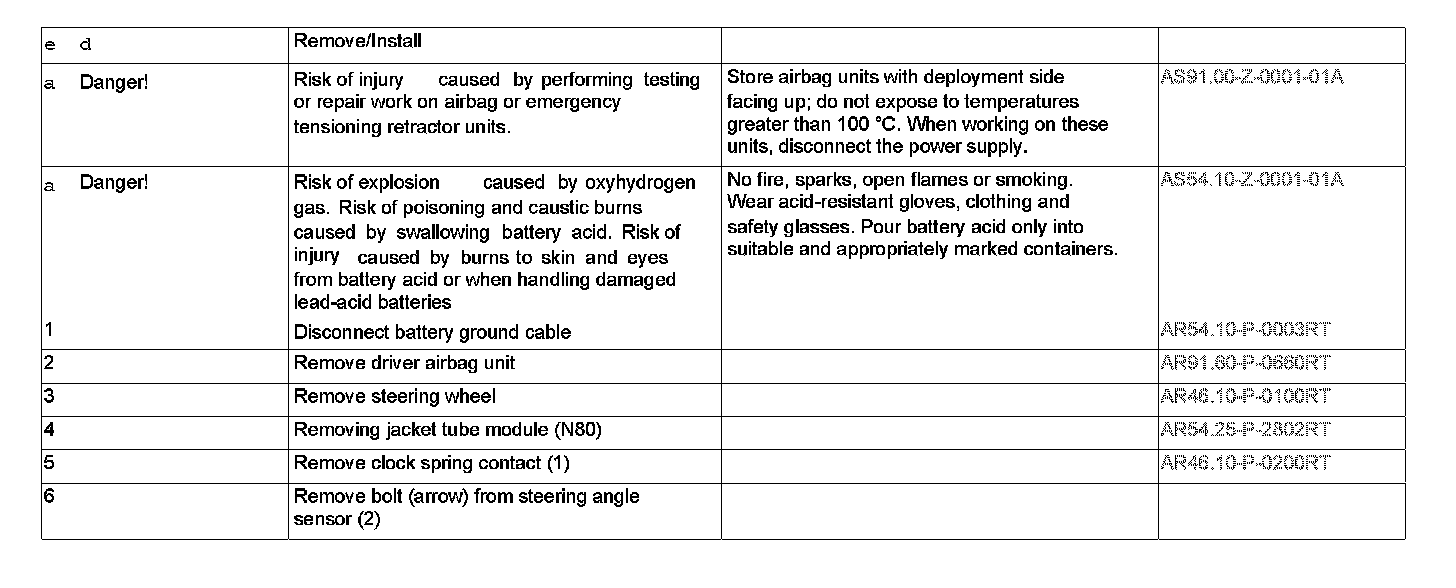

Steps 1-6:

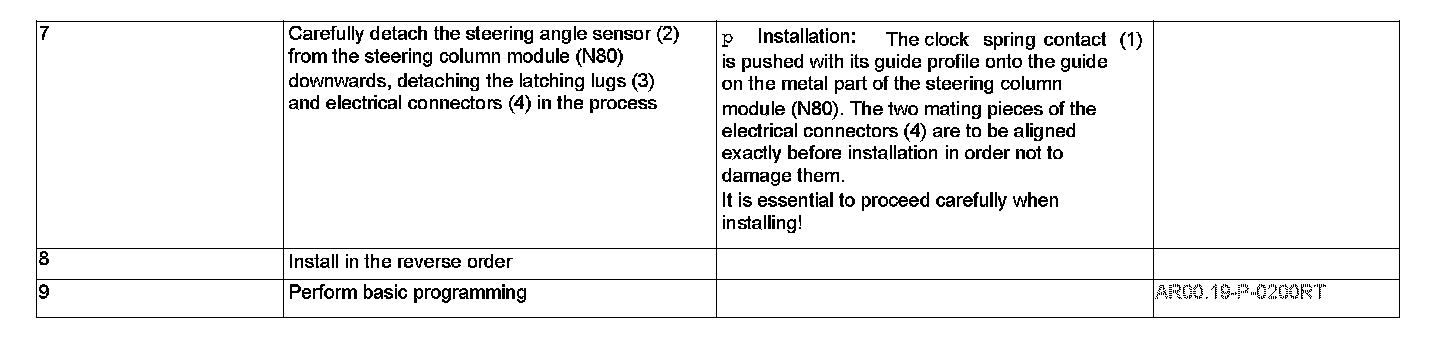

Remove/install Steps 7-9:
