AR72.20-P-3605RT Remove/Install Rear Door Closing System Switch



AR72.20-P-3605RT Remove/Install Rear Door Closing System Switch
- with CODE (890) Automatic rear-end door

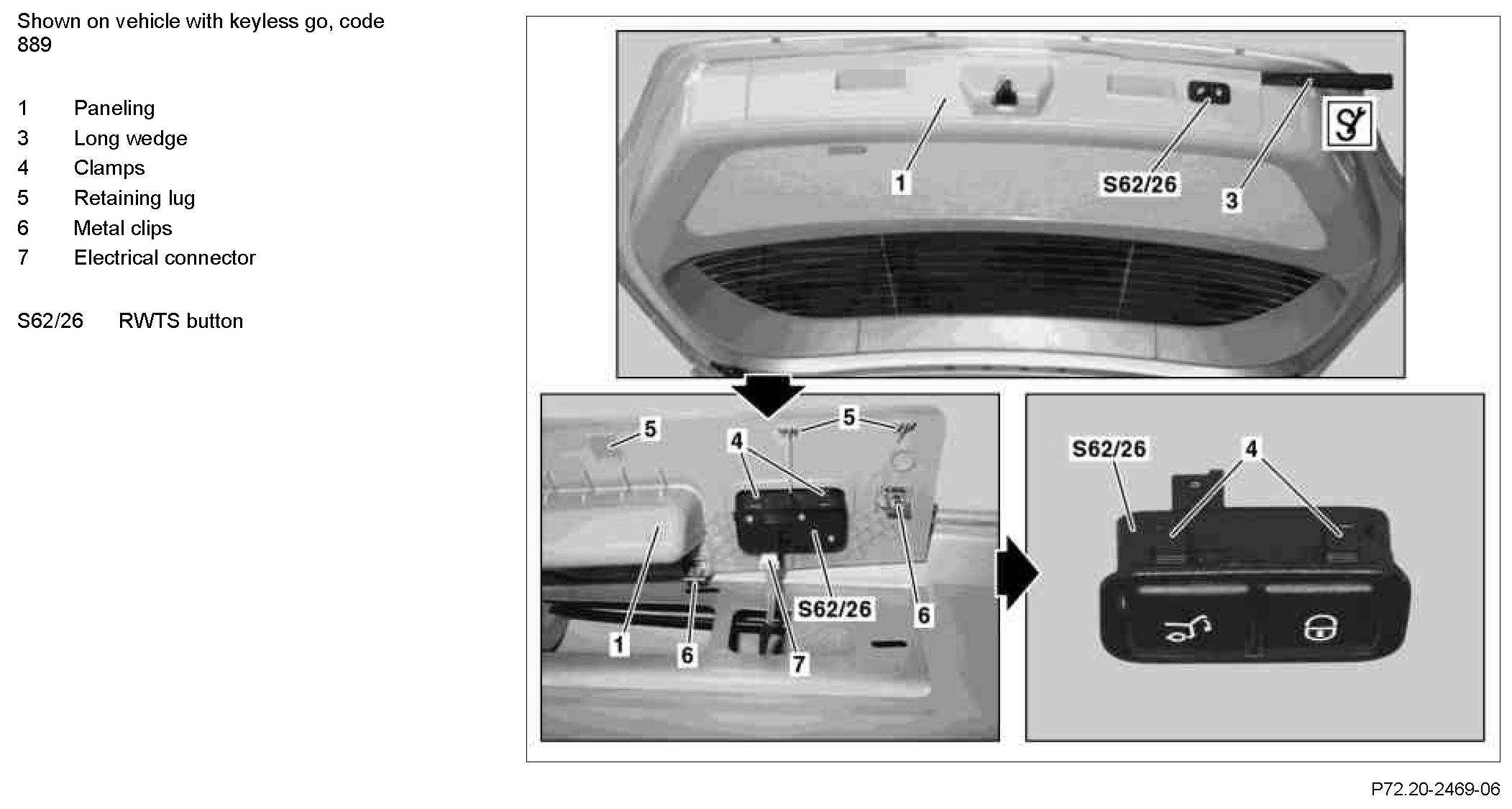

Component Identification:

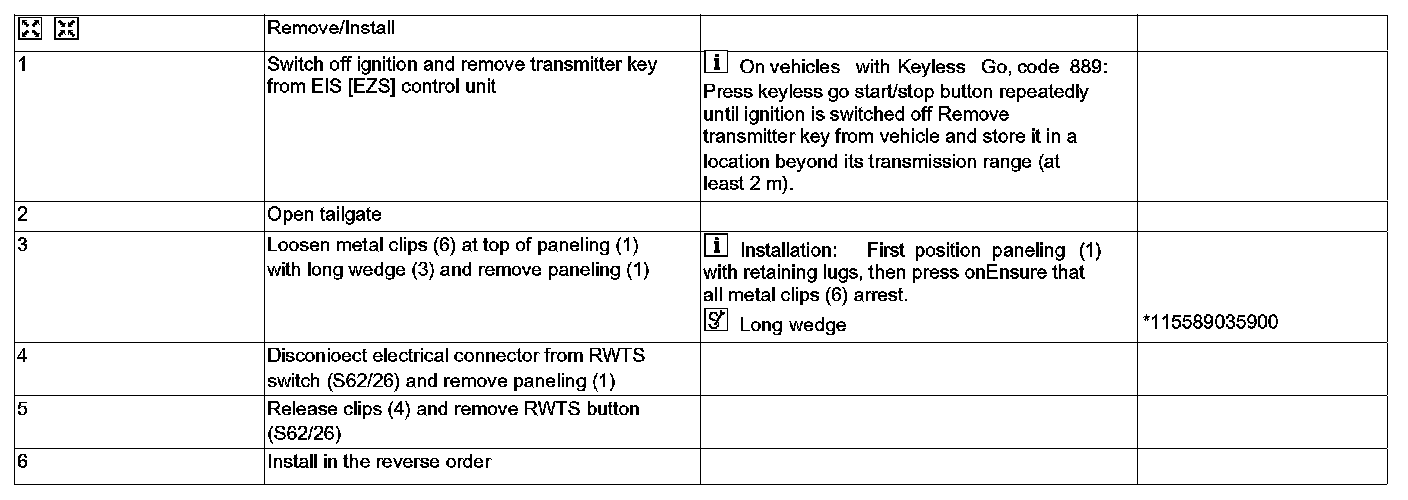

Steps 1 - 6:

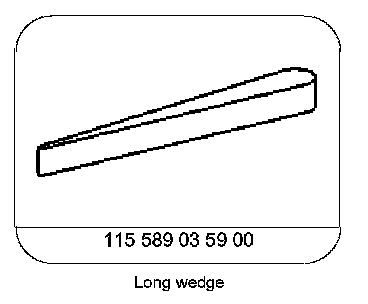

Special Tools:
